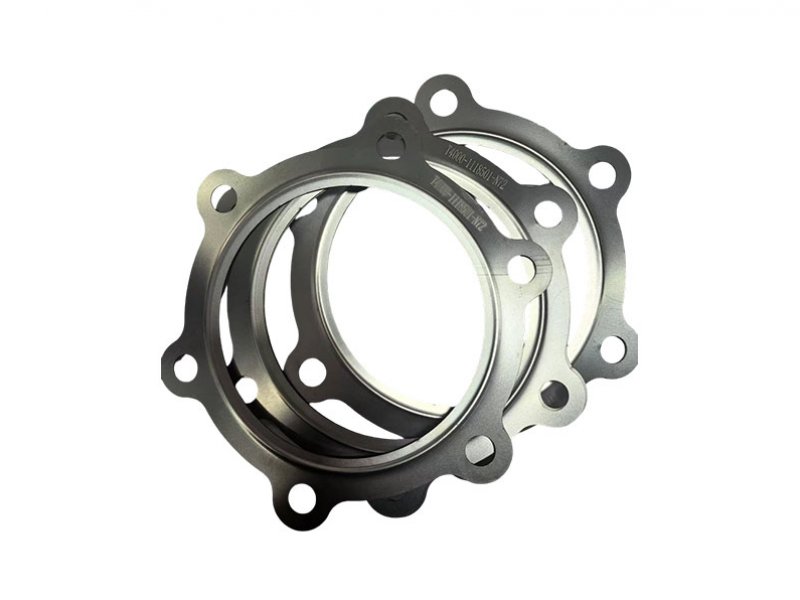

Turbine Rear Pipe Gasket — High-Temperature Turbo Exhaust Seal

Premium Turbine Rear Pipe Gaskets for Turbocharged Engines

A turbine rear pipe gasket (also called a turbocharger turbine outlet gasket) is a critical sealing component used to join the turbine exhaust outlet flange of the turbocharger to the exhaust or downpipe. It creates a tight, leak-proof connection between the turbocharger and exhaust system, ensuring efficient exhaust flow and optimal performance under high temperature and pressure conditions.

In turbocharged diesel engines, gasoline engines, and generator sets, the turbine rear pipe gasket helps maintain proper backpressure and prevent exhaust leaks, which is essential for engine efficiency and emissions control.

What Is a Turbine Rear Pipe Gasket?

The turbine rear pipe gasket is positioned between the turbocharger’s turbine housing outlet flange and the exhaust downpipe or rear exhaust pipe. It functions as a high-temperature seal that withstands intense heat, repeated thermal cycling, and exhaust gas pressure.

Without a proper gasket at this junction, exhaust gases can escape, leading to reduced turbine efficiency, increased noise, and potential engine performance issues.

Key Features & Benefits

✔ High-Temperature Resistance

Built from materials designed to tolerate extreme heat from exhaust gases, preventing leaks and gasket degradation over time.

✔ Precision Fit for Exhaust Flanges

Designed to match specific turbocharger outlet flange patterns for a secure, leak-free seal.

✔ Improved Exhaust Flow Efficiency

By maintaining a tight seal between turbo outlet and pipe, the gasket ensures efficient exhaust discharge, which supports engine performance and reduces backpressure.

✔ Durability under Thermal Cycling

Capable of enduring frequent heat-cool cycles without cracking, warping, or blowout.

More parts for genset

Typical Applications

Turbine rear pipe gaskets are essential components in:

• Turbocharged diesel engines

• Turbocharged gasoline engines

• Industrial generator engines with turbochargers

• Heavy-duty trucks and construction equipment

• Marine turbo systems

They are used wherever the turbocharger exhaust outlet connects to the exhaust or downpipe assembly, ensuring that exhaust gases are routed properly without leakage.

How It Works

The gasket creates a compressed seal between two flanged surfaces: the turbocharger turbine outlet and the exhaust pipe flange. When installed with bolts or studs, the gasket forms a tight seal that prevents exhaust gas escape while allowing smooth flow through the exhaust system.

Proper installation orientation and correct torque are important — incorrect gasket installation can disrupt exhaust flow and negatively impact turbo performance.

Symptoms of a Failing Turbine Rear Pipe Gasket

A failing or damaged turbine rear pipe gasket may exhibit:

• Squealing or hissing exhaust noises around the turbo outlet

• Visible exhaust leaks under the vehicle near the turbo/exhaust junction

• Decreased engine performance and throttle response

• Increased exhaust temperature and backpressure

These symptoms indicate that exhaust gases are escaping through the flange connection instead of traveling through the exhaust system, which can reduce fuel efficiency and engine output.

Installation & Maintenance Tips

✔ Always inspect the flange surfaces and gasket seats for flatness before installing a new gasket.
✔ Use bolts or studs with proper torque to avoid uneven compression.
✔ Replace gaskets during major turbo or exhaust system maintenance.
✔ Check for leaks after installation by listening for exhaust noise or using an exhaust gas detector.

Proper installation ensures an effective seal that supports consistent turbocharger and engine performance.

FAQ — Turbine Rear Pipe Gaskets

Q: What’s the difference between turbine gasket and other turbo gaskets?
A: A turbine rear pipe gasket specifically seals the connection between the turbine (exhaust) outlet flange and the downpipe/exhaust system. Other turbo gaskets may seal the inlet, compressor outlet, oil feed, or coolant lines.

Q: Can a damaged turbine gasket cause performance loss?
A: Yes — exhaust leaks at the turbine flange can reduce turbo efficiency, cause backpressure issues, and decrease overall engine performance.

Q: What materials are turbine rear pipe gaskets made from?
A: These gaskets are typically made from high-temperature steel, composite, or multi-layered metal materials designed to withstand extreme exhaust heat and pressure.
