Rocker Arm Shaft Assembly: Key Component for Optimal Engine Performance

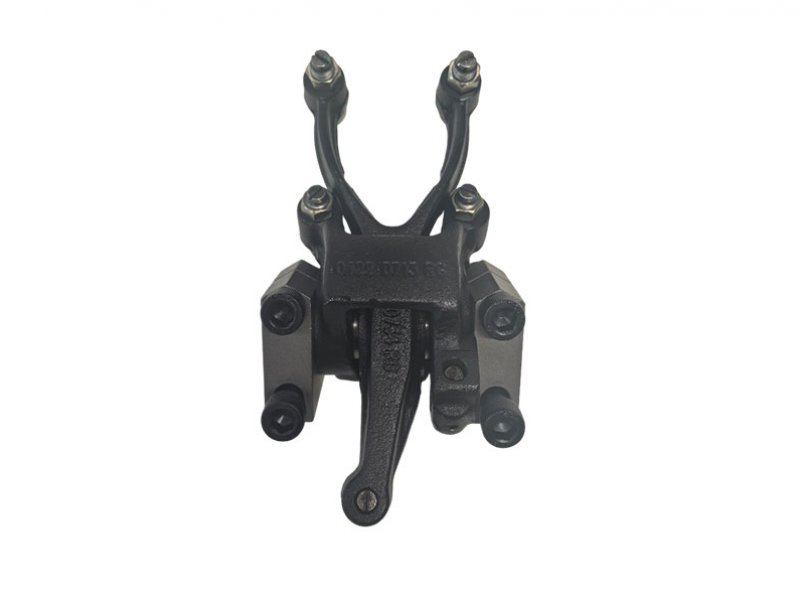

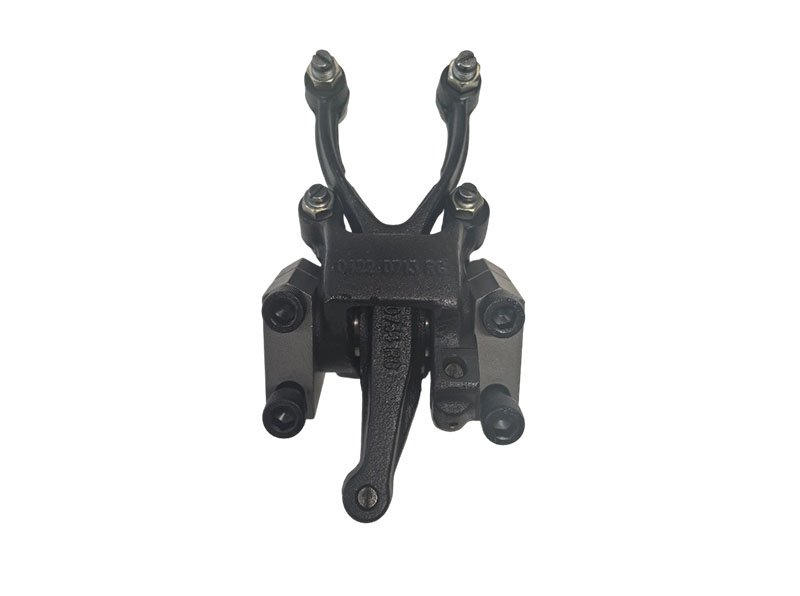

What is a Rocker Arm Shaft Assembly?

The rocker arm shaft assembly is an integral part of an engine’s valve train. It connects and supports the rocker arms, which are responsible for opening and closing the engine's intake and exhaust valves. By transferring the motion from the camshaft (or timing belt/chain) to the valves, the rocker arm shaft assembly plays a crucial role in controlling the flow of air and fuel into the engine and the expulsion of exhaust gases.

The rocker arm shaft assembly is typically mounted along the cylinder head and consists of a shaft that holds multiple rocker arms in place. It ensures proper alignment and rotation of the rocker arms, allowing for smooth operation and efficient valve timing.

Key Functions of the Rocker Arm Shaft Assembly

1. Valve Timing Control:
   The rocker arm shaft assembly directly affects the timing and movement of the engine's intake and exhaust valves. By transferring the rotational motion from the camshaft to the rocker arms, it ensures that the valves open and close at the correct times for optimal engine performance.

2. Supporting Rocker Arms:
   The rocker arm shaft assembly supports the rocker arms and ensures they remain in place during operation. It also allows the rocker arms to pivot correctly, enabling efficient valve operation.

3. Reducing Friction:
   The assembly helps reduce friction between the rocker arms and the cylinder head, which can otherwise lead to wear and tear on both components. By maintaining proper alignment and lubrication, the rocker arm shaft assembly contributes to smoother engine operation.

4. Durability and Longevity:
   The rocker arm shaft assembly is designed to be robust and durable, ensuring that it can withstand the high temperatures, pressures, and mechanical stresses present in the engine. This durability helps extend the lifespan of the entire valve train system.

Materials Used in Rocker Arm Shaft Assemblies

Rocker arm shaft assemblies are typically made from strong materials that can handle the wear and tear of constant operation. Common materials include:

1. Forged Steel:
   Forged steel is often used for the rocker arm shaft assembly due to its superior strength and resistance to fatigue. It ensures that the shaft can withstand the rotational forces exerted on it during engine operation.

2. Cast Steel:
   Cast steel is another commonly used material for rocker arm shafts. It provides good strength at a lower cost, making it ideal for standard production engines.

3. Aluminum Alloys:
   In some high-performance or lightweight engine designs, aluminum alloys are used for the rocker arm shaft assembly. Aluminum is lightweight and resistant to corrosion, making it ideal for performance engines where reducing weight is a priority.

4. Stainless Steel:
   Stainless steel is sometimes used for specific components in the rocker arm shaft assembly because of its excellent corrosion resistance, especially in engines exposed to harsh conditions or extreme temperatures.

How Does the Rocker Arm Shaft Assembly Work?

The rocker arm shaft assembly works by converting the rotational motion of the camshaft into the linear motion needed to operate the engine's intake and exhaust valves. Here's a step-by-step overview of how it functions:

1. Camshaft Motion: As the camshaft rotates, its lobes push against the lifters (or tappets) that are connected to the push rods. The push rods transmit this motion to the rocker arms.

2. Rocking Motion: The rocker arms are mounted on the rocker arm shaft assembly and pivot on the shaft as they are pushed by the push rods. This rocking motion opens and closes the engine’s intake and exhaust valves at the proper intervals.

3. Valve Control: The rocker arms ensure that the valves open and close in sync with the engine's power stroke. This controlled opening and closing of the valves is essential for maintaining the correct flow of air and fuel into the engine and exhaust gases out.

4. Efficiency and Performance: By maintaining precise valve timing and proper valve movement, the rocker arm shaft assembly helps optimize engine performance, fuel efficiency, and emissions.

Benefits of a Well-Maintained Rocker Arm Shaft Assembly

1. Improved Engine Efficiency:
   A properly functioning rocker arm shaft assembly ensures precise valve timing, which directly impacts engine performance. This contributes to more efficient fuel combustion, better throttle response, and improved power delivery.

2. Reduced Wear and Tear:
   The rocker arm shaft assembly helps minimize friction between the rocker arms and the cylinder head. With proper lubrication and alignment, it reduces the chances of excessive wear, which can lead to costly engine repairs.

3. Increased Engine Longevity:
   By reducing friction and ensuring that the rocker arms and valves operate smoothly, the rocker arm shaft assembly helps extend the overall life of the engine.

4. Smoother Operation:
   The proper functioning of the rocker arm shaft assembly helps to ensure that the engine runs smoothly. If the rocker arms are not properly aligned, or the shaft is damaged, it can lead to irregular engine operation and even failure of critical components.

Common Symptoms of a Faulty Rocker Arm Shaft Assembly

If the rocker arm shaft assembly becomes worn or damaged, it can lead to a range of symptoms. Some common signs that the assembly needs attention include:

• Valvetrain Noise: If you hear clicking or tapping sounds from the engine, especially at higher speeds, it may indicate a problem with the rocker arm shaft assembly. Worn or damaged components can cause the rocker arms to misalign, leading to excessive noise.

• Rough Idle: A faulty rocker arm shaft assembly can cause improper valve timing, which may lead to rough idling or a decrease in engine smoothness.

• Poor Engine Performance: If the valves aren’t opening and closing correctly, it can affect engine performance, leading to a lack of power, poor acceleration, or reduced fuel efficiency.

• Engine Misfires: Misfires can occur if the rocker arms are not operating the valves at the correct times. This can result in incomplete combustion, which can negatively affect engine performance.

• Excessive Exhaust Emissions: If the rocker arm shaft assembly is failing, it can lead to improper valve operation, which can increase the level of exhaust emissions.

How to Replace the Rocker Arm Shaft Assembly

Replacing a rocker arm shaft assembly involves a series of steps that require mechanical expertise. Here’s a general outline of the replacement process:

1. Disassemble the Valve Train: To access the rocker arm shaft assembly, the valve cover, push rods, and other related components must be removed. The engine will need to be cooled down before starting any work.

2. Remove the Old Shaft Assembly: The old rocker arm shaft assembly is carefully removed. This may require loosening bolts or fasteners that hold the shaft in place.

3. Inspect the Rocker Arms and Other Components: While replacing the rocker arm shaft assembly, it’s important to inspect the rocker arms, push rods, and camshaft for any signs of wear or damage. Replace any worn components as needed.

4. Install the New Rocker Arm Shaft Assembly: The new shaft assembly is installed in place of the old one, ensuring that it is properly aligned and securely fastened. Proper lubrication should be applied to the shaft to reduce friction.

5. Reassemble the Valve Train: After the new rocker arm shaft assembly is installed, the other components, including the rocker arms and push rods, are reassembled.

6. Test the Engine: Once everything is reassembled, start the engine and check for any abnormal noises, performance issues, or leaks. If everything operates smoothly, the replacement is complete.
