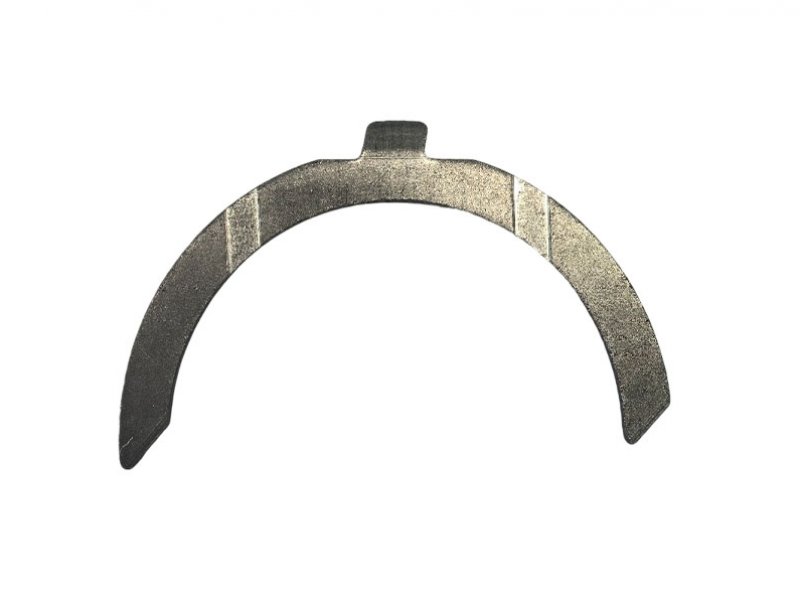

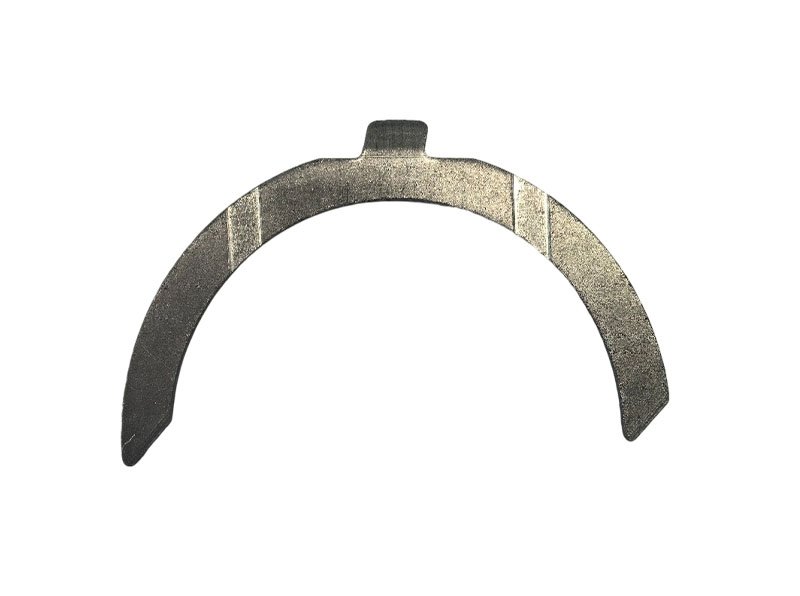

Thrust plate (lower)

Thrust Plate Lower: Essential Component for Engine Efficiency and Durability

What is a Thrust Plate Lower?

A thrust plate lower is a crucial component in an engine or transmission system, typically found in the lower end of the engine, near the crankshaft. Its primary function is to provide support and control the axial movement (or thrust) of the crankshaft during engine operation. By absorbing and distributing the forces exerted by the crankshaft, the thrust plate lower prevents damage to the engine block and ensures smooth operation.

This component is typically made from high-strength materials that can withstand the high temperatures and pressures found inside the engine. Depending on the application, thrust plates may vary in design, but they all share the essential role of stabilizing the crankshaft and preventing unwanted movement.

Key Functions of the Thrust Plate Lower

1. Crankshaft Support:
   The thrust plate lower helps to maintain the proper alignment of the crankshaft within the engine block. It ensures that the crankshaft does not shift axially (forward or backward) under the forces generated during engine operation.

2. Axial Load Distribution:
   In engines, particularly those with a large displacement or high power output, the crankshaft is subjected to significant axial loads. The thrust plate lower absorbs these forces and evenly distributes them across the engine block, reducing the risk of damage or wear to critical engine components.

3. Preventing Crankshaft Wear:
   By providing a stable surface for the crankshaft to rotate on, the thrust plate lower minimizes friction and wear on the crankshaft, prolonging the life of both the plate and the crankshaft itself.

4. Maintaining Engine Alignment:
   Proper crankshaft alignment is crucial for the overall performance and efficiency of an engine. The thrust plate lower ensures that the crankshaft remains in the correct position within the engine block, promoting smooth rotation and optimal engine performance.

Materials Used in Thrust Plate Lowers

Thrust plates are typically made from durable materials that are designed to withstand high heat, pressure, and mechanical stress. Common materials used for thrust plate lowers include:

1. Steel: Steel thrust plates are commonly used due to their excellent strength, wear resistance, and ability to withstand high temperatures. Steel is ideal for engines that operate under heavy loads and high-stress conditions.

2. Bronze: Bronze thrust plates are used in some applications for their ability to resist corrosion and wear. Bronze is often preferred in engines with a high level of friction or where corrosion could be a concern.

3. Aluminum: Aluminum thrust plates may be used in lighter-duty engines or applications where weight savings are important. Aluminum offers good resistance to wear but may not be suitable for high-load applications.

4. Composite Materials: In some modern engine designs, thrust plates may be made from composite materials, offering a balance between strength and weight, as well as improved resistance to heat and wear.

How Does the Thrust Plate Lower Work?

The thrust plate lower plays an important role in controlling the axial movement of the crankshaft. Here’s how it works in the engine:

1. Axial Movement Control: When the engine operates, forces are generated by the combustion process, causing the crankshaft to move in the axial direction (back and forth). The thrust plate lower absorbs and controls this movement, ensuring the crankshaft stays in the correct position.

2. Load Distribution: The thrust plate lower works in conjunction with thrust washers or bearings to evenly distribute the axial load exerted by the crankshaft. This helps prevent uneven wear on engine components and ensures that the crankshaft moves smoothly within the engine block.

3. Preventing Damage: The thrust plate lower helps protect the engine from potential damage caused by excessive axial movement. Without a thrust plate, the crankshaft could shift too far forward or backward, causing damage to the crankshaft, bearings, or the engine block.

Common Symptoms of a Faulty Thrust Plate Lower

A faulty thrust plate lower can lead to several issues in the engine, some of which can be severe if not addressed promptly. Here are some common symptoms of a worn or damaged thrust plate lower:

• Excessive Crankshaft Play: If the thrust plate lower is damaged or worn out, the crankshaft may have excessive axial movement (thrust play). This can cause the crankshaft to move too far forward or backward, affecting engine performance.

• Increased Engine Vibration: A worn thrust plate lower can cause uneven distribution of the axial load, leading to increased engine vibration. This can result in rough idle or noticeable vibrations during engine operation.

• Grinding Noises: If the thrust plate lower is not functioning properly, it may cause grinding noises as the crankshaft moves against other components in the engine. These noises are often a sign that the thrust plate is not providing adequate support.

• Loss of Engine Power: In extreme cases, a damaged thrust plate lower can lead to a loss of engine power due to improper crankshaft alignment or excessive friction.

How to Replace the Thrust Plate Lower

Replacing a thrust plate lower is a delicate procedure that requires careful disassembly of the engine components. Here’s a general overview of the process:

1. Engine Disassembly: The engine must be disassembled to access the crankshaft and the thrust plate lower. This often involves removing the engine oil pan, crankshaft pulley, and other surrounding components.

2. Remove the Old Thrust Plate Lower: Once the engine is disassembled, the old thrust plate lower can be carefully removed. It is important to inspect the surrounding components, such as the thrust bearings and washers, for signs of wear or damage.

3. Install the New Thrust Plate Lower: The new thrust plate lower is installed in the same position as the old one. It is crucial to ensure that the new plate is properly aligned and seated within the engine block.

4. Reassemble the Engine: After installing the new thrust plate lower, the engine is reassembled. All components should be reinstalled and torqued to the manufacturer’s specifications to ensure proper operation.

5. Test the Engine: Once the engine is reassembled, it should be started and tested for any signs of issues. If everything is functioning correctly, the replacement should be complete.

Frequently Asked Questions (FAQs)

Q: What happens if the thrust plate lower fails?

A: If the thrust plate lower fails, it can lead to excessive crankshaft movement, resulting in misalignment, increased engine vibrations, and potential damage to the crankshaft, bearings, and engine block. It can also lead to a loss of engine power and overall performance.

Q: How can I tell if my thrust plate lower is worn out?

A: Common signs of a worn-out thrust plate lower include excessive crankshaft play, unusual engine vibrations, grinding noises, or a loss of engine power. If you notice any of these symptoms, it’s important to inspect the thrust plate and replace it if necessary.

Q: Is it difficult to replace the thrust plate lower?

A: Replacing the thrust plate lower is a complex procedure that requires careful disassembly of the engine components. It is recommended that the replacement be performed by a professional mechanic to ensure proper installation and engine performance.

Q: How long does a thrust plate lower last?

A: With proper maintenance, a thrust plate lower can last the lifetime of the engine. However, if the engine is subjected to extreme conditions or lacks proper lubrication, the thrust plate may wear out prematurely.

Q: Can I drive with a damaged thrust plate lower?

A: It is not advisable to drive with a damaged thrust plate lower. If the thrust plate is failing, it can lead to significant engine damage, including misalignment of the crankshaft, excessive wear on bearings, and even complete engine failure in extreme cases.
