Main Features

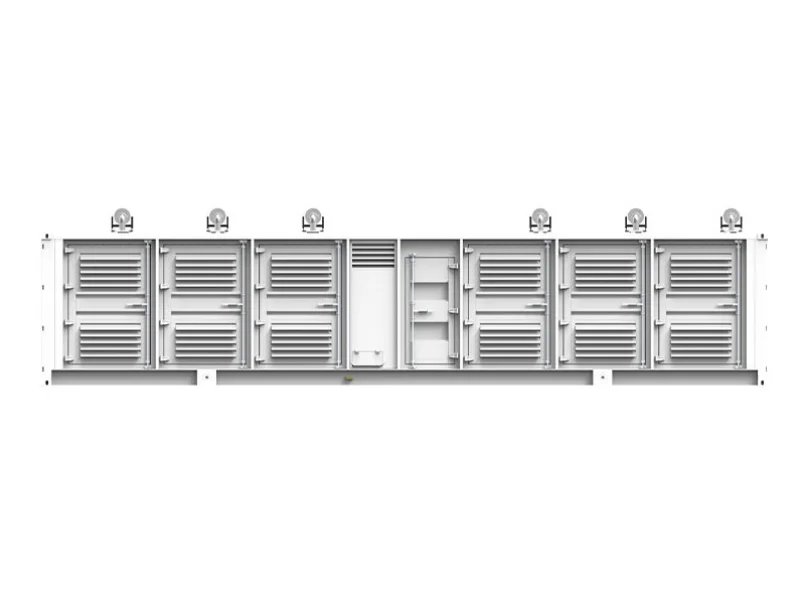

Rainproof Container Design
Standard 40ft high cube container with galvanized steel shell and polyurethane insulation.
Equipped with ventilation ducts, rainproof louvers, and maintenance doors for easy service access.
Fully suitable for outdoor environments (rain, snow, sand, or wind).

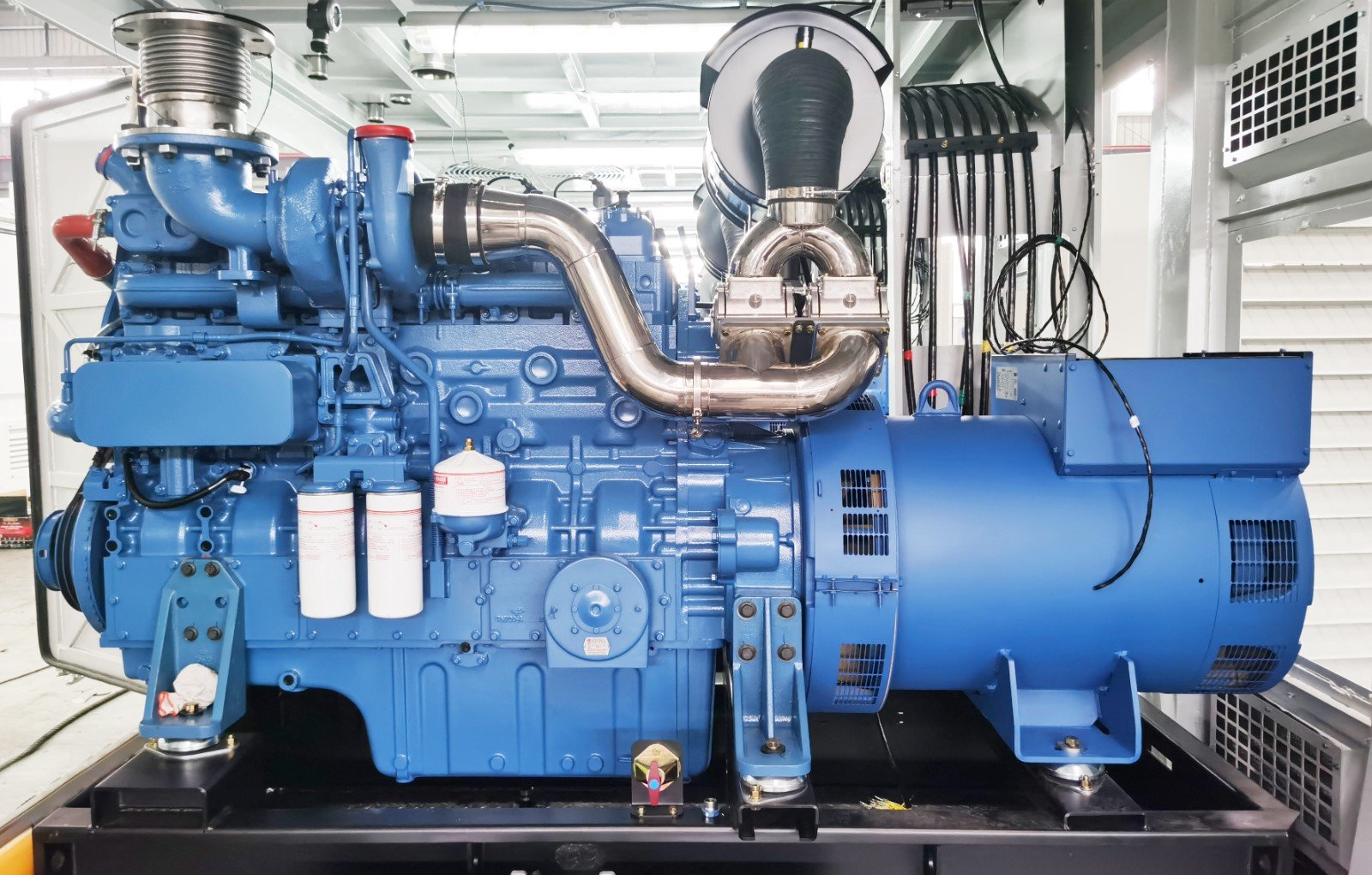

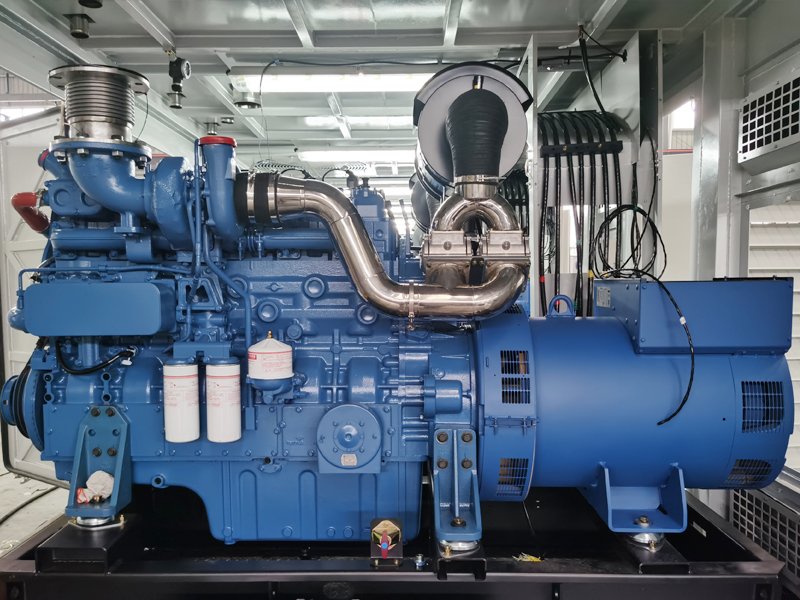

High-Efficiency Yuchai Engine
Engine Model: Yuchai YC6KN Series
Rated Power: 1000 kW (1 MW)
Fuel: Natural Gas / LNG / CNG / Biogas compatible
Electrical Efficiency: ≥ 37.5%, with low exhaust emissions and stable performance.
Intelligent Control System
Equipped with smart controller (DeepSea / SmartGen optional) for real-time monitoring.
Support parallel connection, remote monitoring, and automatic start/stop.
Protection functions: over/under voltage, overload, overspeed, gas pressure fault, emergency stop.
Low Operating Cost & Easy Maintenance
Natural gas fuel offers 30–40% lower operating cost than diesel.
Extended maintenance interval up to 1500 operating hours.
All routine maintenance points are easily accessible via side doors.
Features of Yuchai units:
1. Stable and reliable, with strong continuous operation capability:
Yuchai engines are known for their durability and are particularly suitable for long-term uninterrupted operation;
The unit structure is optimized, with good overload resistance, suitable for complex environments such as high temperature and high altitude.
2. Good fuel economy:
The engine has high thermal efficiency and low fuel consumption;
At the same power, the operating cost is 5-10% lower than that of imported brands.
3. Wide power range coverage:
The power range is from 20kW to 2400kW;
It can be used in civil, industrial, data centers, base stations, power stations, farms and other scenarios.
4. Adequate supply of accessories and convenient maintenance:
Yuchai has service outlets in many countries around the world;
The parts are highly versatile, easy to purchase and replace, and easy for maintenance personnel to use.
5. Fast power response and good starting performance:
It starts quickly and can carry full load within 30 seconds;
The load response time is short, suitable for use as an emergency power supply.
6. Complete categories and various forms:
Can be equipped with silent boxes, rain covers, trailers, power station containers, etc.;
Supports intelligent needs such as automatic switching, parallel operation, and remote monitoring
Noted:The product can provide special customization services. If you have any needs, please consult the manufacturer;
Product Parameters:
AC Alternator data | Gas engine data |
Generator Brand | Leroy Somer | Engine Brand | Yuchai |
Motor Model | LSA46.3 L10 | Engine Model | YC6KN |
Rated Voltage(V) | 544 | Engine type | Inline-6 cylinders-turbocharged |
Rated Power(H class)kW | 680 | Cylinder Bore x Stroke(mm) | 129mm×165mm |
Rated Capacity(H class)kVA | 625 | Displacement (L) | 12.9 |
Motor efficiency (%)/(400V) | 95 | Compression ratio | 11.5 |
Power factor | 0.8 | Rated output power (single) | 280kW/1500rpm |
Connection Methods | D/Y | Maximum lubricant consumption (g/kW.h) | ＜0.3 |
Rotor insulation class | H class | Minimum air intake (kg/h) | 1100 |
Rated temperature rise | F class | Ignition method | Electronically controlled single- cylinder independent high-energy ignition |
Excitation method | Brush-less | Fuel Control Method | Equivalent combustion, closed loop control |
Rotation speed (min- 1) | 1500 | Debugging method | Electronic commissioning |
Shell protection grade | IP23 | Cooling method | Forced water cooling |
Applications
Oil & Gas Fields – Use available natural gas for onsite power supply.
Mining Operations – Stable outdoor power under harsh dust and temperature conditions.
Industrial Parks – Low operating cost for distributed power systems.
Data Centers – Reliable backup power for 24/7 uptime.
Biogas Projects – Efficient utilization of renewable biogas energy.
Installation & Maintenance
Foundation: Ensure a flat, solid concrete base capable of supporting container weight.
Gas Supply: Stable pressure (5–15 bar depending on design).
Cooling System: Ensure air flow and unobstructed ventilation ducts.
Electrical Connection: Follow local standards for grounding and isolation.
Maintenance Interval: Inspect oil, coolant, and filters every 500 hours; overhaul every 1500 hours.
Remarks:
1.Engine Control System: ECI (American brand);
2.Throttle: Bosch (German brand);
3.Spark plug: NGK(Japanese brand);
4.Generator master controller: Comap (Czech brand); DEIF(Danish brand); DSE(England brnad);
5.Starting mode: electric start;
6.Overhaul period: 30000h;
7.Generator type: pure copper brushless, automatic voltage regulation;
8.Operation mode: grid-connected/parallel/isolated/automatic control, etc;
Frequently Asked Questions
Q1. Can this generator be used outdoors?
Yes. The rainproof container allows 24/7 outdoor operation under rain, wind, or snow.
Q2. Can it run on biogas or LNG?
Yes, the Yuchai engine is compatible with natural gas, LNG, CNG, and biogas fuels.
Q3. Is parallel operation supported?
Yes. Multiple units can be synchronized for higher total output.
Q4. What is the warranty period?
Typically 12 months or 1000 operating hours, whichever comes first.
Q5. What’s the delivery time?
Approx. 20–25 days after order confirmation.
