Key Features
Silent & Rainproof Enclosure ：Equipped with a sound-insulated canopy and waterproof louvers, designed for outdoor environments (rain, snow, wind, dust) with low noise levels.
Weichai Engine Power：Powered by a Weichai diesel engine rated at 1 MW, offering robust performance, fuel-efficiency, and long service intervals.
Outdoor & Industrial Use：Ideal for backup power, main power for remote sites, or rental applications.
Easy Maintenance & Control ：Includes modular design for quick access, and smart controller supporting parallel operation.
Low Operating Cost：Diesel fuel cost advantage, high reliability, long life cycle.
Applications
Industrial Backup Power – For factories and manufacturing plants requiring reliable standby power.
Mining & Construction Sites – Outdoor rugged environments benefit from weather-proof, silent units.
Oil & Gas Fields – Remote sites where weather-proof outdoor power is essential.
Data Centers & Commercial Facilities – As standby power with sound control requirements.
Rental & Mobile Power Solutions – Containerised or canopy-type unit for easy transport and deployment.
Product Parameters:

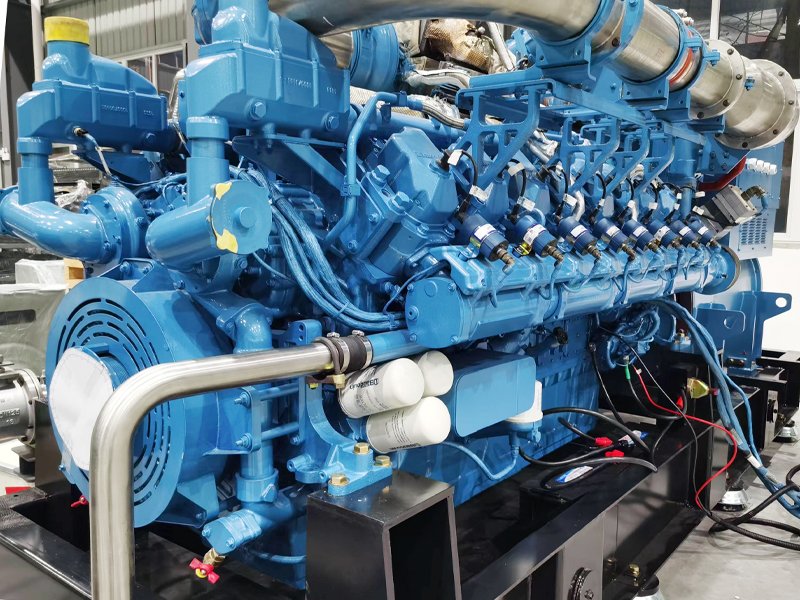

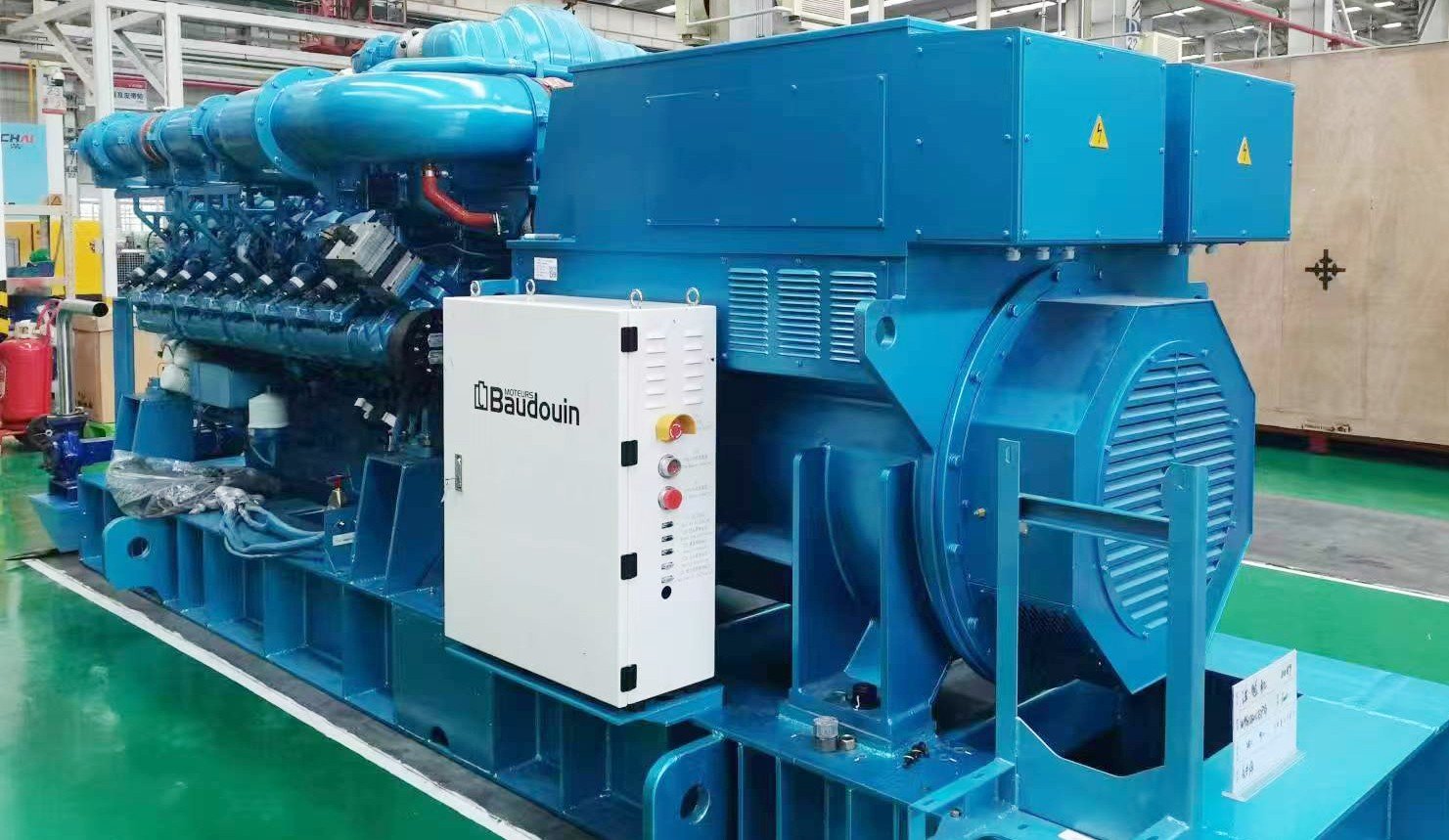

AC Alternator data | Gas engine data |
Generator Brand | Mecca | Engine Brand | Baudouin |
Motor Model | ECO43-2S4A | Engine Model | 12M33D950N |
Rated Voltage(V) | 480 | Engine type | V-type-6 cylinder-turbocharged |
Rated Power(H class)kW | 1000 | Cylinder Bore x Stroke(mm) | 127 mm×165 mm |
Rated Capacity(H class)kVA | 300 | Displacement (L) | 12.54 |
Motor efficiency (%)/(400V) | 93.5% | Compression ratio | 11 |
Power factor | 0.8 | Rated output power (single) | 1000kW/1500rpm |
Connection Methods | D/Y | Maximum lubricant consumption (g/kW.h) | ＜0.3 |
Rotor insulation class | H class | Minimum air intake (kg/h) | 1190 |
Rated temperature rise | F class | Ignition method | O-Electronically controlled single-cylinder independent high-energy ignition |
Excitation method | Brush-less | Fuel Control Method | Equivalent combustion, closed loop control |
Rotation speed (min- 1) | 1500 | Debugging method | Electronic commissioning |
Shell protection grade | IP23 | Cooling method | Forced water cooling |
Installation & Maintenance Guide
Foundation: Ensure a solid, level concrete base sized to accommodate the canopy unit and allow ventilation clearance.
Ventilation & Exhaust: Provide unobstructed airflow around the unit; ensure exhaust routing meets local regulations.
Fuel Supply & Control: Ensure diesel supply or optional natural gas–compatible system; install smart controller for monitoring and protection.
Maintenance Schedule: Routine checks every 500 hours (oil, filters, coolant), full service every 1500 hours or annually.
Environmental Conditions: Designed for outdoor use within ambient temperatures range –25 °C to +50 °C (verify local site).
Remarks:
1.Engine Control System: ECI (American brand);
2.Throttle: Bosch (German brand);
3.Spark plug: NGK(Japanese brand);
4.Generator master controller: Comap (Czech brand); DEIF(Danish brand); DSE(England brnad);
5.Starting mode: electric start;
6.Overhaul period: 30000h;
7.Generator type: pure copper brushless, automatic voltage regulation;
8.Operation mode: grid-connected/parallel/isolated/automatic control, etc;
Frequently Asked Questions (FAQ)
Q1. Can the unit be installed outdoors?
A1. Yes. The rainproof canopy and sound insulation are designed specifically for 24/7 outdoor operation.
Q2. Does this unit support parallel operation?
A2. Yes. Multiple units can be synchronized via the smart controller for increased capacity.
