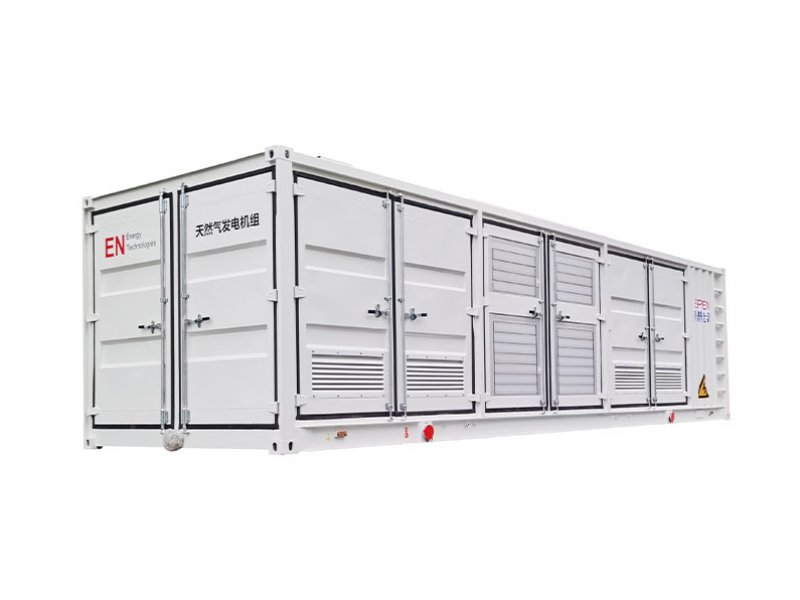

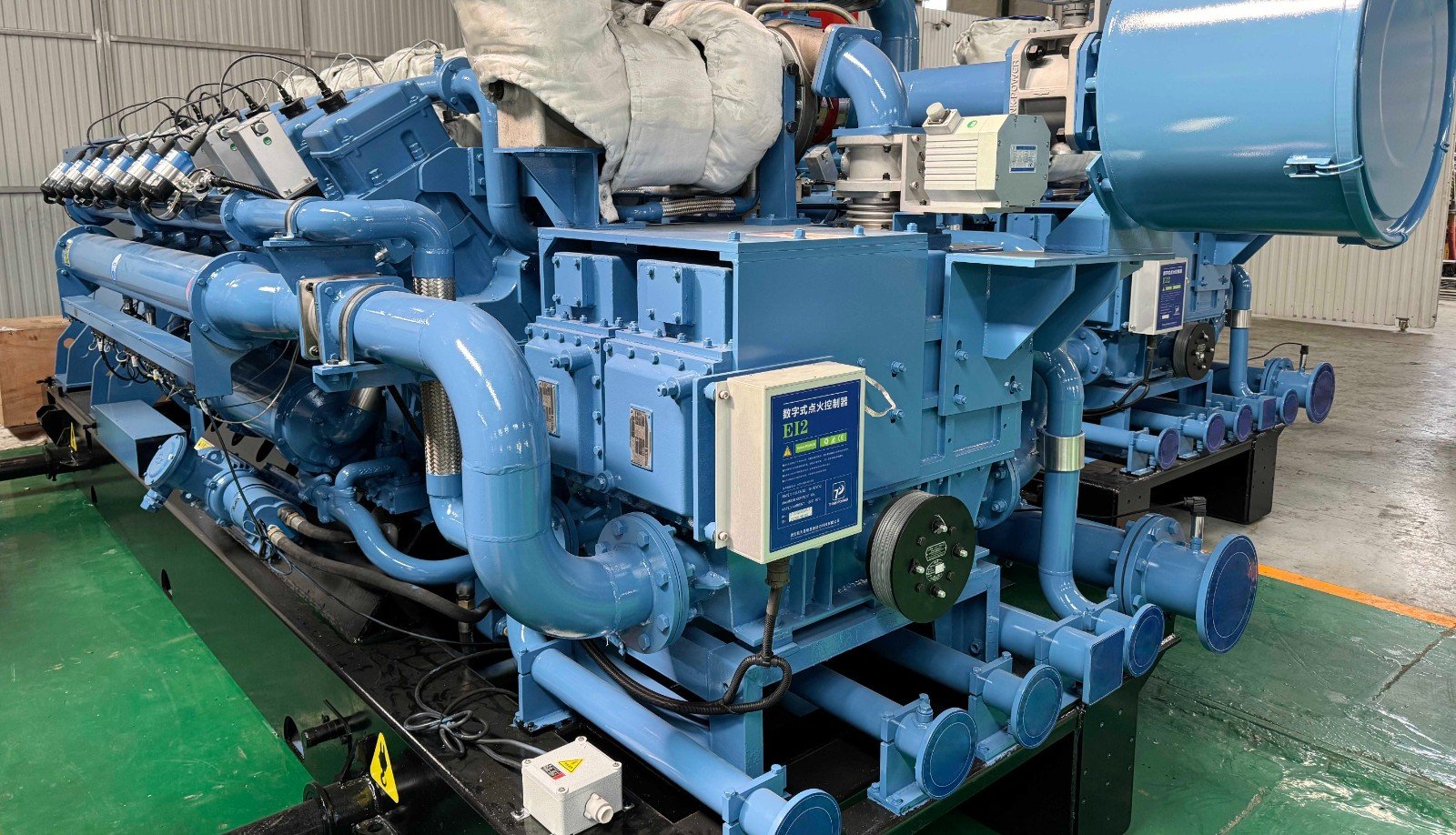

1200kw silent type biomass gas generator set

Main technical features:

Shunt Intake and Turbocharging Technology：

That means gas and air will be isolated with no contact to eliminate the generation of mixed gas before entering the cylinder. At the same time, the exhaust energy of the genset is used to turbocharge the gas and air respectively, which realizes the improvement of intake and the synchronous improvement of operation power and volume power and ensures safety operation.

Since 2018, it has been running safely and steadily for more than 30000 hours. The measured electric efficiency is more than 40%, that is, one cubic meter of exhaust gas generates one kilowatt-hour of electricity. There is no carbon monoxide leakage, no backfire and flash explosion, and the genset runs smoothly. Self consumption rate is less than 2%. The operation control of the genset is automatically adjusted with the change of gas.

Main technical parameters:

1200kW Silent type biomass generator  technical parameters:
