600kW Jichai Biogas Generator Power Plant – Efficient Solution for Organic Waste Energy

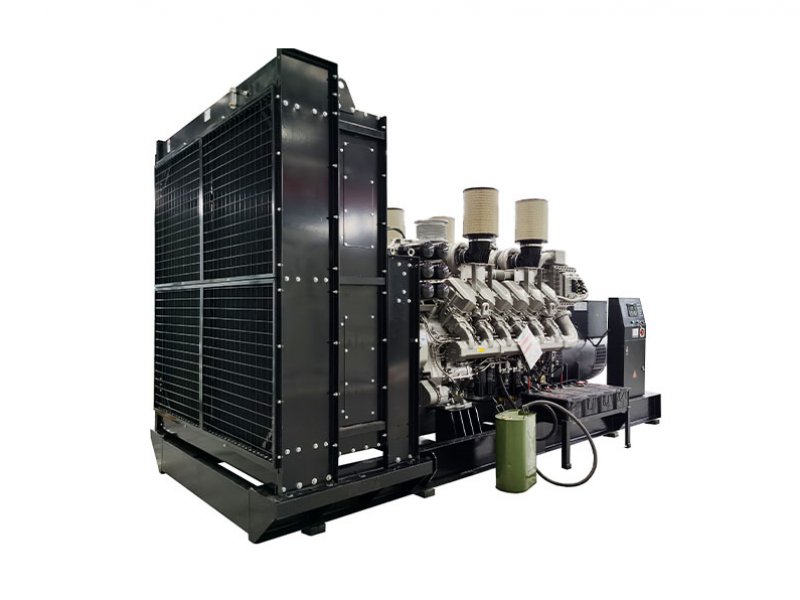

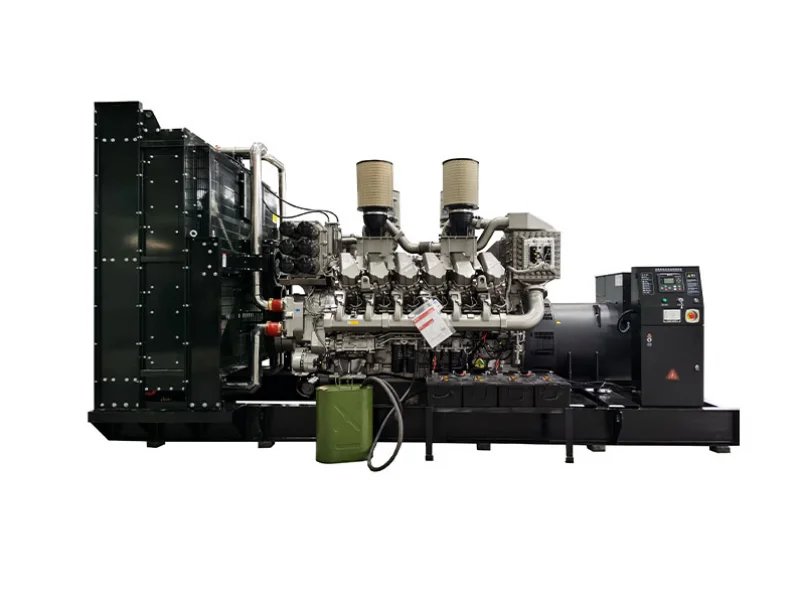

600kW Jichai Biogas generator power plant

Description

The 600KW Jichai Biogas Generator Power Plant is a high-performance, reliable energy solution designed to generate electricity from renewable biogas. Whether you're running an industrial operation, agricultural facility, or waste-to-energy project, this generator provides a consistent, cost-effective, and sustainable power source. Powered by the proven Jichai engine, known for its efficiency and durability, this generator helps reduce reliance on fossil fuels, lowers greenhouse gas emissions, and supports sustainability goals. Perfect for businesses looking to maximize energy output while minimizing operational costs.

Rated power:600kW

Rated current:725kVA

Continuous power:480kW

Methane content:>60%

Low heat value:Hu ≥ 16MJ/Nm

Frequency:50/60Hz

Voltage:0.4kV/0.6kV/10.5kV;

Operating noise:95dB(A)/7m

Weight:19000kg;

Deminsions(LxW×H):9000mm×3000mm×3750mm

Inquiry Now Add to Cart

Description

Product Features

High Power Output: With a rated output of 600KW, this generator is designed to meet the energy demands of medium to large-scale operations, making it ideal for industrial plants, agricultural operations, and waste-to-energy facilities.
Jichai Engine Technology: Powered by a robust Jichai engine, known for its fuel efficiency, low maintenance, and long-lasting performance, even in the most demanding environments.
Biogas Fuel Flexibility: The 600KW Jichai Biogas Generator can run on a variety of biogas fuels, including methane from agricultural waste, landfill gas, and other organic waste sources, providing a flexible, renewable energy option.
Eco-Friendly: This generator reduces greenhouse gas emissions by utilizing biogas, a renewable fuel, to generate power, contributing to cleaner energy production and helping businesses meet environmental sustainability goals.
Low Operating Costs: Designed for high fuel efficiency, the Jichai engine minimizes fuel consumption, reducing energy costs and increasing long-term savings. The low maintenance requirements further contribute to overall operational cost reduction.

Product parameters

AC Alternator data		Gas engine data
Generator Brand	JIALI	Engine Brand	JICHAI
Motor Model	IFC6	Engine Model	12V190ZDT1-2
Rated Voltage(V)	600	Engine type	V-12 cylinders-turbocharged
Rated Power(H class)kW	600	Cylinder Bore x Stroke(mm)	190mm×210mm
Rated Capacity(H class)kVA	857	Displacement (L)	71.5
Motor efficiency (%)/(400V)	94	Compression ratio	11
Power factor	0.7	Rated output power (single)	660kW/1500rpm
Connection Methods	D/Y	Maximum lubricant consumption (g/kW.h)	＜1
Rotor insulation class	H class	Minimum air intake (kg/h)	3020
Rated temperature rise	F class	Ignition method	Electronically controlled single-cylinder independent high-energyignition
Excitation method	Brush-less	Fuel Control Method	Equivalent combustion, closed loop control
Rotation speed (min- 1)	1000	Debugging method	Electronic commissioning
Shell protection grade	IP23

Applications

Industrial Applications: Perfect for industrial facilities that require a reliable and sustainable power source. This generator is ideal for manufacturing plants, chemical processing, and other energy-intensive industries.
Agricultural Operations: Supports agricultural facilities that produce biogas from organic waste such as manure and crop residues. It provides an eco-friendly and cost-effective solution for on-site power generation.
Waste-to-Energy Projects: The Jichai Biogas Generator is an excellent choice for waste-to-energy facilities, where organic waste is converted into clean electricity, reducing landfill waste while providing renewable power.
Off-Grid Power Generation: This generator is ideal for off-grid locations, including remote farms or industrial plants, where access to the power grid is limited or unavailable.

Environmental Benefits

Reduction of Greenhouse Gas Emissions: The generator helps mitigate climate change by utilizing biogas, which reduces methane emissions—a potent greenhouse gas—compared to traditional fossil fuels.
Sustainable Power Generation: The Jichai Biogas Generator supports a shift to renewable energy by using biogas, a clean and renewable fuel, reducing reliance on non-renewable energy sources.
Low Emissions: Designed with environmental standards in mind, the engine operates with low emissions, ensuring compliance with international regulations and contributing to a cleaner environment.

Energy Efficiency and Economic Benefits

Cost-Effective Operation: The 600KW Jichai Biogas Generator is highly fuel-efficient, helping to minimize operating costs and make it an affordable energy source for medium to large-scale operations.
High ROI: Due to its low fuel consumption and high efficiency, the generator offers a strong return on investment, delivering long-term savings in both fuel and maintenance costs.
Long-Term Savings: The Jichai engine's durability and minimal maintenance requirements ensure long-term operational savings, reducing downtime and repair costs over the generator's lifespan.

Frequently Asked Questions (FAQ)

Q: What types of biogas can be used with this generator?

A: The 600KW Jichai Biogas Generator can run on various types of biogas, including methane from agricultural waste, landfill gas, and organic waste, making it a versatile and sustainable energy solution.

Q: How efficient is the fuel consumption?

A: The generator is designed to be highly fuel-efficient, ensuring that you get the most energy out of each cubic meter of biogas. Fuel consumption varies depending on the biogas quality and operating conditions.

Q: Can this generator be used for off-grid applications?

A: Yes, the 600KW Jichai Biogas Generator is ideal for off-grid locations, including remote farms and industrial plants, where access to the power grid is limited or unavailable.

Q: What is the expected lifespan of the generator?

A: The Jichai engine is built to last, with proper maintenance ensuring a lifespan of 15+ years, making it a long-term investment for businesses looking for reliable power generation.
