Product Name:1000kw Deutz Natural gas generator set power station
This series of products uses Huchai Deutz engines, which use German technology to develop and produce.
Engines, generators, and control system components are all made of first-line domestic and foreign brands.
Core Advantages
Parallel Operation & Scalability
Five units operate in parallel, enabling flexible load sharing, redundancy and high system reliability.
Because of parallel operation, one unit can be shut down for maintenance while others keep running → minimal downtime.
Future expansion is feasible: the control system facilitates adding more units.
Huachai-Deutz Gas Engine Technology
Built under Deutz license, Huachai-Deutz engines provide advanced gas engine platform.
Optimised for natural gas, with lean-burn technology, electronic control and high efficiency.
The use of V12 configuration ensures high output power, smoother operation and lower vibrations.
Clean & Efficient Fuel Usage
Natural gas fuel means lower CO₂, NOx and particulate emissions compared to diesel.
Extended maintenance intervals due to cleaner combustion.
Cost savings on fuel and maintenance improve total cost of ownership.

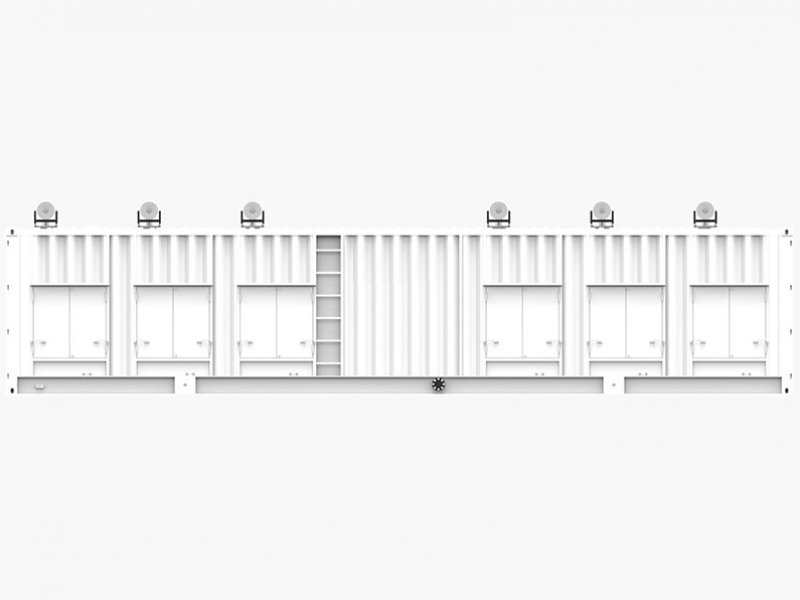

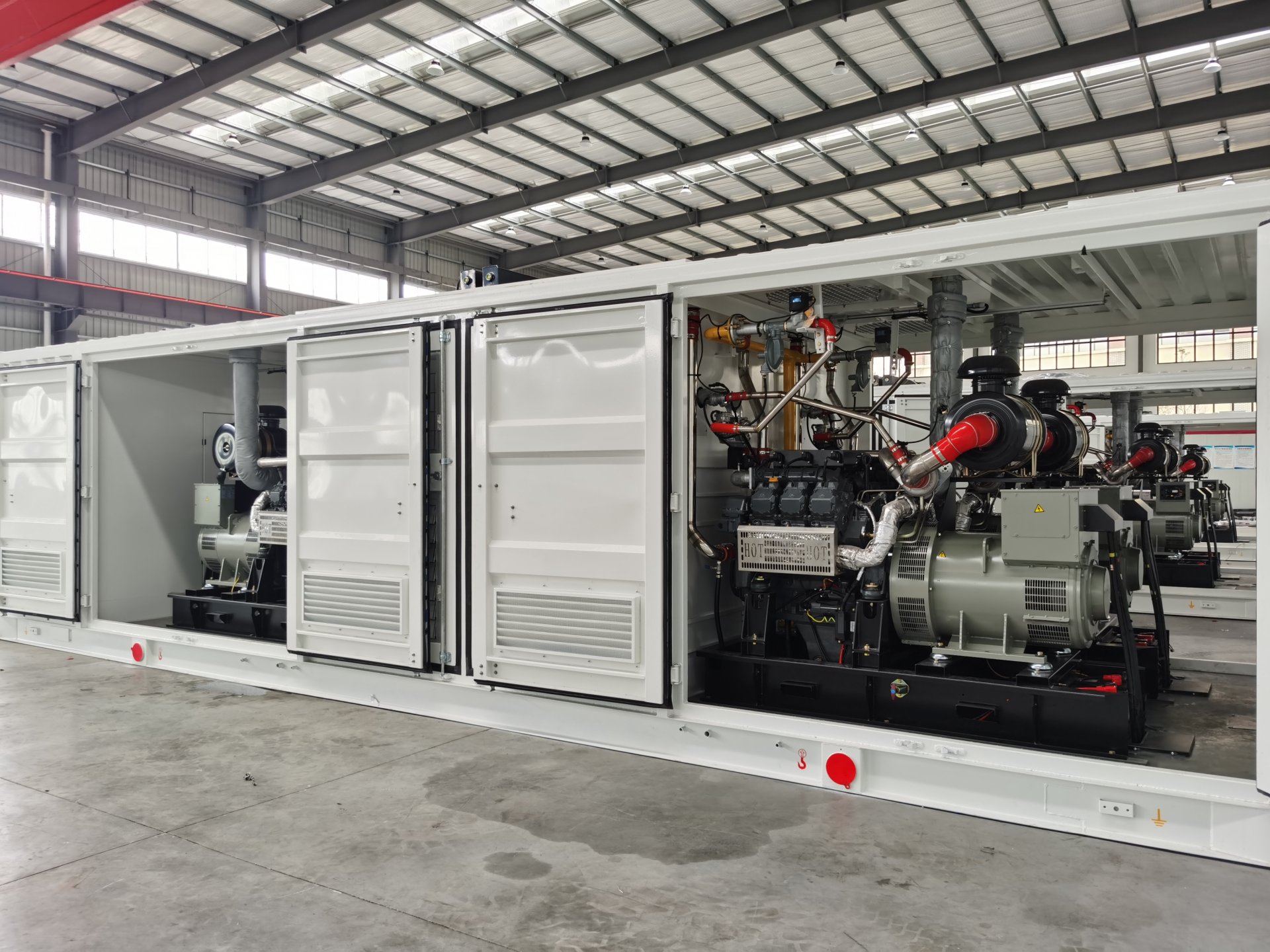

Modular Containerised / Outdoor Design
The system is delivered in modular units (containerised or open canopy) enabling faster installation and commissioning.
Each unit pre-tested, synchronised and configured for plug-and-play.
Weather-proof, sound-insulated enclosure suited for outdoor environments, industrial parks and remote sites.
Intelligent Monitoring & Control
Advanced controller (SmartGen, ComAp) supports real-time monitoring, fault diagnostics, remote data transmission, and parallel load management.
Provides visibility into fuel consumption, runtime hours, maintenance triggers and system status.
Features of Deutz units:
1. The unit is small in size and good at container-type modular use. It can be freely assembled, paralleled, and adjusted according to the actual load.
2.The equipment is easy to install, connect, and relocate to meet the needs of different project types.
3. The engine is relatively stable, with good sudden load performance, and can supply the required power in a short time without long preheating.
4. Good power generation efficiency, 6-cylinder performance reaches 38%, 12-cylinder performance reaches 40%
5. Strong fuel adaptability: ethane, propane, butane and other multi-component mixed gases can be used, and the explosion-proof performance is enhanced.
6. Stable power supply: In online standby mode, when a single machine fails and protection load reduction/shutdown occurs, the power supply system automatically adjusts the load to ensure normal power consumption.
7. Strong environmental adaptability: It can operate normally in dust, high temperature, low temperature, high humidity and other environments, and the reliability is greatly improved.
8. Cloud platform remote monitoring system can be equipped: We'll check the operation of the equipment online(customer permitted), inform the hidden dangers in advance, and train customers to use the remote cloud inspection service.
9. Low maintenance cost: The equipment adopts an independent cylinder head, and the maintenance cycle of the maintenance parts on the top of the cylinder head is 16,000 hours.
Noted:The product can provide special customization services. If you have any needs, please consult us.
Product Parameters:
AC Alternator data | Gas engine data |
Generator Brand | Mecca | Engine Brand | Huachai-Deutz |
Motor Model | ECO38 1L4C | Engine Model | HC6V132 |
Rated Voltage(V) | 400 | Engine type | V-bank-6 cylinders-turbocharged |
Rated Power(H class)kW | 240 | Cylinder Bore x Stroke(mm) | 132mm×145mm |
Rated Capacity(H class)kVA | 300 | Displacement (L) | 11.9 |
Motor efficiency (%)/(400V) | 93.5 | Compression ratio | 11 |
Power factor | 0.8 | Rated output power (single) | 300kW-1500rpm/1800rpm |
Connection Methods | D/Y | Maximum lubricant consumption (g/kW.h) | ＜0.3 |
Rotor insulation class | H class | Minimum air intake (kg/h) | 1150 |
Rated temperature rise | F class | Ignition method | Electronically controlled single-cylinder independent high-energyignition |
Excitation method | Brush-less | Fuel Control Method | Equivalent combustion, closed loop control |
Rotation speed (min- 1) | 1500/1800 | Debugging method | Electronic commissioning |
Shell protection grade | IP23 | Cooling method | Forced water cooling |
Applications
Industrial parks & heavy-industry power supply：Suitable for high-energy-consumption scenarios such as steel, cement, and chemical industries.
Oil & gas production sites：Utilizes associated gas or pipeline gas for on-site power generation.
Large commercial complexes & data centres：Ensures continuous operation of critical systems.
Distributed energy systems / micro-grids：Parallel-connected architecture facilitates scalability and modular deployment.
Remote power generation & island grids：Suitable for remote mines, offshore platforms, islands, and similar locations.
Remarks:
1.Engine Control System: ECI (American brand);
2.Throttle: Bosch (German brand);
3.Spark plug: NGK(Japanese brand);
4.Generator master controller: Comap (Czech brand); DEIF(Danish brand); DSE(England brnad);
5.Altermator: Mecca (Italian brand); Stamford (American brand); Leroy Somer (French brand);
6.Starting mode: electric start;
7.Overhaul period: 36000h~60000h;
8.Generator type: pure copper brushless, automatic voltage regulation;
9.Operation mode: grid-connected/parallel/isolated/automatic control, etc;
Frequently Asked Questions (FAQ)
Q1：How is load balancing managed in the 5-unit parallel system?
A1：The controller automatically allocates loads to each unit and monitors their status to maintain balance and prevent over-loading any single unit.
Q2：Can this system be expanded beyond 5 units?
A2：Yes, the system is designed for future expansion; the control cabinet supports additional units.
Q3：Is the unit convertible to associated gas or biogas?
A3：Customization is possible. If the gas composition is stable and meets methane requirements, a tailored solution can be provided.
