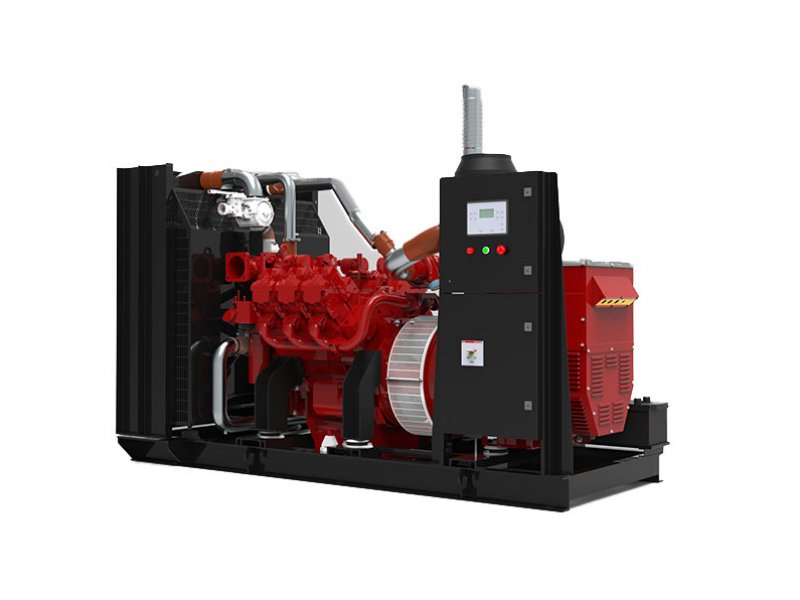

Product Name:250kw Deutz Natural gas generator set power generation energy equipment
This product series features Huchai Deutz engines at its core, drawing upon the essence of German research, development and manufacturing expertise. Key components of the generator sets—including engines, alternators and control systems—are meticulously selected from leading domestic and international brands, ensuring outstanding performance and dependable quality.
Natural Gas Power Generation Units: Application Domains and Core Value
Natural gas power generation units, owing to their high efficiency, flexibility, and clean operation, have become a key solution for achieving sustainable energy supply across numerous industries.
1. Public Utilities and Energy Sector
Peak Shaving: Leveraging the rapid start-up and flexible load-shedding capabilities of natural gas units, these systems respond swiftly to grid peak and off-peak demands. They serve as an ideal peak shaving power source for the grid, ensuring stable electricity supply.
Distributed Energy Resources / Combined Heat and Power (CCHP): Widely deployed in urban campuses, data centres, and commercial complexes. Through the simultaneous generation of cooling, heating, and electricity, overall energy utilisation efficiency exceeds 80%, substantially enhancing energy performance.
Base Load Power: In regions abundant in natural gas resources with relatively low costs, these units serve as primary power sources, delivering long-term, reliable foundational electricity support.
2. Industrial Manufacturing Sector
Captive Power Stations: Provide stable, cost-effective electricity to high-energy-consumption industries such as chemicals, ceramics, glass, and food processing. This reduces reliance on external grids and substantially lowers operational costs.
Combined Heat and Power (CHP): Utilises residual heat from electricity generation to produce steam or hot water for industrial processes. This enables cascading energy utilisation, maximising overall energy savings.
3. Commercial, Infrastructure & Transportation
Commercial & Infrastructure: Emergency and backup power for critical facilities including commercial complexes, hospitals, hotels, and airports. Ensures uninterrupted operation of life support systems and core functions during mains power failures.
Transportation / Marine Power: LNG-powered vessels utilise natural gas generator sets for propulsion or auxiliary power, representing a key direction in the shipping industry's clean energy transition.
Case Studies
These examples demonstrate natural gas generator sets' high reliability and exceptional energy efficiency across diverse applications:
Shanghai Disney Resort: Utilises natural gas combined cooling, heating and power (CCHP) systems to supply the majority of electricity, cooling and heating for the entire resort, exemplifying efficient energy provision for large complexes.
Guangzhou University Town Distributed Energy Station: One of South China's largest distributed energy projects, delivering clean, reliable power to the expansive campus.
Large Hospitals and Data Centres: Commonly equipped with high-power natural gas emergency generators to ensure continuous, stable operation of servers and critical life support systems during extreme conditions.
Features & Benefits of Deutz units:
I. Flexibility & Deployment

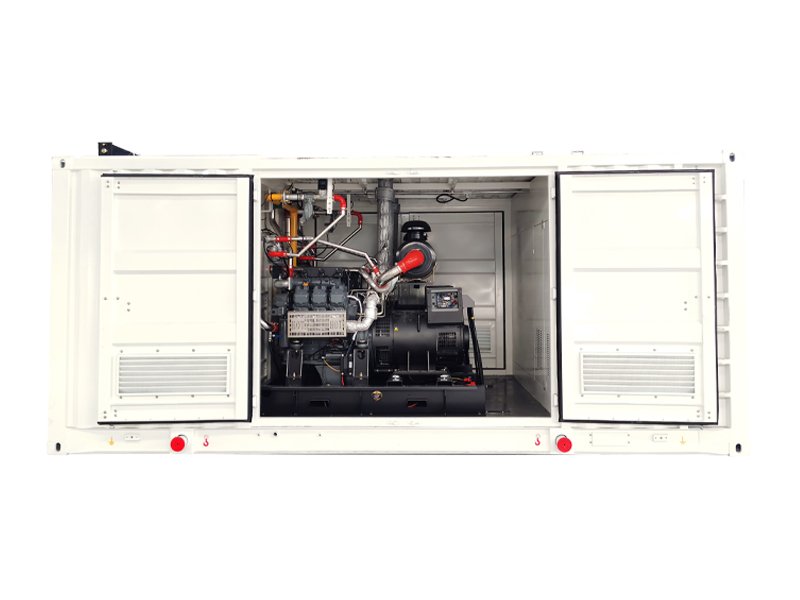

Compact, Modular Design: The unit features a small footprint and is ideal for containerized, modular deployment. It allows for flexible assembly, paralleling, and capacity scaling to precisely match the actual load requirements.
Ease of Installation & Relocation: The equipment is designed for rapid installation, straightforward connection, and easy relocation, perfectly addressing the diverse needs of various project types and site changes.
II. Performance & Reliability
Superior Transient Response: The engine offers exceptional stability and strong transient (sudden) load performance. It can supply the necessary power within a short timeframe without requiring extended preheating.
High Power Generation Efficiency: Enjoy impressive fuel economy: the 6-cylinder model achieves an electrical efficiency of 38%, and the 12-cylinder model reaches 40%.
Broad Fuel Flexibility: Demonstrates strong fuel adaptability, capable of utilizing multi-component mixed gases such as ethane, propane, and butane, while ensuring enhanced explosion-proof safety.
Uninterrupted Power Assurance: In online standby mode, should a single unit fail and trigger load reduction or shutdown, the system automatically adjusts the load across the remaining units, ensuring continuous and stable power consumption.
Robust Environmental Adaptability: Reliability is significantly improved, as the unit is engineered to operate normally in challenging conditions including dust, high temperature, low temperature, and high humidity environments.
III. Maintenance & Service
Equipped with Remote Cloud Monitoring: An optional cloud platform allows us (with customer permission) to monitor equipment operation online, proactively identify potential issues, and provide customers with training for the remote cloud inspection service.
Minimized Maintenance Costs: The equipment features an independent cylinder head design. Key maintenance parts atop the cylinder head boast an exceptionally long maintenance interval of 16,000 running hours.
Noted:The product can provide special customization services. If you have any needs, please consult us.
Product Parameters:
AC Alternator data | Gas engine data |
Generator Brand | Mecca | Engine Brand | Huachai-Deutz |
Motor Model | ECO40 1.5L4B | Engine Model | HC6V132 |
Rated Voltage(V) | 415 | Engine type | V6 cylinders, Exhaust turbocharger with water-cooled turbine housing |
Rated Power(H class)kW | 240 | Cylinder Bore x Stroke(mm) | 132mm×145mm |
Rated Capacity(H class)kVA | 300 | Displacement (L) | 11.9 |
Motor efficiency (%)/(400V) | 93.5% | Compression ratio | 11 |
Power factor | 0.8 | Rated output power (single) | 300kW-1500rpm/1800rpm |
Connection Methods | D/Y | Maximum lubricant consumption (g/kW.h) | ＜0.3 |
Rotor insulation class | H class | Minimum air intake (kg/h) | 1150 |
Rated temperature rise | F class | Ignition method | Electronically controlled single-cylinder independent high-energy ignition |
Excitation method | Brush-less | Fuel Control Method | Equivalent combustion, closed loop control |
Rotation speed (min- 1) | 1500/1800 | Speed regulation mode | Electronic commissioning |
Shell protection grade | IP23 |
|
|
Remarks:
1.Engine Control System: ECI (American brand);
2.Throttle: Bosch (German brand);
3.Spark plug: NGK(Japanese brand);

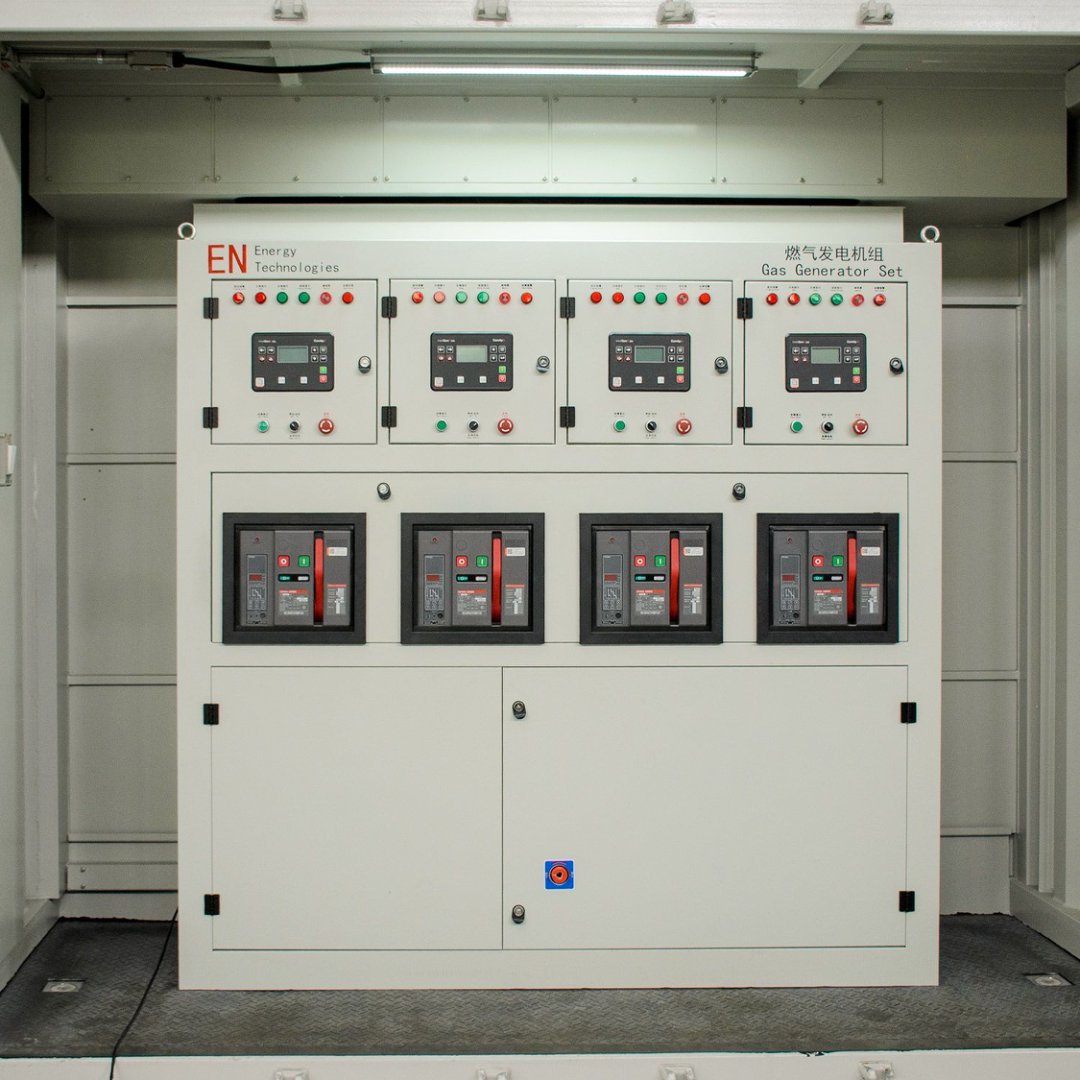

4.Generator master controller: Comap (Czech brand); DEIF(Danish brand); DSE(England brnad);
5.Altermator: Mecca (Italian brand); Stamford (American brand); Leroy Somer (French brand);
6.Starting mode: electric start;
7.Overhaul period: 36000h~60000h;
8.Generator type: pure copper brushless, automatic voltage regulation;
9.Operation mode: grid-connected/parallel/isolated/automatic control, etc;
