1.5MW Weichai Containerized Gas Generator Set | High-Power Natural Gas Solution

1.5MW Weichai Baudouin Gas Generator Sets single unit in container

Description

Rated power:1500kW;

Rated current:1875kVA;

Continuous power:1400kW;

Frequency:50/60Hz;

Voltage:0.4kV/0.6kV/10.5kV;

Operating noise:95dB(A)/7m;

Methane content:>85%;

Low heat value:Hu ≥ 31.4MJ/Nm;

Weight:6500kg;

Deminsions(LxW×H):5100mm×1800mm×2500mm

Inquiry Now Add to Cart

Description

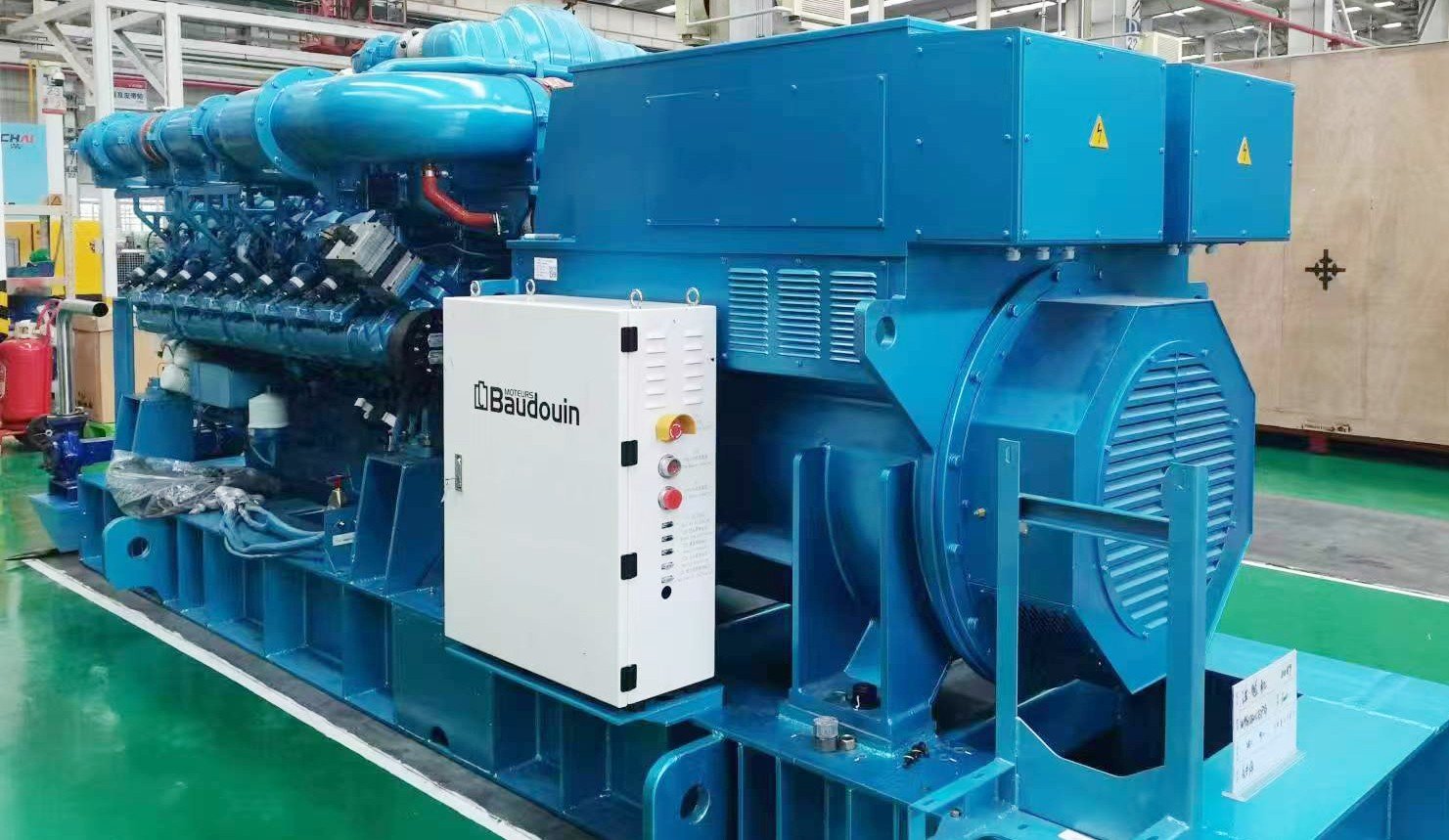

Product Name:1500kw Weichai Baudouin Natural gas generator set power generation energy equipment

This series of products uses Baudouin engines, which use China technology to develop and produce.

Engines, generators, and control system components are all made of first-line domestic and foreign brands.

Features of Weichai units:

1. High-efficiency gas engine;

2. AC synchronous generator;

3. Safety gas valve group, optional gas leakage protection device;

4. Cooling system suitable for ambient temperature up to 50℃;

5. Strict factory testing for all generator sets;

6. The muffler adopts an industrial muffler with a noise reduction capacity of 12-20dB (A);

7. Advanced engine control system: ECI control system includes: ignition system, detonation control system, speed control system, protection system, air-fuel ratio control system and cylinder temperature;

8. Equipped with cooler and temperature control system to ensure the normal operation of the unit at an ambient temperature of 50℃;

9. Independent electrical control cabinet, remote monitoring system can be configured;

10. Multi-function control system, simple operation;

11. Data communication interface integrated in the control system to meet data acquisition;

12. Monitor battery voltage and charge automatically.

Noted:The product can provide special customization services. If you have any needs, please consult the manufacturer;

Product Parameters:

AC Alternator data		Gas engine data
Generator Brand	EN energy	Engine Brand	Baudouin
Motor Model	EN 454C	Engine Model	12M33D800E310NG
Rated Voltage(V)	13500	Engine type	V12, Exhaust turbocharger with wa ter-cooled turbine housing
Rated Power(H class)kW	1512	Cylinder Bore x Stroke(mm)	150mm×185mm
Rated Capacity(H class)kVA	1890	Displacement (L)	52.3
Motor efficiency (%)/(400V)	95.3%	Compression ratio	11
Power factor	0.8	Rated output power (single)	1600kW/1800rpm
Connection Methods	D/Y	Maximum lubricant consumption (g/kW.h)	＜0.3
Rotor insulation class	H class	Minimum air intake (kg/h)	5811

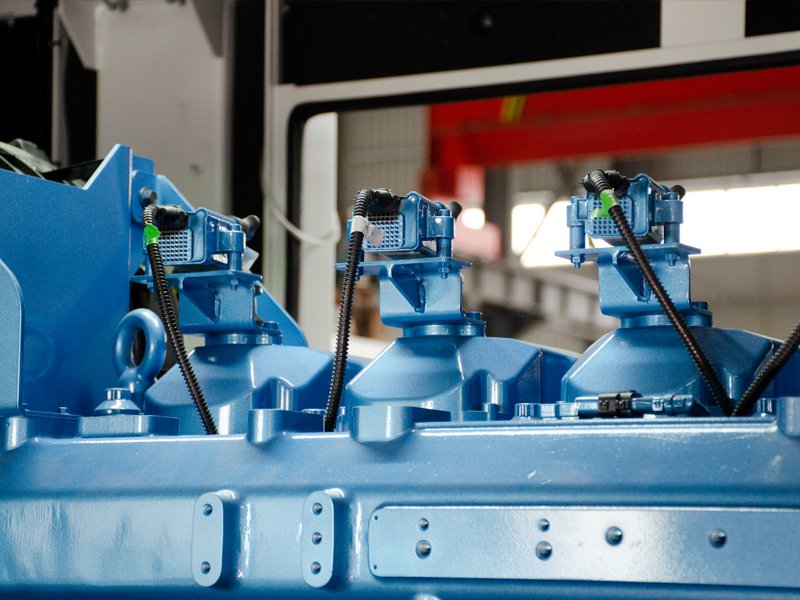

Rated temperature rise	F class	Ignition method	O-Electronically controlled single-cylinder independent high-energy ignition
Excitation method	Brush-less	Fuel Control Method	Equivalent combustion, closed loop control
Rotation speed (min- 1)	1800	Debugging method	Electronic commissioning
Shell protection grade	IP23	Cooling method	Forced water cooling

Remarks:

1.Engine Control System: ECI (American brand);

2.Throttle: Bosch (German brand);

3.Spark plug: NGK(Japanese brand);

4.Generator master controller: Comap (Czech brand); DEIF(Danish brand); DSE(England brnad);

5.Starting mode: electric start;

6.Overhaul period: 30000h;

7.Generator type: pure copper brushless, automatic voltage regulation;

8.Operation mode: grid-connected/parallel/isolated/automatic control, etc;

Inquiry Now

1.5MW Weichai Gas Generator Sets single unit in container
