800kW Cummins Biogas Generator | Reliable Power for Industrial Applications

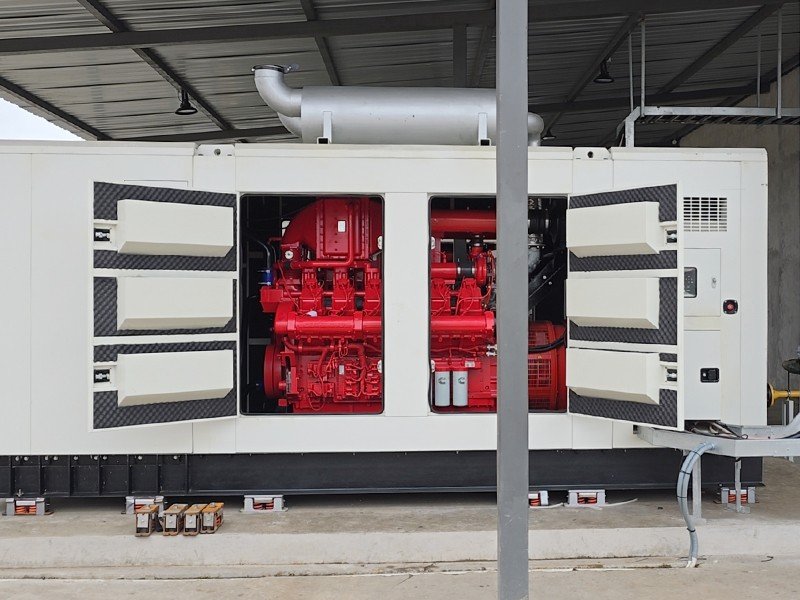

800kw Cummins biogas generator power plant

Description

Rated power:800kW

Rated current:1000kVA

Continuous power:800kW

Methane content:>50%

Low heat value:Hu ≥ 18MJ/Nm

Frequency:50/60Hz

Voltage:0.4kV/0.6kV/10.5kV;

Operating noise:95dB(A)/7m

Weight:6820kg;

Deminsions(LxW×H):4450mm×2050mm×2490mm

Inquiry Now Add to Cart

Description

Product Name:800kw Cummins Biogas generator set power plant

This series of products uses Chongqing /Dongfeng Cummins engines, which are well-known brands at home and abroad.

All gas engines are designed and developed in conjunction with EN Company according to the use of various combustible gases.

The product power covers 50-1500KW. The product has the advantages of high power per unit, high reliability, low gas consumption, low noise, and strong applicability.

Features of Cummins units:

1.Highly efficient gas engine.

2.AC synchronous alternator. Gas safety train and gas protection device against leakage.

3.With cooler and Temperature Control System to make sure the unit can work normally at 50℃ environment temperature.

4.Strict shop test for all gensets. Industrial silencer with silencing ability of 12-20dB(A).

5.Advanced engine control system: ECI control system including: ignition system, speed control system , protection system，air/fuel ratio control system

6.Independent electrical control cabinet for remote control.

7.Multi-functional control system with simple operation.

8.Data communication interfaces integrated into control system.

9.Monitoring battery voltage and charging automatically.

Noted:The product can provide special customization services. If you have any needs, please consult us.

Product parameters:

AC Alternator data		Gas engine data
Generator Brand	Mecca	Engine Brand	Cummins
Motor Model	ECO40 2L4C	Engine Model	K38N-G8
Rated Voltage(V)	415	Engine type	V-12 cylinders-turbocharged
Rated Power(H class)kW	800	Cylinder Bore x Stroke(mm)	159mm×159mm
Rated Capacity(H class)kVA	1000	Displacement (L)	38
Motor efficiency (%)/(400V)	95	Compression ratio	11.5
Power factor	0.8	Rated output power (single)	900kW-1500rpm/1800rpm
Connection Methods	D/Y	Maximum lubricant consumption (g/kW.h)	＜0.3
Rotor insulation class	H class	Minimum air intake (kg/h)	2324
Rated temperature rise	F class	Ignition method	Electronically controlled single-cylinder independent high-energyignition
Excitation method	Brush-less	Fuel Control Method	Equivalent combustion, closed loop control
Rotation speed (min- 1)	1500/1800	Debugging method	Electronic commissioning
Shell protection grade	IP23	Cooling method

Remarks:

1.Engine Control System: ECI (American brand);

2.Throttle: Bosch (German brand);

3.Spark plug: NGK(Japanese brand);

4.Generator master controller: Comap (Czech brand); DEIF(Danish brand); DSE(England brnad);

5.Altermator: Mecca (Italian brand); Stamford (American brand); Leroy Somer (French brand);

6.Starting mode: electric start;

7.Overhaul period: 36000h~60000h;

8.Generator type: pure copper brushless, automatic voltage regulation;

9.Operation mode: grid-connected/parallel/isolated/automatic control, etc;
