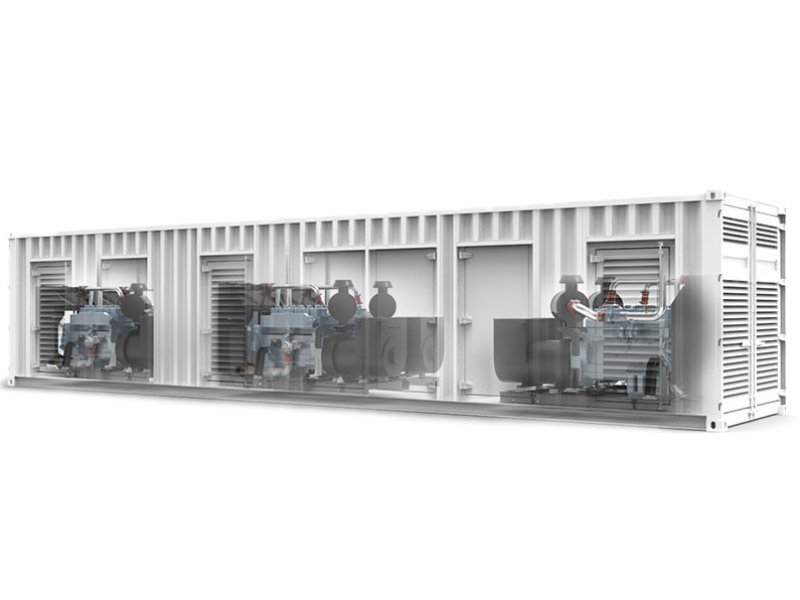

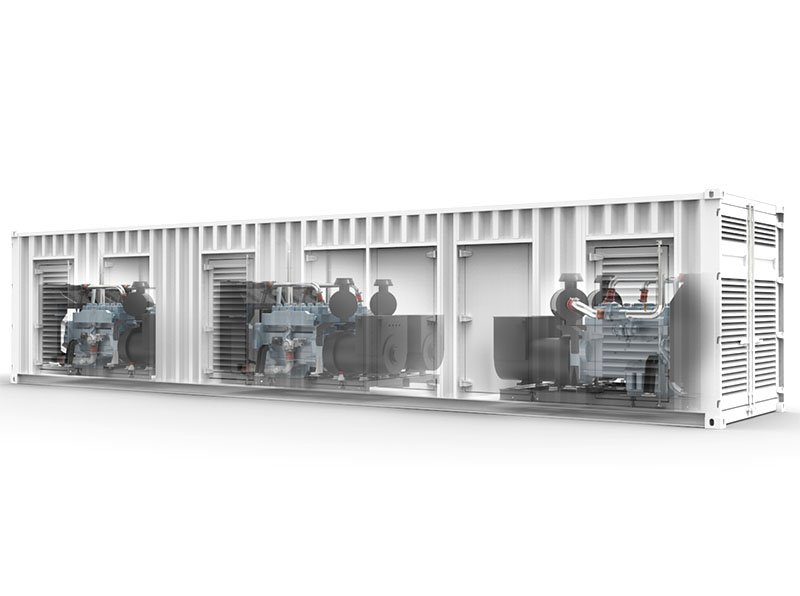

1.5MW Deutz Gas Generator – Triple V12 Units in Parallel

1.5MW V12 Deutz Natural gas generator 3 gensets in parallel

Description

This advanced 1 MW V12 Deutz natural gas generator system, configured as 3 sets in parallel, delivers up to 3 MW of continuous power output — ideal for demanding industrial, mining, data‑centre and utility applications. Designed for rapid deployment, containerised transport and fuel flexibility.

Rated power:1500kw;

Rated current:1875kVA;

Continuous power:1350kW;

Frequency: 50Hz/60Hz;

Voltage: 0.4kV/0.6kV/10.5kV;

Operating noise:95dB(A)/7m;

Methane content:>85%;

Low heat value:Hu ≥ 31.4MJ/Nm;

Weight:28500kg;

Deminsions(LxW×H):12192mm×3200mm×4700mm(Transportation size: 3600mm);

This series of units are small in size and can be used and transported in containers. One container can hold 2MW.

They have good sudden load performance, short warm-up time, continuous use efficiency of 90%, and thermal efficiency of up to 40%.

Inquiry Now Add to Cart

Description

Product Specifications & Technical Parameters

Product Model & General Configuration

Parameter	Specification
Engine Model	V12 Deutz Natural Gas Engine
Total Power Output	3 MW (based on 3 sets in parallel)
Structural Design	Containerized (Containerized package for easy field transport)
Applicable Scenarios	Oil & Gas Fields, Mining Areas, Data Centers, Hospitals, Industrial Parks

Key Technical Performance

Fuel Adaptability: Broad fuel tolerance, including Natural Gas ( $\text{CH}_4 > 85\%$ ), Associated Petroleum Gas (APG), and Ethane/Propane Mixed Fuel.
Electrical Efficiency (Heat Rate): Approximately 40%(High efficiency for this class of engine).
Continuous Operation Efficiency: Approximately 90% (Load factor/Capacity Factor).
Load Response Time: Fast response to load changes, with a recovery time of <3s (aligns with the superior dynamic performance needed for critical applications).

Application Scenarios

Oil & Gas Fields / Mining Areas:

The $3 \text{ MW}$ parallel power system ensures continuous power for drilling rigs or mining camps.
The containerized design enables rugged outdoor deployment and easy transport.

Data Centers / Hospitals (Mission-Critical Facilities):

High operational efficiency ( $90\%$ continuous and $40\%$ thermal) and a fast load response $<3 \text{ seconds}$ ) guarantee mission-critical equipment uptime and lower operating costs.

Industrial Parks:

Superior Fuel Flexibility: The system is compatible with natural gas (Methane content $>85\%$ ), associated gas, and ethane/propane blends. This reduces fuel waste and maximizes flexibility for industrial users.

Typical Cases

Integrated Energy Systems: Provided a Natural Gas Combined Cooling, Heat, and Power (CCHP) system for the Shanghai Disney Resort Distributed Energy Station, supplying the majority of its electricity, cooling, and heating.
Large-Scale Regional Power: Contributed to the Guangzhou University Town Distributed Energy Station, one of the largest distributed energy projects in South China.
Critical Standby Power: Widely equipped in Major Hospitals and Data Centers to ensure the uninterrupted operation of life support systems and servers during main power outages.

Why Choose Us

Premium Engine Quality: Engineered with premium V12 Deutz natural-gas engines for superior reliability and long-term performance.
Scalable Power: Parallel capability up to $3 \text{ MW}$ ensures your power solution can scale precisely with your energy demands.
Ultimate Fuel Flexibility: Fuel-flexible design supports methane-rich gas, associated gas, and ethane/propane blends, lowering fuel costs and reducing waste.
Rapid Deployment: Containerized design for easy transport and quick installation, perfect for remote or temporary sites.
Global Support: Supported by a global service network to ensure rapid commissioning and maintenance, wherever your project is located.
