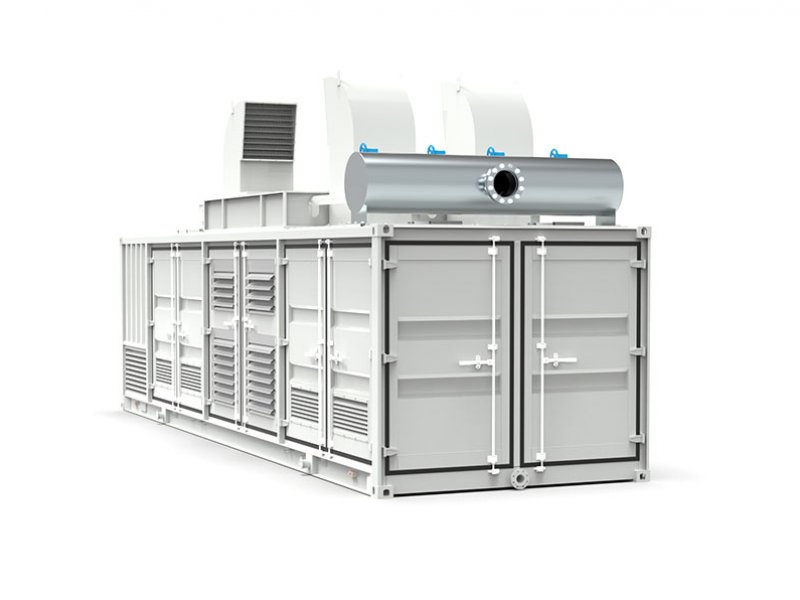

1200kW Cummins Natural Gas Generator | Rainproof Containerized Power Plant

1200kw Cummins natuarl gas generator single unit power plant

Description

The 1,200 kW natural gas generator from Cummins is engineered for high‑capacity, reliable power in both prime and standby applications. As a single‑unit power plant solution, this genset delivers robust performance for commercial, industrial or infrastructure use, leveraging natural gas as fuel for cleaner operation, lower emissions, and superior fuel economy. Whether you require continuous power to run large motors, production facilities, data centres or backup power for complex operations, this Cummins 1,200 kW natural gas generator offers a turnkey solution designed for durability and efficiency.

Rated power:1200kw;

Rated current:1500kVA;

Continuous power:1200kW;

Frequency: 50Hz/60Hz;

Voltage: 0.4kV/0.6kV/10.5kV;

Operating noise:95dB(A)/7m;

Methane content:>85%;

Low heat value:Hu ≥ 31.4MJ/Nm;

Reference Weight: 12000kg;

Dimensions (L×W×H): 5700mm×1750mm×2400mm;

Inquiry Now Add to Cart

Description

Key Features

Rated Power Output: Approximately 1,200 kW (may convert to ~1,500 kVA at 0.8 PF) – depending on configuration and voltage/frequency.
Fuel Type – Natural Gas: Designed to operate on natural gas, ensuring reduced particulate emissions, lower NOₓ and CO₂ compared to diesel alternatives and suitability for sites with pipeline or well gas.

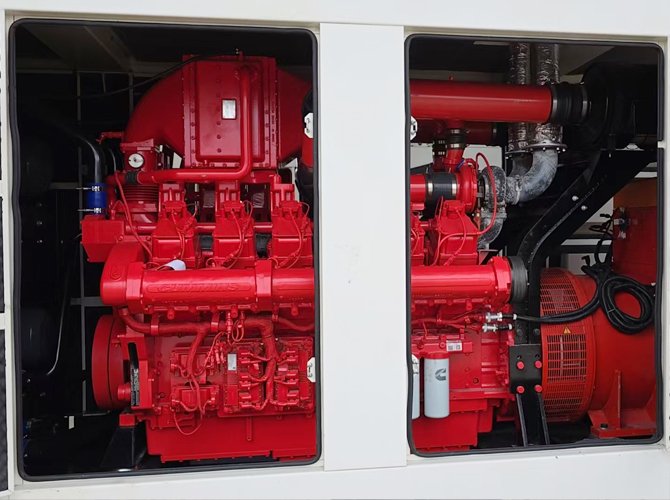

Engine Brand & Technology – Cummins: Based on Cummins natural gas engine platform (for example the C1200 N5C series, V16, 60 L displacement) with proven reliability.
Industrial‑Grade Alternator & Control System: High performance alternator, digital controller (Cummins PowerCommand® or equivalent) for load management, automatic start/stop, protection and remote monitoring capability.
Single‑Unit Format: Simplifies logistics, commissioning and maintenance compared to multi‑unit or parallel systems; ideal for installations where space is available for a full‑size unit.
Flexible Voltage / Frequency Options: Can be configured for 50 Hz or 60 Hz markets, and a variety of voltages such as 400 V, 480 V, etc., depending on customer requirement.
High Efficiency & Lower Lifecycle Cost: Natural gas drive‑cycle engine design means lower fuel cost per kWh and fewer maintenance demands compared with older diesel gensets.
Environment & Emission Compliance: Cummins natural gas gensets are engineered to meet modern emissions regulations, and the 1,200 kW rating falls into their above‑1 000 kW category focused on high‑power natural gas solutions.
Robust Construction: Suitable for industrial environments; can be supplied as open skid, weather‑protected or sound‑attenuated enclosure depending on site requirements.

Applications

Typical Use Cases of the 1,200 kW Cummins Natural Gas Generator

Large Industrial Facilities & Manufacturing Plants: Provide primary or standby power for production lines, heavy motors, compressed air systems, and process loads.
Commercial Complexes & Data Centres: Reliable power for mission‑critical infrastructure where downtime must be minimised.
Utility & Infrastructure Deployments: Suitable for pump stations, water/wastewater treatment, grid‑support installations, remote sites.
Remote / Off‑Grid Power Solutions: Where natural gas (pipeline or well‑gas) is available and diesel transport costs or emissions are prohibitive.
Low‑Carbon Transition Projects: For organisations switching from diesel to cleaner fuels, a natural gas unit like this offers a strong bridging solution.

Product Parameters

AC Alternator data		Gas engine data
Generator Brand	Mecca	Engine Brand	Cummins
Motor Model	ECO46 1S4A	Engine Model	K50-G12
Rated Voltage(V)	415	Engine type	V16, Exhaust turbocharger with water-cooled turbine housing
Rated Power(H class)kW	1200	Cylinder Bore x Stroke(mm)	159mm×159mm
Rated Capacity(H class)kVA	1500	Displacement (L)	50
Motor efficiency (%)/(400V)	96.4	Compression ratio	11.5
Power factor	0.8	Rated output power (single)	1300kW/1500rpm(1800rpm)
Connection Methods	D/Y	Maximum lubricant consumption (g/kW.h)	＜0.3
Rotor insulation class	H class	Minimum air intake (kg/h)	4059
Rated temperature rise	H class	Ignition method	Electronically controlled single-cylinder independent high-energyignition
Excitation method	Brush-less	Fuel Control Method	Equivalent combustion, closed loop control
Rotation speed (min- 1)	1500/1800	Debugging method	Electronic commissioning
Shell protection grade	IP23

Why Choose This Cummins 1,200 kW Solution?

Trusted Brand & Global Support: Cummins is a world‑leading manufacturer of natural gas and diesel generator sets with extensive service and parts network.
High Capacity Single Unit: A single‑unit 1,200 kW genset simplifies installation, reduces synchronization complexity and eases maintenance compared with parallel multi‑unit configurations.
Natural Gas Fuel Advantage: Using natural gas reduces fuel cost volatility, lowers emissions and is often more favourable in regulated environments.
Scalable & Future‑Proof: Though single‑unit, this sized genset can be integrated into larger systems or act as anchor in micro‑grid or prime power setups.
Operational Efficiency & Reliability: Proven Cummins engine technology ensures durability in industrial conditions and consistent performance under heavy loads.

Ready to upgrade your power infrastructure with a high‑capacity, efficient natural gas solution?

Contact us today to request a full specification, pricing, installation & commissioning support for the 1,200 kW Cummins Natural Gas Generator – Single‑Unit Power Plant. Our engineering team will help you tailor the configuration to your site requirements, fuel availability, voltage/frequency needs and budget.
