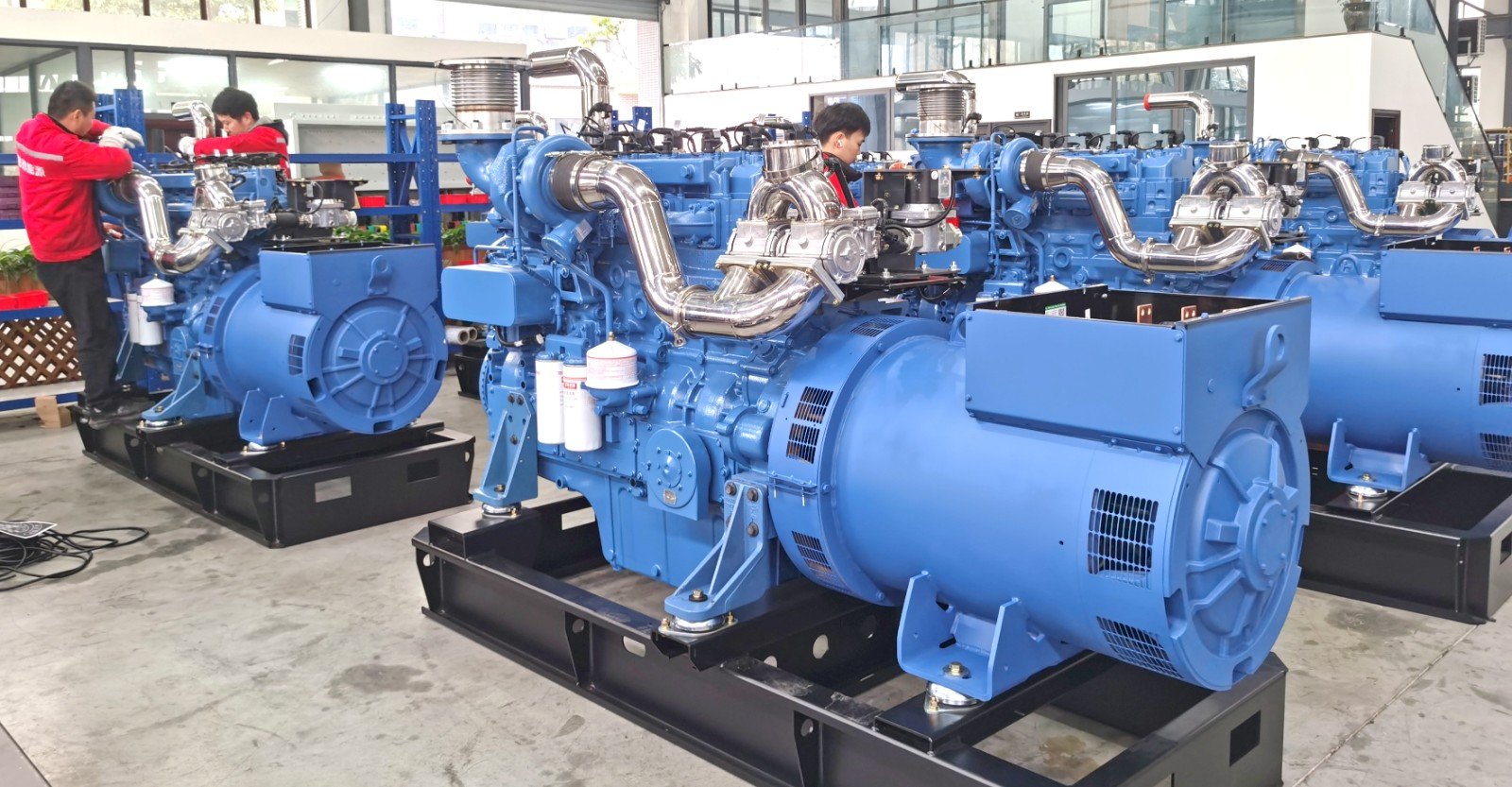

500kW Yuchai Containerized Natural Gas Generator

500kw Yuchai natural gas generator single unit container

Description

Rated power:500kW;

Rated current:625kVA;

Continuous power:450kW;

Frequency:50/60Hz;

Voltage:0.4kV/0.6kV/10.5kV;

Operating noise:95dB(A)/7m;

Methane content:>85%;

Low heat value:Hu ≥ 31.4MJ/Nm;

Weight:5600kg;

Deminsions(LxW×H):2900mm×1200mm×1650mm;

Inquiry Now Add to Cart

Description

Product Name:500kw Yuchai Natural gas generator set power generation energy equipment

Product name: 500kw Yuchai natural gas generator set power generation energy equipment

This series of products uses Yuchai engines developed and produced using Chinese technology.

The engine, generator and control system components are all first-line brands at home and abroad.

Features of Yuchai units:

1. Stable and reliable, with strong continuous operation capability

Yuchai engines are known for their durability and are particularly suitable for long-term uninterrupted operation;

The unit structure is optimized, with good overload resistance, suitable for complex environments such as high temperature and high altitude.

2. Good fuel economy

The engine has high thermal efficiency and low fuel consumption;

At the same power, the operating cost is 5-10% lower than that of imported brands.

3. Wide power range coverage

The power range is from 20kW to 2400kW;

It can be used in civil, industrial, data centers, base stations, power stations, farms and other scenarios.

4. Adequate supply of accessories and convenient maintenance

Yuchai has service outlets in many countries around the world;

The parts are highly versatile, easy to purchase and replace, and easy for maintenance personnel to use.

5. Fast power response and good starting performance

It starts quickly and can carry full load within 30 seconds;

The load response time is short, suitable for use as an emergency power supply.

6. Complete categories and various forms

Can be equipped with silent boxes, rain covers, trailers, power station containers, etc.;

Supports intelligent needs such as automatic switching, parallel operation, and remote monitoring

Noted:The product can provide special customization services. If you have any needs, please consult the manufacturer;

Product Parameters:

AC Alternator data		Gas engine data
Generator Brand	Mecca	Engine Brand	Yuchai
Motor Model	ECO40 2L4	Engine Model	YC6C935N-D30
Rated Voltage(V)	544	Engine type	cylinders , turbocharger with intercooler
Rated Power(H class)kW	680	Cylinder Bore x Stroke(mm)	200mm×210mm
Rated Capacity(H class)kVA	625	Displacement (L)	39.58
Motor efficiency (%)/(400V)	95	Compression ratio	11.5
Power factor	0.8	Rated output power (single)	625kW/1500rpm
Connection Methods	D/Y	Maximum lubricant consumption (g/kW.h)	＜0.3
Rotor insulation class	H class	Minimum air intake (kg/h)	2733
Rated temperature rise	F class	Ignition method	Electronically controlled single- cylinder independent high-energy ignition
Excitation method	Brush-less	Fuel Control Method	Equivalent combustion, closed loop control
Rotation speed (min- 1)	1500	Debugging method	Electronic commissioning
Shell protection grade	IP23	Cooling method	Forced water cooling

Remarks:

1.Engine Control System: ECI (American brand);

2.Throttle: Bosch (German brand);

3.Spark plug: NGK(Japanese brand);

4.Generator master controller: Comap (Czech brand); DEIF(Danish brand); DSE(England brnad);

5.Starting mode: electric start;

6.Overhaul period: 30000h;

7.Generator type: pure copper brushless, automatic voltage regulation;

8.Operation mode: grid-connected/parallel/isolated/automatic control, etc;
