1200kW Jichai Natural Gas Generator | High-Efficiency Power Plant Solution

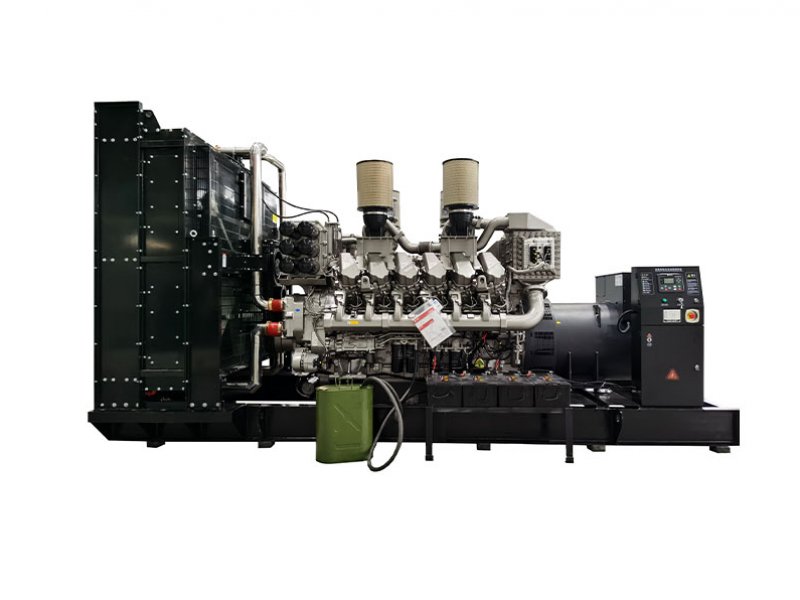

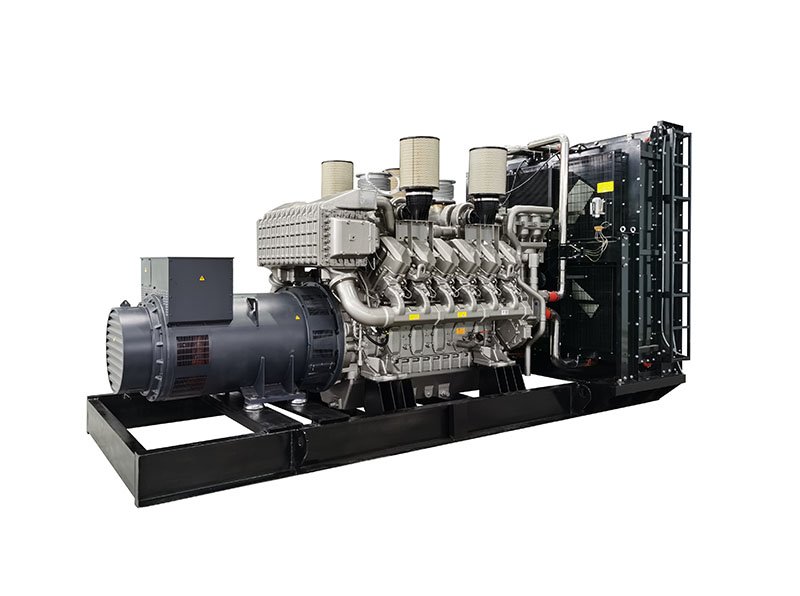

1200kW Jichai Natural gas generator power plant

Description

Rated power:1320kW;

Rated current:1250kVA;

Continuous power:1200kW;

Frequency: 50Hz/60Hz;

Voltage: 0.4kV/0.6kV/10.5kV;

Operating noise:95dB(A)/7m;

Methane content:>85%;

Low heat value:Hu ≥ 31.4MJ/Nm;

Reference Weight: 11500kg;

Dimensions (L×W×H): 7900mm×2300mm×2800mm;

Inquiry Now Add to Cart

Description

Product Name:1000kw Jichai Natural gas generator set power generation energy equipment

This series of products uses Jichai engines.

All gas engines are designed and developed in conjunction with EN Company according to the use of various combustible gases.

The product power covers 600-1200KW. The product has the advantages of high power per unit, high reliability, low gas consumption, low noise, and strong applicability.

Features of Jichai units:

1.Highly efficient gas engine.

2.AC synchronous alternator. Gas safety train and gas protection device against leakage.

3.With cooler and Temperature Control System to make sure the unit can work normally at 50℃ environment temperature.

4.Strict shop test for all gensets. Industrial silencer with silencing ability of 12-20dB(A).

5.Advanced engine control system: ECI control system including: ignition system, speed control system , protection system，air/fuel ratio control system.

6.Independent electrical control cabinet for remote control.

7.Multi-functional control system with simple operation.

8.Data communication interfaces integrated into control system.

9.Monitoring battery voltage and charging automatically.

Noted:The product can provide special customization services. If you have any needs, please consult us.

Product Parameters:

AC Alternator data		Gas engine data
Generator Brand	Mecca	Engine Brand	Jichai
Motor Model	ECO40 2L4	Engine Model	L12V200ZLT-2
Rated Voltage(V)	415	Engine type	V-12 cylinders-turbocharged
Rated Power(H class)kW	1200	Cylinder Bore x Stroke(mm)	200mm×255mm
Rated Capacity(H class)kVA	1500	Displacement (L)	96.1
Motor efficiency (%)/(400V)	95	Compression ratio	11.5
Power factor	0.8	Rated output power (single)	1350kW/1000rpm
Connection Methods	D/Y	Maximum lubricant consumption (g/kW.h)	＜0.6
Rotor insulation class	H class	Minimum air intake (kg/h)	4045
Rated temperature rise	F class	Ignition method	Electronically controlled single-cylinder independent high-energyignition
Excitation method	Brush-less	Fuel Control Method	Equivalent combustion, closed loop control
Rotation speed (min- 1)	1000	Debugging method	Electronic commissioning
Shell protection grade	IP23	Cooling method	Forced water cooling

Remarks:

1.Engine Control System: ECI (American brand);

2.Throttle: Bosch (German brand);

3.Spark plug: NGK(Japanese brand);

4.Generator master controller: Comap (Czech brand); DEIF(Danish brand); DSE(England brnad);

5.Altermator: Mecca (Italian brand); Stamford (American brand); Leroy Somer (French brand);

6.Starting mode: electric start;

7.Overhaul period: 36000h~60000h;

8.Generator type: pure copper brushless, automatic voltage regulation;

9.Operation mode: grid-connected/parallel/isolated/automatic control, etc;
