1200kW Jichai Biogas Generator Power Plant | High-Capacity Clean Energy Solution

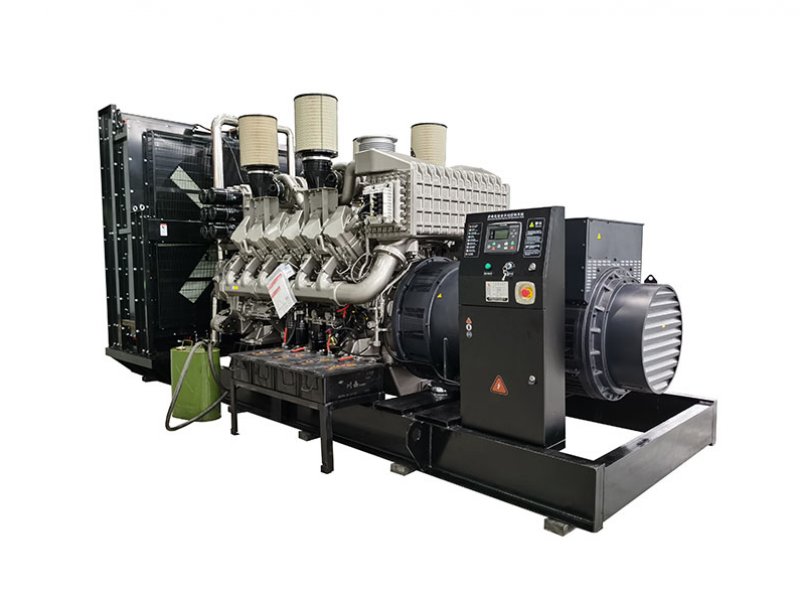

1200kW Jichai Biogas generator power plant

Description

The 1200KW Jichai Biogas Generator Power Plant is a high-performance energy solution designed to generate electricity from renewable biogas. Ideal for large-scale industrial operations, agricultural facilities, and waste-to-energy projects, this generator offers a reliable and cost-effective source of energy. Powered by the robust Jichai engine, known for its durability and fuel efficiency, the 1200KW generator ensures minimal downtime, reduced operating costs, and compliance with environmental sustainability goals. Whether you need to reduce energy costs or meet green energy objectives, the 1200KW Jichai Biogas Generator is an excellent solution for your power generation needs.

Rated power:1320kW;

Rated current:1250kVA;

Continuous power:1200kW;

Frequency: 50Hz/60Hz;

Voltage: 0.4kV/0.6kV/10.5kV;

Operating noise:95dB(A)/7m;

Methane content:>85%;

Low heat value:Hu ≥ 31.4MJ/Nm;

Reference Weight: 11500kg;

Dimensions (L×W×H): 7900mm×2300mm×2800mm;

Inquiry Now Add to Cart

Description

Product Features

High Power Output: With a rated power of 1200KW, this generator is designed to meet the energy demands of large-scale facilities, making it an ideal choice for industrial and agricultural power generation.
Jichai Engine Technology: Powered by the reliable and efficient Jichai engine, known for its longevity, fuel efficiency, and low maintenance needs. This engine is perfect for long-term, high-demand operations.
Biogas Fuel Flexibility: This generator is designed to operate on a variety of biogas fuels, including methane from agricultural waste, landfill gas, and other organic waste, making it a versatile and sustainable energy solution.
Eco-Friendly Operation: By using biogas as fuel, the generator significantly reduces greenhouse gas emissions and supports businesses in meeting their sustainability and carbon reduction targets.
Cost-Effective Operation: The Jichai engine's high fuel efficiency reduces operating costs, offering substantial savings in long-term energy production. It also requires minimal maintenance, further lowering costs.

Product Parameters

AC Alternator data		Gas engine data
Generator Brand	Mecca	Engine Brand	Jichai
Motor Model	ECO40 2L4	Engine Model	L12V200ZLT-2
Rated Voltage(V)	415	Engine type	V-12 cylinders-turbocharged
Rated Power(H class)kW	1200	Cylinder Bore x Stroke(mm)	200mm×255mm
Rated Capacity(H class)kVA	1500	Displacement (L)	96.1
Motor efficiency (%)/(400V)	95	Compression ratio	11.5
Power factor	0.8	Rated output power (single)	1350kW/1500rpm
Connection Methods	D/Y	Maximum lubricant consumption (g/kW.h)	＜0.6
Rotor insulation class	H class	Minimum air intake (kg/h)	4045
Rated temperature rise	F class	Ignition method	Electronically controlled single-cylinder independent high-energyignition
Excitation method	Brush-less	Fuel Control Method	Equivalent combustion, closed loop control
Rotation speed (min- 1)	1000	Debugging method	Electronic commissioning
Shell protection grade	IP23

Applications

Industrial Power Generation: Ideal for large industrial facilities with high energy demands, such as manufacturing plants, chemical plants, and food processing units.
Agricultural Operations: Perfect for agricultural operations generating biogas from organic waste such as crop residues, manure, and food waste. It helps reduce reliance on the grid while providing a renewable energy source on-site.
Waste-to-Energy Projects: The Jichai Biogas Generator is an excellent choice for waste-to-energy projects, where organic waste is converted into clean, renewable electricity, contributing to sustainability and waste reduction goals.
Off-Grid Power Solutions: Suitable for off-grid locations where power supply from the grid is unreliable or unavailable, such as remote farms or industrial plants.

Environmental Benefits

Reduction of Greenhouse Gas Emissions: The use of biogas as fuel helps mitigate climate change by reducing methane emissions, a potent greenhouse gas.
Sustainable Power Generation: By using renewable biogas, the Jichai generator reduces reliance on fossil fuels and supports sustainable energy practices.
Compliance with Emission Standards: The generator meets stringent emission standards, ensuring compliance with international regulations and contributing to cleaner air and a healthier environment.

Energy Efficiency and Economic Benefits

Cost-Effective Energy Solution: The Jichai Biogas Generator operates with high fuel efficiency, reducing overall fuel costs and making it a cost-effective solution for large-scale energy generation.
High Return on Investment (ROI): Due to its fuel efficiency and low maintenance requirements, the generator offers excellent ROI, delivering long-term savings while maintaining high reliability.
Low Maintenance & Long-Term Savings: The Jichai engine is built for durability and requires minimal maintenance, which reduces downtime and service costs, ensuring a high return on your investment over the life of the system.

Frequently Asked Questions (FAQ)

Q: What types of biogas can be used with this generator?

A: The 1200KW Jichai Biogas Generator is designed to run on various types of biogas, including methane from agricultural waste, landfill gas, and other organic waste, offering flexibility in fuel sourcing.

Q: How efficient is the fuel consumption?

A: The generator is highly fuel-efficient, making it an economical choice for large-scale power generation. The specific fuel consumption varies depending on the biogas type and operating conditions.

Q: Can this generator be used in remote locations?

A: Yes, the 1200KW Jichai Biogas Generator is ideal for off-grid and remote locations, where a reliable power supply is needed without access to the external power grid.

Q: What is the expected lifespan of the generator?

A: With proper maintenance, the Jichai engine has a lifespan of 15+ years, providing long-term, reliable power generation with minimal service interruptions.
