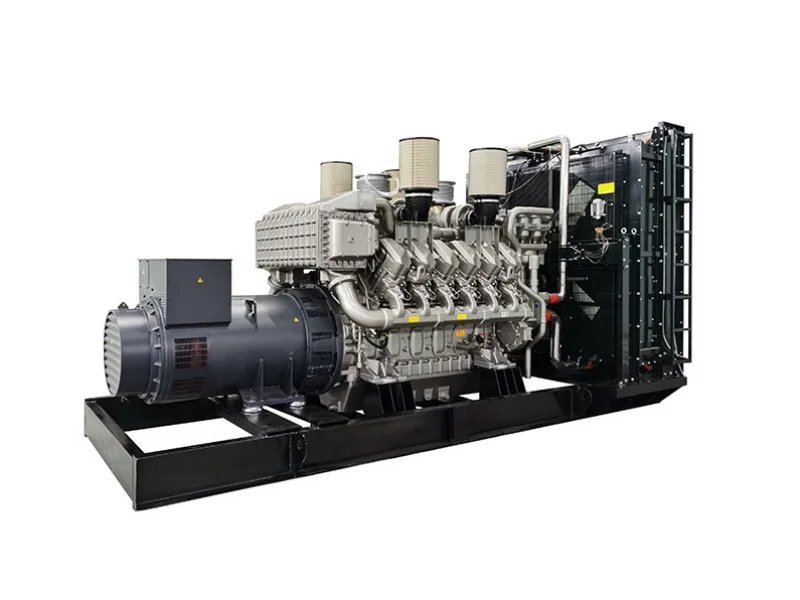

How It Works: The Technology Behind the Jichai 600kW Generator
The Jichai 600kW Natural Gas Generator uses a four-stroke internal combustion engine to generate power. The engine burns natural gas, converting chemical energy into mechanical energy. This energy drives the alternator, which produces electricity. Key technologies like the advanced cooling system and electronic control module (ECM) ensure high operational efficiency and reliability.
Cooling System: Maintains optimal engine temperature to prevent overheating.
Control Panel: Monitors the generator’s vital functions, including voltage output, engine temperature, and fuel consumption.
Automatic Transfer Switch (ATS): Ensures automatic transfer of power to the generator in case of grid failure, ensuring uninterrupted supply.
Why Choose the Jichai 600kW Natural Gas Generator?
1. Cost-Effective and Efficient Power Generation
The 600kW Jichai Natural Gas Generator offers exceptional fuel efficiency, which translates to lower operational costs over the generator's lifespan. Using natural gas—a more cost-effective and abundant fuel compared to diesel or coal—this generator helps businesses save significantly on fuel expenses, while providing a reliable power supply.
2. Eco-Friendly Operation
This generator is built with the environment in mind. Compared to traditional diesel or coal-powered generators, the Jichai 600kW Natural Gas Generator:
Reduces carbon emissions and air pollutants.
Meets stringent environmental regulations to help businesses comply with local or international emissions standards.
Low noise levels, making it suitable for noise-sensitive areas like residential neighborhoods or urban environments.
3. High Reliability and Durability
Jichai engines are renowned for their durability and high reliability, even under the most demanding conditions. This 600kW model is designed for continuous operation, ensuring maximum uptime and minimal maintenance.
Heavy-duty construction ensures a long service life.
Advanced cooling systems prevent overheating and maintain optimal performance.
Designed to operate in harsh environments with minimal risk of failure.
4. Versatile Applications
The 600kW Jichai Natural Gas Generator can be used in various sectors and applications:
Industrial and Manufacturing: Provides uninterrupted power to factories, production lines, and heavy machinery.
Commercial Enterprises: Ideal for powering large commercial establishments like shopping malls, hotels, and office buildings.
Backup Power: Serves as a reliable emergency backup during grid failures.
Off-Grid Power Generation: Perfect for remote locations or sites where access to the grid is unavailable.
Features of Jichai units:
1.Highly efficient gas engine.
2.AC synchronous alternator. Gas safety train and gas protection device against leakage.
3.With cooler and Temperature Control System to make sure the unit can work normally at 50℃ environment temperature.
4.Strict shop test for all gensets. Industrial silencer with silencing ability of 12-20dB(A).
5.Advanced engine control system: ECI control system including: ignition system, speed control system , protection system，air/fuel ratio control system
6.Independent electrical control cabinet for remote control.
7.Multi-functional control system with simple operation.
8.Data communication interfaces integrated into control system.
9.Monitoring battery voltage and charging automatically.
Noted:The product can provide special customization services. If you have any needs, please consult us.
Product parameters
AC Alternator data | Gas engine data |
Generator Brand | JIALI | Engine Brand | JICHAI |
Motor Model | IFC6 | Engine Model | 12V190ZDT1-2 |
Rated Voltage(V) | 600 | Engine type | V-12 cylinders-turbocharged |
Rated Power(H class)kW | 600 | Cylinder Bore x Stroke(mm) | 190mm×210mm |
Rated Capacity(H class)kVA | 857 | Displacement (L) | 71.5 |
Motor efficiency (%)/(400V) | 94 | Compression ratio | 11 |
Power factor | 0.7 | Rated output power (single) | 660kW/1000rpm |
Connection Methods | D/Y | Maximum lubricant consumption (g/kW.h) | ＜1 |
Rotor insulation class | H class | Minimum air intake (kg/h) | 3020 |
Rated temperature rise | F class | Ignition method | Electronically controlled single-cylinder independent high-energyignition |
Excitation method | Brush-less | Fuel Control Method | Equivalent combustion, closed loop control |
Rotation speed (min- 1) | 1000 | Debugging method | Electronic commissioning |
Shell protection grade | IP23 |
|
|
Remarks
1.Engine Control System: ECI (American brand);
2.Throttle: Bosch (German brand);
3.Spark plug: NGK(Japanese brand);
4.Generator master controller: Comap (Czech brand); DEIF(Danish brand); DSE(England brnad);
5.Altermator: Mecca (Italian brand); Stamford (American brand); Leroy Somer (French brand);
6.Starting mode: electric start;
7.Overhaul period: 36000h~60000h;
8.Generator type: pure copper brushless, automatic voltage regulation;
9.Operation mode: grid-connected/parallel/isolated/automatic control, etc;
Certifications & Compliance
The Jichai 600kW Natural Gas Generator complies with several industry-leading standards:
ISO 9001: Quality Management Systems
ISO 14001: Environmental Management
CE Marking: Meets European safety and performance standards
EPA Compliant: Adheres to the U.S. Environmental Protection Agency emissions standards
Frequently Asked Questions (FAQ)
1. What makes the Jichai 600kW Natural Gas Generator better than a diesel generator?
The Jichai 600kW Natural Gas Generator offers several advantages over diesel generators, including:
Lower emissions: Natural gas produces fewer pollutants and CO2 compared to diesel.
Lower fuel costs: Natural gas is often cheaper than diesel, leading to reduced operational expenses.
Environmentally friendly: Ideal for businesses looking to reduce their carbon footprint and comply with stricter emissions regulations.
2. How much fuel does the Jichai 600kW generator consume?
Fuel consumption depends on load demand and operating conditions, but the Jichai 600kW Natural Gas Generator is designed for optimal fuel efficiency. On average, it consumes around 1.5 to 2.0 cubic meters of natural gas per hour under full load. Please contact us for more precise fuel consumption data based on your operational needs.
3. How often does the Jichai 600kW generator need maintenance?
Routine maintenance should be performed regularly to ensure optimal performance. Key maintenance tasks include oil changes, air filter replacements, and cooling system checks every 500 to 1000 hours of operation. We offer comprehensive maintenance services and can help you create a customized maintenance plan.
4. Can the Jichai 600kW Natural Gas Generator be used in residential areas?
Yes, the Jichai 600kW generator is designed with low noise levels and meets emission regulations, making it suitable for installation in residential and urban environments. It's ideal for use in places where noise and air pollution are concerns, like residential neighborhoods.
5. What kind of warranty does the Jichai 600kW Natural Gas Generator come with?
The Jichai 600kW generator comes with a standard manufacturer warranty that covers engine and generator components for up to 1 to 3 years, depending on usage and maintenance. Additional warranty extensions and service packages are available.
6. Can the Jichai 600kW generator be used for both primary and backup power?
Yes, the Jichai 600kW generator is versatile and can be used for both primary power generation and as an emergency backup in case of grid failure. It's designed for continuous operation, making it suitable for both industrial and commercial applications.
