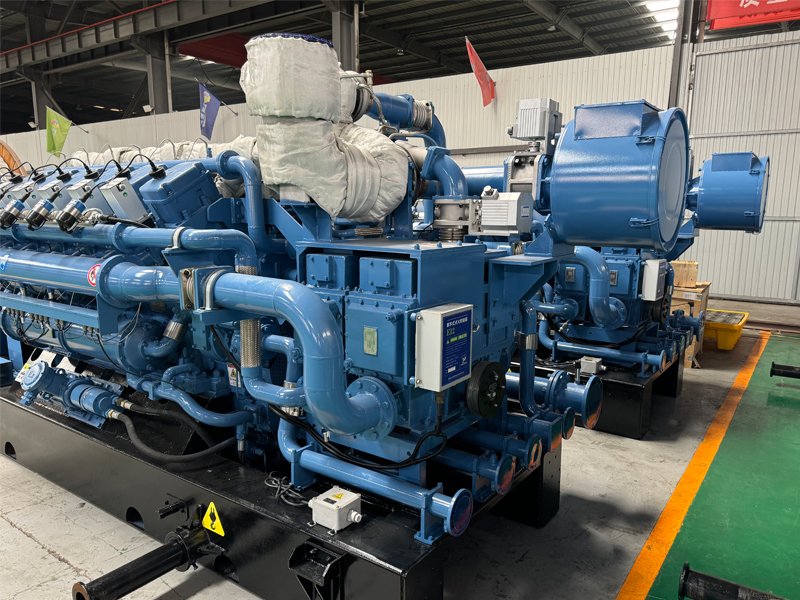

200kw Industrial Exhaust Gas Generator

Description

New modular and integrated design is relatively simple for installation and maintenance and better configuration flexibility.

Innovated dual intake system and turbocharger and in-cylinder mixing technology thoroughly solves the problem of backfire and flash explosion. Suitable for gas with high CO and H₂ .

closed-loop combustion control can adapt to the real-time vibration of gas composition and pressure.

Automatic control system makes operation more reliable with lower cost.

Inquiry Now Add to Cart

Description

Introduction to Technical Features:

Turbocharging and shunt Intake technology：

Avoiding the generation of mixed gas, the gas and air enters the cylinder isolated with no contact. At the same time, the exhaust enery from the generator will be used for turbocharing the gas and air respectively. It realizes the improvement of intake and the synchronous improvement of operation power and volume power and ensures safety operation at the same time.

From 2018 till now, the safe stayale running time is more than 30000 hours. The measured electric efficiency is more than 40% in practice - 1m3 exhaust gas generates one kilowatt-hour of electricity.

There is no carbon monoxide leakage, no backfire and flash explosion, and the genset runs smoothly. Self consumption rate is less than 2%. The operation control of the genset is automatically adjusted with the change of gas.

Technical parameters:

Model	CP22		CP21		CP11						CP14
	CP1200GFJ22		CP900GFJ21		CP700GFJ11		CP600GFJ11		CP500GFJ11		CP250GFJ14		CP200GFJ14
Electrical Output(kw)	1200		900		700		600		500		250		200
Electrical Efficiency(%)	40		38		38		36		36		35		34
Thermal Efficiency(%)	44		45		45		44		43		44		43
Total Efficiency(%)	84		83		83		80		79		79		77
Cylinder Number	16		12		12		12		12		6		6
Discharge(L)	104.34		78.25		71.45		71.45		71.45		35.7		35.7
Speed(r/min)	1000	1200	1000	1200	1000	1200	1000	1200	1000	1200	1000	1200	1000	1200
Frequency(Hz)	50	60	50	60	50	60	50	60	50	60	50	60	50	60
Length(mm)	7409		6400		6300		6300		6300		4500		4500
Width(mm)	1822		1950		1950		1950		1950		1300		1300
Height(mm)	2325		2175		2175		2175		2175		2365		2365
Weight(kg)	19000		15000		14000		13500		13500		8400		7000
