100kW Steyr LPG Generator | Compact Power for Light Industry and Backup

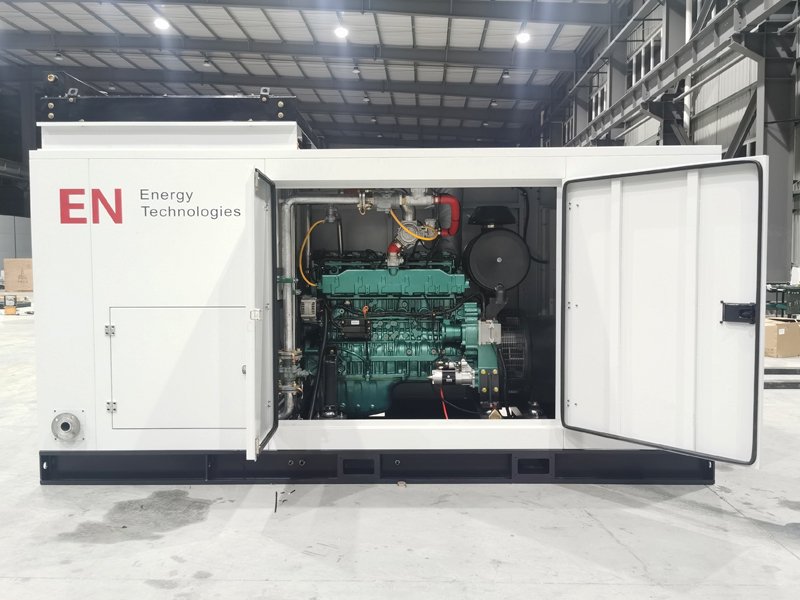

100kW steyr LPG generator power plant

Description

Rated power:100kw;

Rated current:125kVA;

Continuous power:80kw;

Frequency: 50Hz/60Hz;

Voltage: 0.4kV/0.6kV/10.5kV;

Operating noise:95dB(A)/7m;

Low heat value:Hu ≥ 90 MJ/Nm;

Reference Weight: 2500kg;

Dimensions (L×W×H): 3000mm×1250mm×1650mm;

Inquiry Now Add to Cart

Description

Product Name:100kw Steyr LPG generator set power plant

This series of products uses CNHTC-Steyr engines, which is Austrian brand.

All gas engines are designed and developed in conjunction with EN Company according to the use of various combustible gases.

The product power covers 50-1250KW. The product has the advantages of high power per unit, high reliability, low gas consumption, low noise, and strong applicability.

Features of Steyr units:

1.Highly efficient gas engine.

2.AC synchronous alternator. Gas safety train and gas protection device against leakage.

3.With cooler and Temperature Control System to make sure the unit can work normally at 50℃ environment temperature.

4.Strict shop test for all gensets. Industrial silencer with silencing ability of 12-20dB(A).

5.Advanced engine control system: ECI control system including: ignition system, speed control system , protection system，air/fuel ratio control system.

6.Independent electrical control cabinet for remote control.

7.Multi-functional control system with simple operation.

8.Data communication interfaces integrated into control system.

9.Monitoring battery voltage and charging automatically.

Noted:The product can provide special customization services. If you have any needs, please consult us.

Product Parameters:

AC Alternator data		Gas engine data
Generator Brand	Mecca	Engine Brand	CNHTC
Motor Model	ECO34 2L4A	Engine Model	T10(Steyr)
Rated Voltage(V)	415	Engine type	Inline-6-cylinders-turbocharged
Rated Power(H class)kW	120	Cylinder Bore x Stroke(mm)	126mm×130mm
Rated Capacity(H class)kVA	150	0Displacement (L)	9.726
Motor efficiency (%)/(400V)	91.9	Compression ratio	8
Power factor	0.8	Rated output power (single)	130kW-1500rpm/1800rpm
Connection Methods	D/Y	Maximum lubricant consumption (g/kW.h)	＜0.3
Rotor insulation class	H class	Minimum air intake (kg/h)	573
Rated temperature rise	F class	Ignition method	Electronically controlled single-cylinder independent high-energyignition
Excitation method	Brush-less	Fuel Control Method	Equivalent combustion, closed loop control
Rotation speed (min- 1)	1500/1800	Debugging method	Electronic commissioning
Shell protection grade	IP23

Remarks:

1.Engine Control System: ECI (American brand);

2.Throttle: Bosch (German brand);

3.Spark plug: NGK(Japanese brand);

4.Generator master controller: Comap (Czech brand); DEIF(Danish brand); DSE(England brnad);

5.Altermator: Mecca (Italian brand); Stamford (American brand); Leroy Somer (French brand);

6.Starting mode: electric start;

7.Overhaul period: 36000h~60000h;

8.Generator type: pure copper brushless, automatic voltage regulation;

9.Operation mode: grid-connected/parallel/isolated/automatic control, etc;
