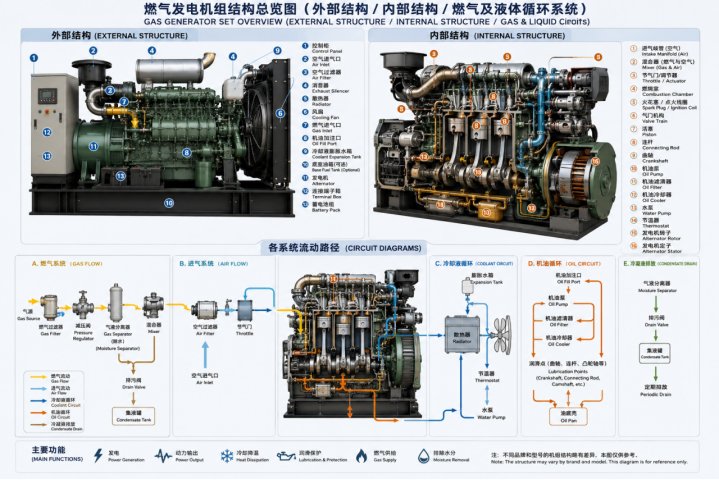

A gas generator set is a highly integrated power generation system that relies on the coordinated operation of multiple subsystems to achieve stable, efficient, and reliable electricity production. Unlike a simple combination of an engine and an alternator, a modern gas engine generator includes fuel supply, air intake, ignition, lubrication, cooling, exhaust, electrical control, and starting systems.
Understanding the structure and operating principles of a natural gas generator is essential for equipment selection, project design, operation management, and maintenance planning. This knowledge is particularly important for applications such as natural gas power generation, biogas power generation, coal bed methane utilization, associated gas recovery, and CHP （Combined Heat and Power） projects.
The fuel gas supply system is the “fuel delivery center” of a gas generator set. Its main function is to provide a stable and safe supply of fuel gas to the engine combustion chamber.
The gas supply system typically includes:
Gas pipeline
Manual valve
Solenoid valve
Gas pressure regulator
Pressure stabilizing valve
Gas mixer
Gas pressure sensor
Gas filter
Gas flow meter （optional）
The fuel gas first passes through the gas filter, where impurities and moisture are removed. The pressure regulator then adjusts the gas pressure to the required operating range of the engine.
After the control system confirms that the gas pressure is within the normal range, the solenoid valve opens and allows fuel gas to enter the mixer. The gas is then mixed with air according to the preset air-fuel ratio before entering the engine cylinders for combustion.
For more information about filtration functions in gas generator sets, see the article on the function of air, gas, oil, and coolant filters in gas generator sets.
The air intake system provides the oxygen required for combustion. It directly affects engine efficiency, power output, and emission performance.
The air intake system consists of:
Air filter
Intake piping
Turbocharger
Intercooler（for turbocharged engines）
Throttle valve
Intake pressure sensor
Intake temperature sensor
External air first passes through the air filter element to remove dust and particles. The filtered air then enters the turbocharger, where it is compressed to increase air density.
For turbocharged gas engines, the compressed air is cooled by the intercooler before entering the throttle valve. Finally, the air mixes with fuel gas and enters the combustion chamber.
For spark-ignited gas engines, the ignition system plays a critical role in combustion efficiency, fuel economy, and overall generator stability.
The ignition system includes:
Ignition controller
Ignition coil
High-voltage ignition cable
Spark plug
Crankshaft position sensor
The engine control unit （ECU） calculates the optimal ignition timing according to engine speed and operating conditions.
The ignition coil generates high voltage, which is transmitted through the high-voltage cable to the spark plug. The spark plug produces an electric spark inside the combustion chamber to ignite the air-fuel mixture.
The lubrication system acts as the “blood circulation system” of the engine. It reduces friction, minimizes mechanical wear, and removes part of the heat generated during operation.
The engine lubrication system includes:
Oil pump
Oil filter
Oil cooler
Oil pan
Oil pressure sensor
Lubrication oil piping
The oil pump draws lubricating oil from the oil pan and sends it through the oil filter to remove impurities.
The filtered oil is delivered to critical engine components, including:
Crankshaft
Connecting rods
Pistons
Camshaft
A protective oil film is formed on moving surfaces, reducing friction and wear. After lubrication, the oil returns to the oil pan for continuous circulation.
The cooling system controls engine operating temperature and prevents overheating damage during continuous operation.
The engine cooling system consists of:
Water pump
Radiator
Thermostat
Coolant
Expansion tank
Cooling fan
Coolant temperature sensor
The coolant is circulated by the water pump through the engine block and cylinder head, absorbing heat generated during combustion.
When the engine temperature is low, the coolant flows through the small circulation loop to help the engine warm up quickly.
When the temperature reaches the preset value, the thermostat opens the large circulation loop. The coolant flows to the radiator, where heat is released through forced air cooling by the fan, and then returns to the engine for continuous cooling.
The selection and condition of coolant and antifreeze are also important for maintaining stable cooling performance under different operating conditions.
The exhaust system removes combustion gases while reducing exhaust noise and controlling exhaust back pressure.
The exhaust system includes:
Exhaust manifold
Turbocharger exhaust side
Flexible expansion joint
Exhaust silencer
Exhaust pipe
Exhaust temperature sensor
High-temperature exhaust gas generated after combustion first drives the turbocharger. It then passes through the gas generator exhaust silencer, which reduces noise, before being discharged through the exhaust pipe or chimney.
For CHP （Combined Heat and Power） systems, additional heat recovery equipment can be installed:
Exhaust gas heat exchanger
Waste heat boiler
Hot water recovery system
These systems improve overall energy efficiency by utilizing waste heat from exhaust gases.
The filtration system is an essential protection system that ensures long-term reliable operation of a gas generator set.
Main components:
Air filter element
Pre-filter
Functions:
Filters incoming air before entering the engine
Prevents dust and particles from entering cylinders
Reduces engine wear and improves combustion efficiency
Main component: Oil filter element
Functions:
Removes metal particles from lubricating oil
Filters carbon deposits and impurities
Maintains clean lubrication oil and reduces component wear
Main component: Gas filter
Functions:
Removes particles from fuel gas
Filters oil contamination
Separates condensate
Ensures clean and stable fuel supply
Main component: Water filter
Functions:
Removes impurities from coolant
Reduces scale formation
Prevents cooling system blockage
Improves heat dissipation performance
The power generation system converts mechanical energy from the engine into electrical energy.
The generator system includes:
Gas engine
Alternator
Coupling
Automatic Voltage Regulator （AVR）
Excitation system
The engine burns fuel gas to generate mechanical power. The crankshaft rotates and transfers power through the coupling to drive the generator rotor.
The rotating rotor cuts magnetic field lines and produces alternating current, which is supplied to electrical loads.
For different fuel applications, EN Energy provides natural gas generator systems and biogas generator systems for power generation projects.
The electrical control system is the “brain” of the entire gas generator set. It monitors operating conditions and manages automatic control functions.
The control system includes:
Engine ECU
Generator controller
PLC system
Sensor modules
Display panel
Communication module
The system monitors:
Engine speed
Voltage
Current
Frequency
Power output
Oil pressure
Coolant temperature
Exhaust temperature
Gas pressure
The generator control system provides:
Automatic start and stop
Alarm protection
Emergency shutdown
Remote monitoring
Data recording
Parallel operation control
For more information about the role of the engine control system in gas generator operation, see what an engine control system does in a gas generator.
The starting system is responsible for starting the engine and bringing the generator set into normal operation.
The engine starting system includes:
Starter motor
Starting battery
Battery charger
Starting relay
The starting battery supplies power to the starter motor, which rotates the engine crankshaft.
When the engine speed reaches the required ignition condition, combustion begins and the engine enters normal operating mode.
A reliable gas generator set depends on the seamless cooperation of all major systems, including the fuel gas system, air intake system, ignition system, lubrication system, cooling system, filtration system, exhaust system, power generation system, control system, and starting system.
For users investing in natural gas generators, biogas generator sets, or CHP power generation solutions, understanding these systems helps improve equipment selection, optimize operation, reduce maintenance risks, and achieve lower lifecycle costs.
