The Vital Role of the Water Pump in Engine Cooling Systems: A Comprehensive Guide

In the massive architecture of an internal combustion engine—especially gas engines or large generator sets that run continuously for long hours—if the coolant is the "blood" that maintains the system's temperature, then the water pump is undoubtedly the "heart."

The water pump serves as the absolute power core within the cooling system, utilizing forced circulation to rescue the engine from catastrophic thermal failure.

1. Core Function: Forced Circulation of Coolant

Many people mistakenly believe that coolant flows inside the engine via natural convection. However, when facing combustion gases that reach thousands of degrees inside the engine, relying solely on the physics of "hot fluid rises, cold fluid sinks" is like trying to put out a forest fire with a cup of water.

The primary responsibility of the water pump is to provide powerful kinetic energy to the entire cooling loop, forcing the coolant to undergo high-speed "forced circulation" within a closed system. Its specific circulation path and operational logic are as follows:

• Out from the engine water jacket: When the engine operates, violent combustion occurs inside the cylinders, instantly accumulating massive heat in components like the cylinder liner and cylinder head. Utilizing the centrifugal force generated by high-speed rotation, the water pump forcefully draws the scorching coolant out of the narrow engine water jackets.

• Into the radiator for cooling: Driven by hydraulic pressure, the hot coolant is pushed precisely through pipes into the radiator (water tank). Here, the coolant flows through countless dense, flat cooling tubes, and the heat is rapidly dissipated via cooling fins by the cold air blown from the fan, achieving physical cooling.

• Back to the engine: The coolant that has "cooled down" in the radiator is drawn back toward the water pump inlet by negative pressure, and then re-injected into the most thermally stressed zones of the engine, ready to begin a new round of heat absorption.

The Continuous Loop

As long as the engine is running, the water pump repeats this process non-stop. This endless dynamic balance firmly locks the engine's operating temperature within the ideal range (typically 85°C to 95°C), ensuring that mechanical components do not deform due to thermal expansion and contraction.

2. What Would Happen Without a Water Pump?

If the water pump stops working due to worn bearings, a damaged impeller, or a broken drive belt, the entire engine will paralyze in an extremely short period. This is not just a single component failure, but a catastrophic domino effect:

• Coolant Barely Flows: Lacking the thrust of the water pump, the coolant instantly turns into "stagnant water." Although slight natural convection occurs due to temperature differentials, this flow rate is nowhere near enough to meet the cooling demands of a high-load engine.

• Heat Cannot Be Carried Away: The coolant surrounding the cylinder walls will heat up to its boiling point within seconds, boiling violently and generating a large volume of gaseous vapor. Vapor has extremely poor thermal conductivity, causing the ferocious heat accumulated inside the cylinders to be trapped within the engine.

• Engine Overheats Rapidly: As heat continues to pile up, the temperature gauge on the dashboard will skyrocket straight into the "red zone." Due to localized extreme temperatures, the engine oil inside the lubrication system will thin out or even scorch and degrade, completely losing its lubricating capabilities.

• Triggers Shutdown Protection or Damage: For modern, highly intelligent gas generator sets or high-end gas engines, the control system will immediately trigger automatic shutdown protection, forcefully halting operations and causing unexpected power outages or financial losses.

  In older models lacking such protection, overheating will lead to horrific mechanical accidents: pistons expanding excessively due to the extreme heat and seizing inside the cylinder (commonly known as "cylinder scoring" or "bearing seizure"), or even cracking the cylinder head and scrapping the entire engine block.

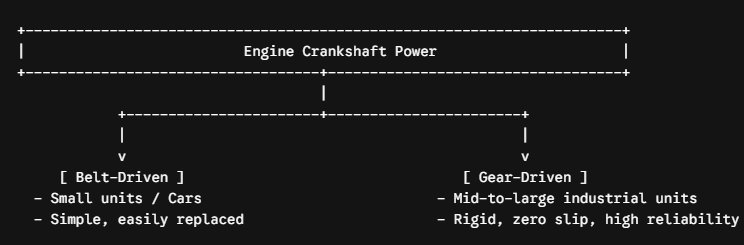

3. In-Depth Comparison of Drive Methods

In industrial and automotive engineering, to ensure that the water pump operates stably and efficiently, engineers utilize two primary drive methods based on engine size and application scenarios:

3.1 Belt-Driven (Common in small units and passenger vehicles)

Belt-driven systems transmit power from the engine crankshaft pulley to the water pump pulley using a rubber belt (such as a serpentine belt or cogged belt), thereby driving the water pump impeller.

• Advantages: The structural design is relatively simple with lower manufacturing costs. When the system experiences abnormal shock, the belt provides a cushioning effect. Future maintenance and replacement are highly convenient, and the wear of the belt can be directly inspected with the naked eye.

• Disadvantages: The rubber material is prone to aging, posing risks of slippage and breakage. If the belt slips during operation, the water pump speed drops, leading to insufficient coolant flow—a latent hazard for equipment requiring 24/7 continuous high-load operations.

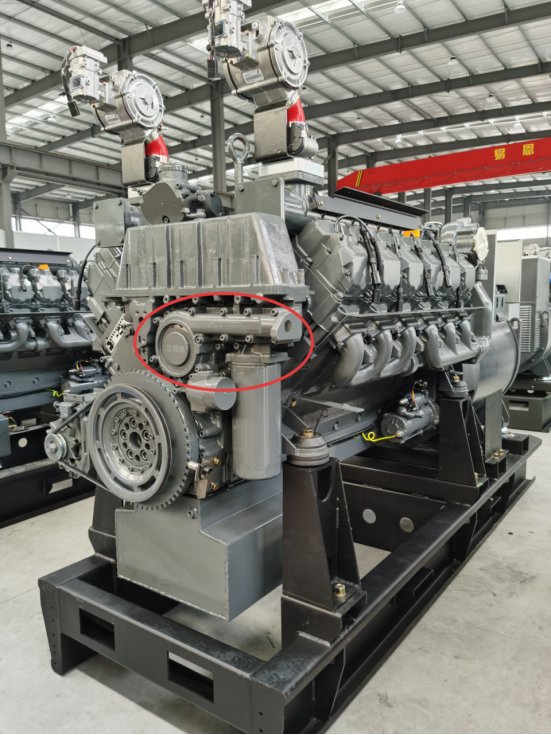

3.2 Gear-Driven (Standard for medium to large industrial units and gas engines)

Gear-driven systems involve engaging the water pump's drive gear directly with the engine's internal gear train (such as the timing gear train), achieving a purely mechanical, rigid transmission.

• Advantages: The transmission is highly efficient and absolutely reliable. It eliminates any possibility of slippage and can withstand massive torque and high-intensity industrial shocks. In gas generator sets operating under long-term, high-load conditions, gear drive ensures that the water pump speed remains perfectly synchronized with the crankshaft speed, providing a relentless, stable flow.

• Disadvantages: The structure is complex, demanding extremely high machining precision and assembly craftsmanship, which results in higher manufacturing costs. Concealed inside the engine gear housing, it presents greater difficulty for disassembly and repair in the event of a failure.

4. Summary: The Golden Rules to Protect the "Heart"

Through this analysis, we can clearly see that as the power source of coolant circulation, the operational state of the water pump directly determines the survival of the entire engine. However, whether the water pump enjoys a long and healthy lifespan also depends heavily on the fluid it swallows daily—which is why using plain water in an engine is strictly discouraged.

If one blindly adds tap water or inferior coolant, the impeller inside the water pump will quickly suffer from scaling, chemical corrosion, and the dreaded cavitation. When the micro-bubbles generated by cavitation collapse at high speeds, the resulting shockwaves act like miniature bombs, riddling the water pump's metal impeller with pits and holes, completely destroying the component.

Therefore, to ensure this "power heart" beats strongly forever, please make sure to use pre-mixed coolant that complies with the engine manufacturer's (OEM) technical specifications. Only high-quality coolant that prevents freezing, boiling, corrosion, and cavitation can provide the finest lubrication and protection for the water pump, guaranteeing that your generator set or gas engine remains stable through thousands of continuous running hours.
