Core Advantages
Superior Combustion Technology: The 800kW Shangchai natural gas generator set employs an optimised combustion system that significantly enhances fuel efficiency, not only conserving energy but also reducing operational costs.
Adaptability to High-Load Environments: This generator set is particularly suited for locations requiring sustained, stable power supply under heavy loads, such as large manufacturing plants and shopping centres. It maintains reliable power delivery even during periods of significant demand fluctuations.
Comprehensive Energy Efficiency: The low cost and clean properties of natural gas provide this generator set with a significant cost advantage over traditional diesel units during long-term operation, while also reducing emissions of carbon dioxide and other harmful gases.
Quiet Operation Design: Despite its substantial power output, the equipment maintains effective noise control. Even under heavy loads, noise levels remain within reasonable limits, making it suitable for environments with strict noise requirements.
Remote Monitoring and Intelligent Management: The integrated intelligent control system enables users to monitor operational status in real time, facilitating prompt adjustments and fault resolution. This minimises manual intervention and reduces maintenance costs.

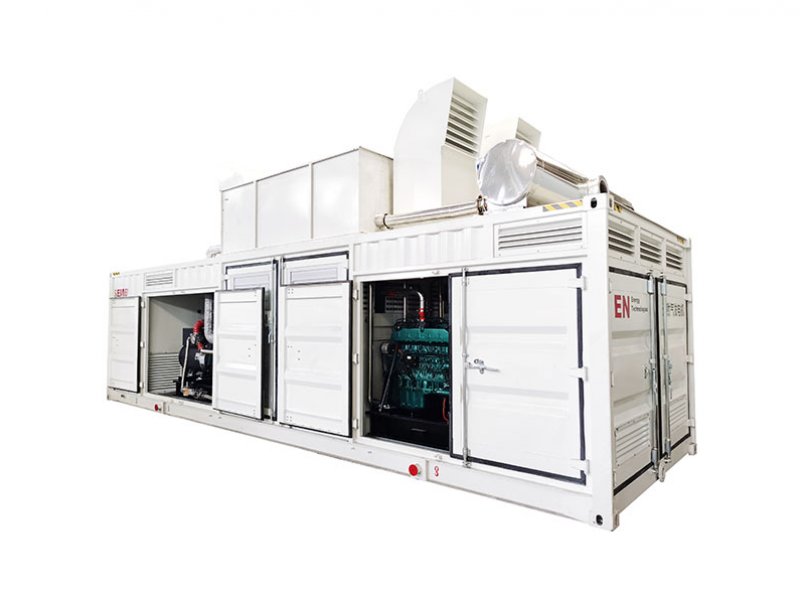

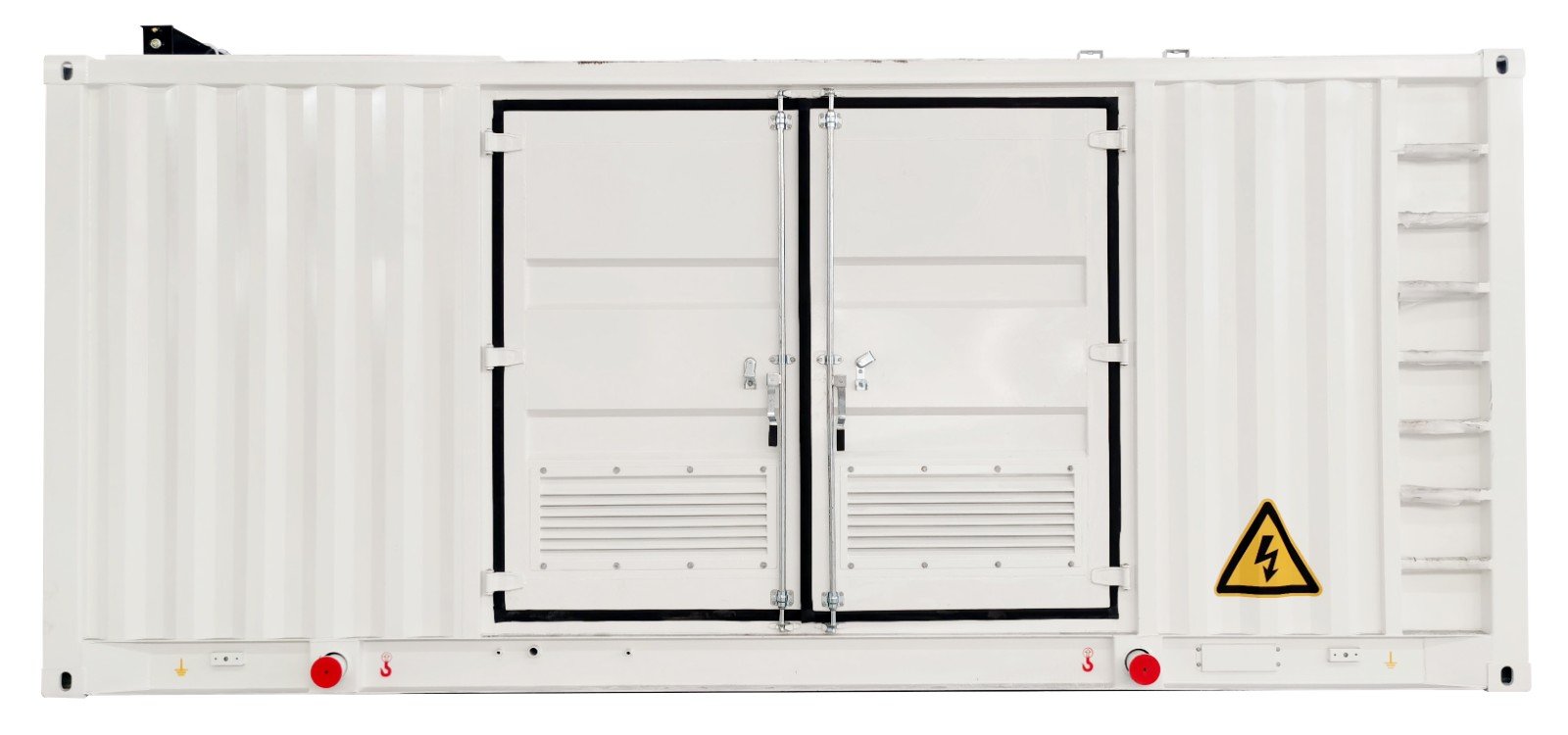

Product Name:800kw Shangchai Natural gas generator set power plant
This series of products uses Shangchai Engine.
All gas engines are designed and developed in conjunction with EN Company according to the use of various combustible gases.
The product power covers 50-1500KW. The product has the advantages of high power per unit, high reliability, low gas consumption, low noise, and strong applicability.
Features of Shangchai units
1.Highly efficient gas engine.
2.AC synchronous alternator. Gas safety train and gas protection device against leakage.
3.With cooler and Temperature Control System to make sure the unit can work normally at 50℃ environment temperature.
4.Strict shop test for all gensets. Industrial silencer with silencing ability of 12-20dB(A).
5.Advanced engine control system: ECI control system including: ignition system, speed control system , protection system，air/fuel ratio control system.
6.Independent electrical control cabinet for remote control.
7.Multi-functional control system with simple operation.
8.Data communication interfaces integrated into control system.
9.Monitoring battery voltage and charging automatically.
Noted:The product can provide special customization services. If you have any needs, please consult us.
| Item | Details |
| Rated Power | 800kW |
| Rated Current | 625kVA |
| Continuous Power | 800kW |
| Frequency | 50Hz/60Hz |
| Voltage | 0.4kV/0.6kV/10.5kV |
| Operating Noise | 95dB(A)/7m |
| Methane Content | >85% |
| Low Heat Value | Hu ≥ 31.4MJ/Nm |
| Reference Weight | 5980kg |
| Dimensions (L×W×H) | 4500mm×2200mm×2600mm |
Fields of Application
The 800kW Shangchai natural gas generator set finds extensive application across industries requiring substantial power support, particularly in the following sectors:
Large-scale industrial production: Serving sectors such as steel, chemical processing, and mining that demand sustained, stable power supply to ensure uninterrupted production processes.
Commercial complexes: Such as large shopping centres and office buildings, ensuring business continuity and mitigating operational disruptions caused by power outages.
Emergency standby power: Providing critical facilities including hospitals, banks, and government agencies with emergency power support to guarantee supply during unexpected blackouts.
Data centres: Delivering efficient, clean backup power to enterprises requiring 24/7 uninterrupted electricity, preventing data loss and system downtime.
Remarks:
1.Engine Control System: ECI (American brand);
2.Throttle: Bosch (German brand);
3.Spark plug: NGK(Japanese brand);
4.Generator master controller: Comap (Czech brand); DEIF(Danish brand); DSE(England brnad);
5.Altermator: Mecca (Italian brand); Stamford (American brand); Leroy Somer (French brand);
6.Starting mode: electric start;
7.Overhaul period: 36000h~60000h;
8.Generator type: pure copper brushless, automatic voltage regulation;
9.Operation mode: grid-connected/parallel/isolated/automatic control, etc;
FAQ (Frequently Asked Questions)
(a) How do natural gas generator sets achieve cost savings?
Natural gas generator sets reduce fuel costs by utilising cheaper and cleaner fuel (natural gas). Compared to conventional diesel engines, natural gas exhibits more stable fuel pricing and lower emissions, thereby reducing environmental levies and maintenance expenses.
(b) How does the 800kW Shangchai natural gas generator set ensure prolonged stable operation?
This unit incorporates a high-performance Shangchai engine, ensuring consistent performance during prolonged operation. Additionally, it features an intelligent monitoring system that continuously tracks operational parameters and adjusts settings in real-time, guaranteeing sustained stability.
(c) For which industrial environments is this generator set suitable?
The 800kW Shangchai natural gas generator set is suitable for diverse industrial settings, particularly factories and manufacturing enterprises requiring high-load capacity and sustained, stable operation.
(d) Is the 800kW natural gas generator set environmentally friendly?
Yes. As a fuel, natural gas produces lower carbon dioxide and particulate matter emissions compared to diesel and coal. It complies with international environmental emission standards, helping businesses reduce their carbon footprint.
