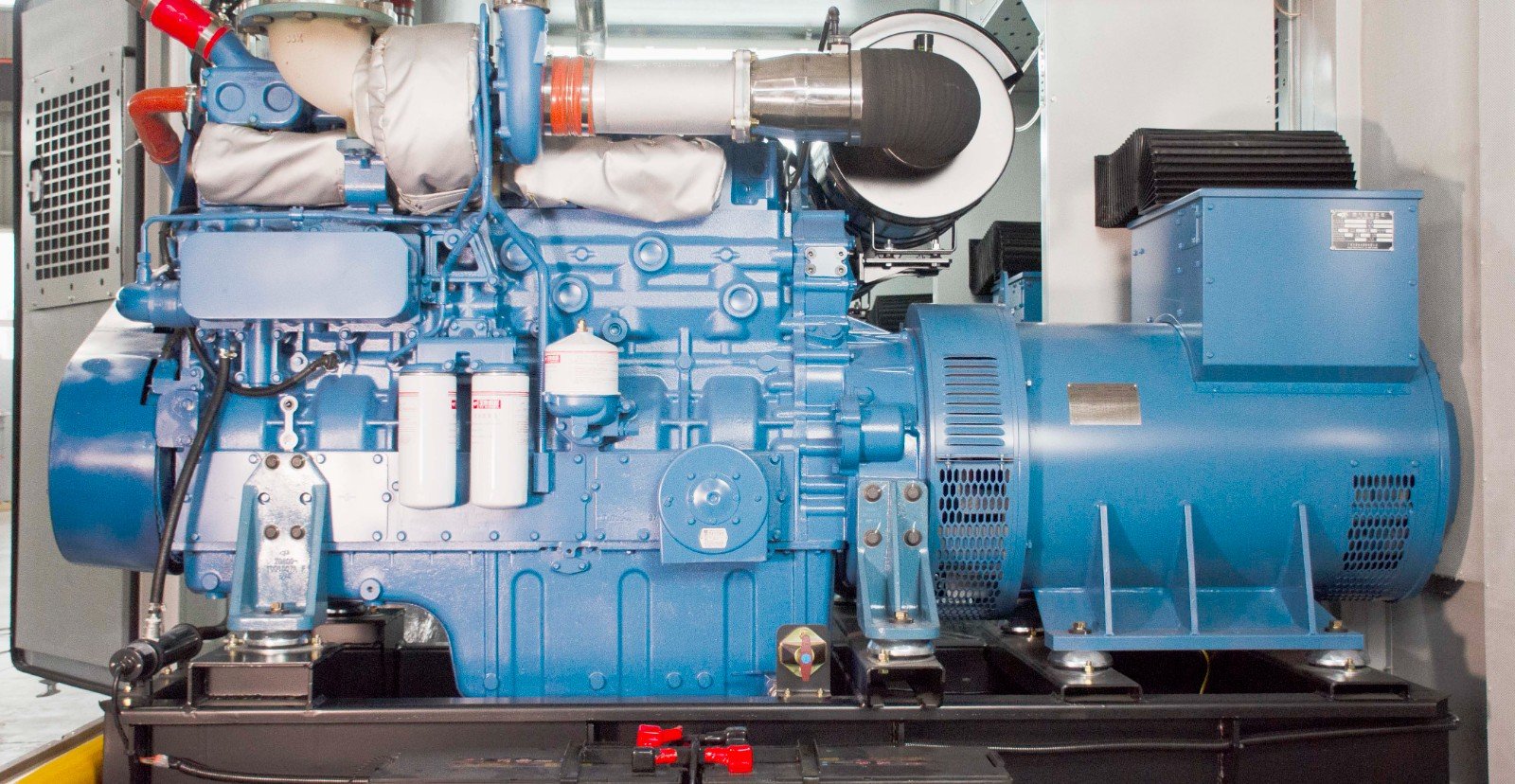

Product Name: 1500kw Yuchai Natural gas generator set power generation energy equipment
Product name:1500kw Yuchai natural gas generator set power generation energy equipment
This series of products uses Yuchai engines developed and produced using Chinese technology.
The engine, generator and control system components are all first-line brands at home and abroad.
Why 4 Units in Parallel?
Scalable Power: 4×1.5MW = 6MW total output, flexible to adjust running units by load (e.g., 2 units for 3MW at night, 4 units for 6MW peak hours), saving 20-25% fuel vs. a single 6MW generator.
Redundancy Security: If 1 unit fails, the remaining 3 auto-distribute load within 0.5s, ensuring no power interruption—critical for data centers, hospitals, and continuous-production factories.
Easy Expansion: Start with 2 units (3MW) and add 2 more later; compatible with Yuchai’s standard parallel controller, no need to replace the whole system.
Features of Yuchai units:
1. Stable and reliable, with strong continuous operation capability
Yuchai engines are known for their durability and are particularly suitable for long-term uninterrupted operation;
The unit structure is optimized, with good overload resistance, suitable for complex environments such as high temperature and high altitude.
2. Good fuel economy
The engine has high thermal efficiency and low fuel consumption;
At the same power, the operating cost is 5-10% lower than that of imported brands.
3. Wide power range coverage
The power range is from 20kW to 2400kW;
It can be used in civil, industrial, data centers, base stations, power stations, farms and other scenarios.
4. Adequate supply of accessories and convenient maintenance
Yuchai has service outlets in many countries around the world;
The parts are highly versatile, easy to purchase and replace, and easy for maintenance personnel to use.
5. Fast power response and good starting performance
It starts quickly and can carry full load within 30 seconds;
The load response time is short, suitable for use as an emergency power supply.
6. Complete categories and various forms
Can be equipped with silent boxes, rain covers, trailers, power station containers, etc.;
Supports intelligent needs such as automatic switching, parallel operation, and remote monitoring
Noted:The product can provide special customization services. If you have any needs, please consult the manufacturer;
Product Parameters:
AC Alternator data | Gas engine data |
Generator Brand | Mecca | Engine Brand | Yuchai |
Motor Model | ECO40 3S4 C | Engine Model | YC6C935N-D30 |
Rated Voltage(V) | 400 | Engine type | 6 cylinders inline, Exhaust turbocharger with water-cooled turbine housing |
Rated Power(H class)kW | 400 | Cylinder Bore x Stroke(mm) | 152mm×180mm
|
Rated Capacity(H class)kVA | 500 | Displacement (L) | 19.6 |
Motor efficiency (%)/(400V) | 94.8 | Compression ratio | 11.5 |
Power factor | 0.8 | Rated output power (single) | 440kW/1500rpm |
Connection Methods | D/Y | Maximum lubricant consumption (g/kW.h) | ＜0.3 |
Rotor insulation class | H class | Minimum air intake (kg/h) | 2733 |
Rated temperature rise | F class | Ignition method | Electronically controlled single- cylinder independent high-energy ignition |
Excitation method | Brush-less | Fuel Control Method | Equivalent combustion, closed loop control |
Rotation speed (min- 1) | 1500 | Debugging method | Electronic commissioning |
Shell protection grade | IP23 | Cooling method | Forced water cooling |
Industry Application Scenarios
Industrial Parks: Powers 50+ medium factories (machinery, electronics, textiles) with stable 6MW supply; connects to park’s natural gas pipeline, avoiding diesel storage risks.
Municipal Backup: Acts as emergency power for cities during grid failures, supporting traffic lights, water pumps, and public facilities for 72+ hours (with 10,000m³ gas storage).
Renewable Energy Complement: Partners with solar/wind farms—stabilizes intermittent renewable power (e.g., compensates for 20% wind power fluctuations) via fast load response (<2s).
Oil & Gas Fields: Runs on associated gas (methane 85-90%) from oil extraction, reducing flaring waste and cutting fuel costs by 60% vs. diesel.
Remarks:
1.Engine Control System: ECI (American brand);
2.Throttle: Bosch (German brand);
3.Spark plug: NGK(Japanese brand);
4.Generator master controller: Comap (Czech brand); DEIF(Danish brand); DSE(England brnad);
5.Starting mode: electric start;
6.Overhaul period: 30000h;
7.Generator type: pure copper brushless, automatic voltage regulation;
8.Operation mode: grid-connected/parallel/isolated/automatic control, etc;
Frequently Asked Questions
Q: What gas types can the generator use?
A: It runs on natural gas (methane ≥80%), associated gas, and biogas (with optional pretreatment).
Q: How long does parallel installation take?
A: 4 units can be installed and commissioned within 7 days (including cable connection and system testing).
Q: Is remote monitoring available?
A: Yes—YC Smart Monitor tracks runtime, fuel consumption, and faults via app/PC, reducing on-site checks by 70%.
