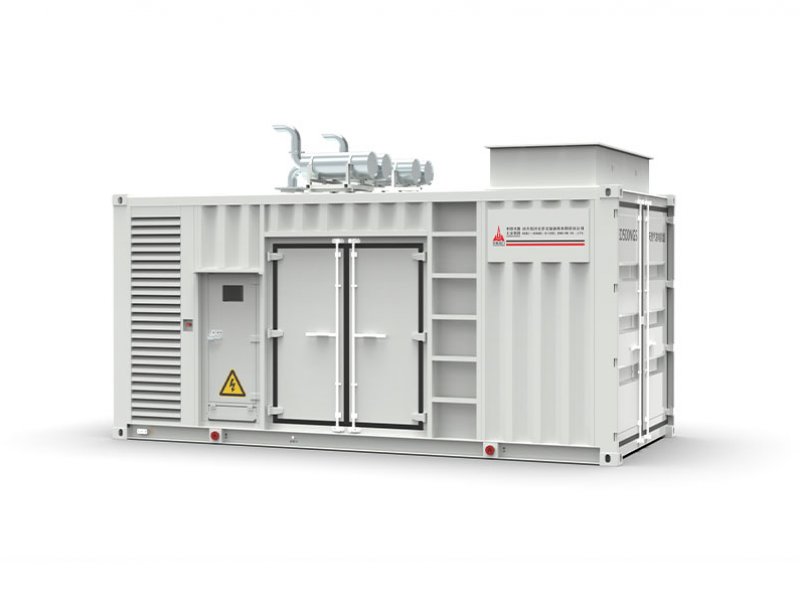

Key Features of the 500kW Perkins Generator
Power Output: 500kW at 50Hz / 60Hz
Fuel Type: Natural Gas
Emission Compliance: Meets stringent emissions standards (Tier 4 Final / EPA approved)
Durability: Built for continuous operation and low maintenance requirements
Efficiency: Low fuel consumption for long-term savings
Cooling System: Advanced cooling system for high temperatures
Control Panel: User-friendly digital control panel for easy operation and monitoring
Warranty: Comprehensive warranty options for peace of mind
Applications of the 500kW Perkins Natural Gas Generator
Industrial Applications: Ideal for large manufacturing facilities and data centers.
Commercial Power Backup: Provides reliable power for businesses in case of grid failure.
Sustainable Energy Solutions: Perfect for companies focusing on green energy and reducing their carbon footprint.
Remote Locations: Can be used in off-grid areas to provide power where traditional sources are unavailable.
Technical Specifications
| Item | Details |
| Rated Power | 500kW |
| Rated Current | 625kVA |
| Continuous Power | 400kW |
| Frequency | 50Hz/60Hz |
| Voltage | 0.4kV/0.6kV/10.5kV |
| Operating Noise | 95dB(A)/7m |
| Methane Content | >85% |
| Low Heat Value | Hu ≥ 31.4MJ/Nm |
| Weight | 2800kg |
| Dimensions (L×W×H) | 2900mm×1200mm×1650mm |
Remarks:
1.Engine Control System: ECI (American brand);
2.Throttle: Bosch (German brand);
3.Spark plug: NGK(Japanese brand);
4.Generator master controller: Comap (Czech brand); DEIF(Danish brand); DSE(England brnad);
5.Altermator: Mecca (Italian brand); Stamford (American brand); Leroy Somer (French brand);
6.Starting mode: electric start;
7.Overhaul period: 36000h~60000h;
8.Generator type: pure copper brushless, automatic voltage regulation;
9.Operation mode: grid-connected/parallel/isolated/automatic control, etc;
