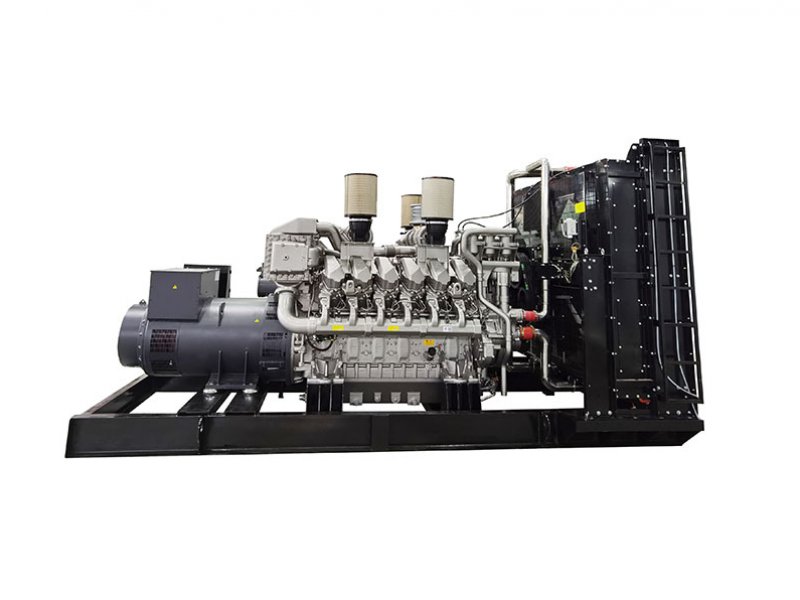

Product Name:450kw Jichai Natural gas generator set power generation energy equipment
This series of products uses Jichai engines.
All gas engines are designed and developed in conjunction with EN Company according to the use of various combustible gases.
The product power covers 200-4000KW. The product has the advantages of high power per unit, high reliability, low gas consumption, low noise, and strong applicability.
How It Works: The Technology Behind the Jichai 450kW Natural Gas Generator
The Jichai generator operates on the internal combustion engine principle, where natural gas is mixed with air and ignited in the engine’s combustion chamber to produce rotational energy. This energy turns the alternator, which generates electrical power.
Key components include:
Gas Control System: Optimizes fuel usage for maximum efficiency.
Cooling System: Maintains optimal operating temperatures to ensure the engine runs smoothly and extends its lifespan.
Generator Control Panel: Monitors and controls various functions of the generator, such as voltage output, frequency, and load.
Features of Jichai units:
1.Highly efficient gas engine.
2.AC synchronous alternator. Gas safety train and gas protection device against leakage.
3.With cooler and Temperature Control System to make sure the unit can work normally at 50℃ environment temperature.
4.Strict shop test for all gensets. Industrial silencer with silencing ability of 12-20dB(A).
5.Advanced engine control system: ECI control system including: ignition system, speed control system , protection system，air/fuel ratio control system.
6.Independent electrical control cabinet for remote control.
7.Multi-functional control system with simple operation.
8.Data communication interfaces integrated into control system.
9.Monitoring battery voltage and charging automatically.
Noted:The product can provide special customization services. If you have any needs, please consult the manufacturer.
Product Parameters:
AC Alternator data | Gas engine data |
Generator Brand | 500GF-T3 | Engine Brand | Jichai |
Motor Model | 2L4 | Engine Model | 12V190ZLDT-2 |
Rated Voltage(V) | 400 | Engine type | V12 cylinders-turbocharged |
Rated Power(H class)kW | 500 | Cylinder Bore x Stroke(mm) | 190mm×210mm |
Rated Capacity(H class)kVA | 625 | Displacement (L) | 71.5 |
Motor efficiency (%)/(400V) | 95 | Compression ratio | 11.5 |
Power factor | 0.8 | Rated output power (single) | 550kW-1000rpm |
Connection Methods | D/Y | Maximum lubricant consumption (g/kW.h) | ＜1 |
Rotor insulation class | H class | Minimum air intake (kg/h) | 1824 |
Rated temperature rise | F class | Ignition method | Electronically controlled single-cylinder independent high-energyignition |
Excitation method | Brush-less | Fuel Control Method | Equivalent combustion, closed loop control |
Rotation speed (min- 1) | 1000 | Debugging method | Electronic commissioning |
Shell protection grade | IP23 |
|
|
Why Choose the Jichai 450kW Natural Gas Generator?
1. Environmental Benefits
One of the key selling points of the Jichai 450kW generator is its low environmental impact. Compared to diesel or coal-powered generators, natural gas generators significantly reduce carbon emissions and pollutants. By using natural gas as fuel, you are contributing to a cleaner environment while reducing your carbon footprint.
Reduced CO2 emissions: Up to 30% lower than diesel generators.
Low NOx emissions: Meets international emissions standards.
Minimal particulate matter: Helps maintain cleaner air quality in the surrounding environment.
2. Fuel Efficiency & Cost-Effectiveness
The Jichai natural gas generator is designed to operate efficiently, converting more of the fuel's energy into usable electricity. This makes it a cost-effective option for long-term power needs, especially in industries where energy costs are a significant concern. Additionally, natural gas tends to be cheaper and more abundant than other fuels, ensuring lower operational costs.
3. Durability & Reliability
Jichai has long been recognized for producing high-quality, durable engines that stand up to the rigors of continuous operation. The 450kW generator is no exception, designed with advanced cooling systems and sophisticated engine technology to deliver consistent and reliable power over time.
Heavy-duty construction for longevity.
Designed to withstand extreme conditions.
High MTBF (Mean Time Between Failures) ensures minimal downtime.
4. Versatility
The Jichai 450kW generator can be used across various applications:
Industrial Plants: Reliable power for production lines and manufacturing facilities.
Commercial Enterprises: Ensures continuity of operations for businesses like shopping malls, office buildings, and hotels.
Backup Power: Ideal for use as an emergency power supply in case of grid failure.
Remote Locations: Perfect for off-grid locations needing reliable power.
Maintenance and Support
Proper maintenance of your Jichai 450kW generator will ensure it continues to perform efficiently and reliably. Regular servicing is key to minimizing downtime and extending the lifespan of the generator. Some maintenance tips include:
Regular Oil Changes: Keep the engine lubricated to prevent wear and tear.
Air Filter Replacement: Ensure optimal air intake for combustion efficiency.
Cooling System Checks: Monitor coolant levels and temperature to prevent overheating.
Periodic Engine Diagnostics: Have qualified technicians run diagnostics to check engine health.
We offer comprehensive support services, including installation, regular maintenance checks, and 24/7 customer service.
Applications
The 450kW Jichai natural gas generator is designed for a variety of applications:
Emergency Power Backup: Ensure continuity of operations during grid outages.
Industrial Facilities: Power production lines, machinery, and equipment.
Commercial Buildings: Serve as a reliable backup for office buildings, malls, hotels, and more.
Off-Grid Locations: Ideal for remote areas where access to a reliable power grid is limited.
Certifications & Compliance
The Jichai 450kW natural gas generator complies with global environmental and safety standards, including:
ISO 9001: Quality Management Systems
ISO 14001: Environmental Management Systems
CE Certification: Meets European Union standards for safety and performance.
EPA Compliant: Meets U.S. Environmental Protection Agency emissions standards.
