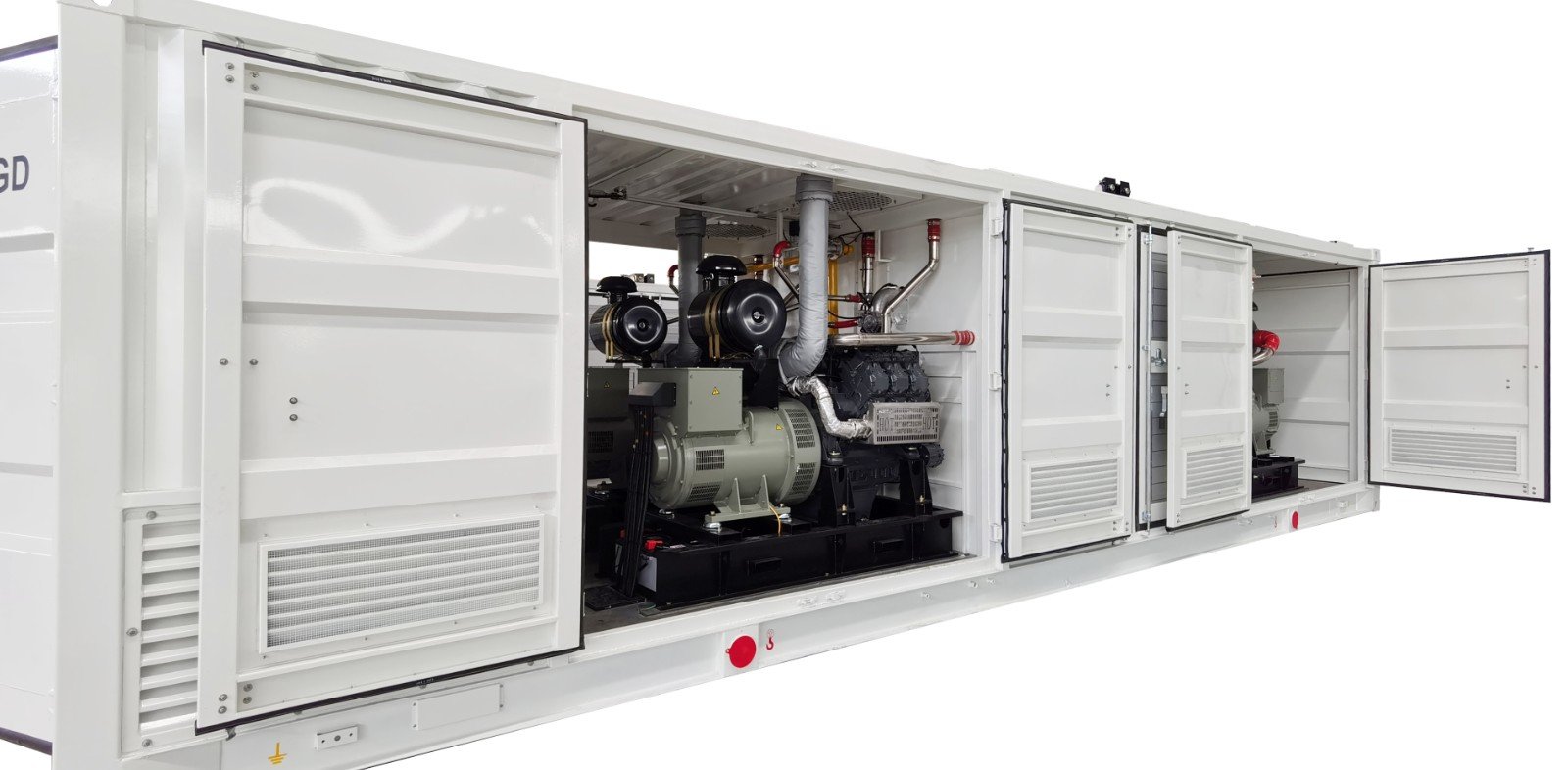

Features of Shangchai units:
1.Highly efficient gas engine.
2.AC synchronous alternator. Gas safety train and gas protection device against leakage.
3.With cooler and Temperature Control System to make sure the unit can work normally at 50℃ environment temperature.
4.Strict shop test for all gensets. Industrial silencer with silencing ability of 12-20dB(A).
5.Advanced engine control system: ECI control system including: ignition system, speed control system , protection system，air/fuel ratio control system.
6.Independent electrical control cabinet for remote control.
7.Multi-functional control system with simple operation.
8.Data communication interfaces integrated into control system.
9.Monitoring battery voltage and charging automatically.
Noted:The product can provide special customization services. If you have any needs, please consult us.
Technical Specifications
| Item | Details |
| Rated Power | 300kw |
| Rated Current | 375kVA |
| Continuous Power | 240kW |
| Frequency | 50Hz/60Hz |
| Voltage | 0.4kV/0.6kV/10.5kV |
| Operating Noise | 95dB(A)/7m |
| Methane Content | >85% |
| Low Heat Value | Hu ≥ 31.4MJ/Nm |
| Reference Weight | 3440kg |
| Dimensions (L×W×H) | 4500mm×1500mm×2200mm |
Fields of Application

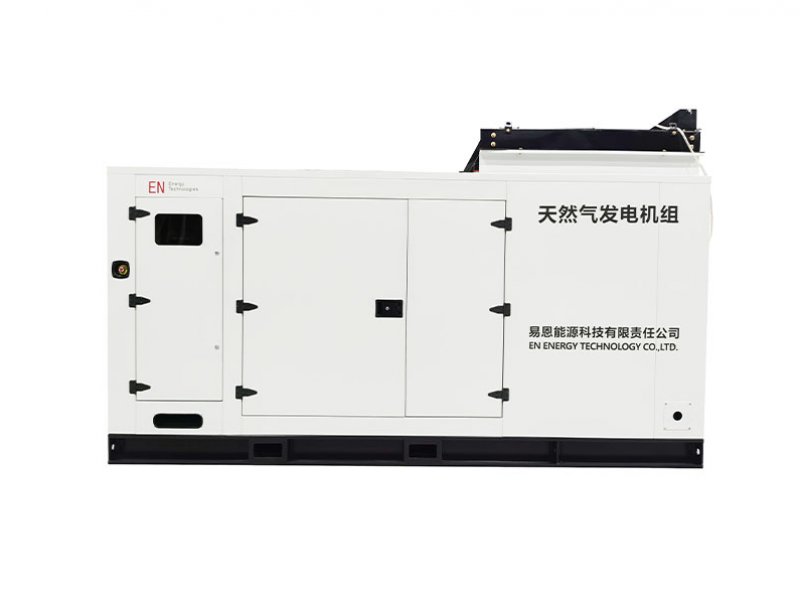

The 300kW Shangchai natural gas generator set is ideally suited for the following applications:
Industrial Production: Provides stable power supply for medium-sized factories and manufacturing facilities, ensuring continuous operation of production lines.
Commercial Use: Serves as backup power for large shopping centres, hotels and other commercial premises, guaranteeing uninterrupted operation of critical equipment.
Emergency Power: Functions as reliable standby power for facilities with stringent power requirements, such as hospitals and data centres.
Regional Grid Supplementation: Provides additional power support in high-load grid environments, aiding in the stabilisation of grid supply.
Remarks:
1.Engine Control System: ECI (American brand);
2.Throttle: Bosch (German brand);
3.Spark plug: NGK(Japanese brand);
4.Generator master controller: Comap (Czech brand); DEIF(Danish brand); DSE(England brnad);
5.Altermator: Mecca (Italian brand); Stamford (American brand); Leroy Somer (French brand);
6.Starting mode: electric start;
7.Overhaul period: 36000h~60000h;
8.Generator type: pure copper brushless, automatic voltage regulation;
9.Operation mode: grid-connected/parallel/isolated/automatic control, etc;
FAQ (Frequently Asked Questions)
(a) What are the advantages of natural gas generator sets?
The primary advantages of natural gas generator sets include low emissions, stable fuel supply, lower operating costs, and extended service life. Compared to diesel generators, natural gas units offer greater environmental sustainability and align with the energy requirements of modern enterprises.
(b) Does the 300kW Shangchai natural gas generator set require special maintenance?
The Shangchai engine technology employed in the 300kW Shangchai natural gas generator set has undergone rigorous testing, with its design minimising maintenance complexity. Routine checks, gas system cleaning, and air filter replacements constitute the daily maintenance required to ensure stable operation.
(c) What is the noise level of this generator?
The noise level of the 300kW Shangchai natural gas generator set typically ranges between 70-75 decibels. This makes it suitable for various industrial and commercial applications while also meeting the requirements of quieter environments.
