Turn Waste Into Power: 250kW Deutz Biogas Generator for Farms and Industry

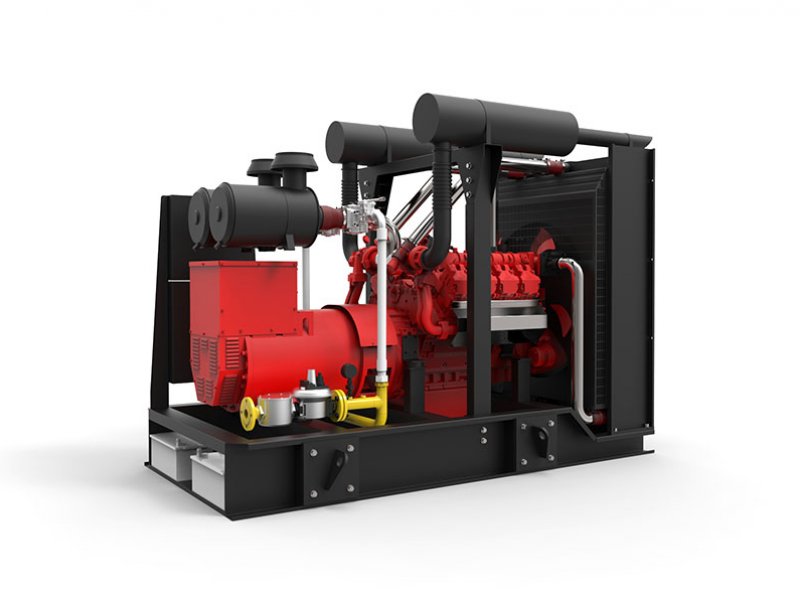

250kw HC8V132 Deutz Biogas generator power plant

Description

The 250KW HC8V132 Deutz Biogas Generator Power Plant is a high-performance, environmentally friendly energy solution that efficiently generates electricity from renewable biogas. Powered by the reliable HC8V132 Deutz engine, this generator is perfect for a wide range of applications, including agricultural operations, industrial facilities, and waste-to-energy projects. It offers a cost-effective way to reduce dependency on traditional fossil fuels while helping businesses meet sustainability goals. Designed for durability and optimal fuel efficiency, this biogas generator provides a reliable and sustainable power source for long-term use.

Rated power:250kW;

Rated current:300kVA;

Continuous power: 225kW;

Frequency:50/60Hz;

Voltage:0.4kV/0.6kV/10.5kV;

Operating noise:95dB(A)/7m;

Methane content:>60%;

Low heat value:Hu ≥ 16MJ/Nm;

Gas intake pressure:3.5Kpa~100Kpa(Configure according to project requirements);

Weight:8500kg;

Deminsions(LxW×H):6058mm×2438mm×4700mm;

This series of units are small in size and can be used and transported in containers. One container can hold 2MW.

They have good sudden load performance, short warm-up time, continuous use efficiency of 90%, and thermal efficiency of up to 40%.

Inquiry Now Add to Cart

Description

Product Features

Powerful Output: The 250KW generator delivers reliable, consistent power, making it ideal for small to medium-sized operations that require a sustainable, high-performance energy solution.
Deutz Engine Technology: Equipped with the HC8V132 Deutz engine, known for its excellent fuel efficiency, long-lasting performance, and minimal maintenance needs, even in harsh conditions.
Biogas Flexibility: This generator can run on a variety of biogas fuels, including methane from agricultural waste, landfill gas, and other organic waste, offering flexibility in fuel sourcing.
Eco-Friendly Operation: The use of biogas as fuel significantly reduces greenhouse gas emissions and provides a cleaner alternative to fossil fuel-based power generation.
Durability and Reliability: Built to withstand demanding environments, the Deutz engine ensures minimal downtime and a long service life with low maintenance requirements.

Product Parameters

AC Alternator data		Gas engine data
Generator Brand	KWISE	Engine Brand	Huachai-Deutz
Motor Model	KAL354B1	Engine Model	HC12V132
Rated Voltage(V)	400	Engine type	V-bank-12 cylinders-turbocharged
Rated Power(H class)kW	400	Cylinder Bore x Stroke(mm)	132mm×145mm
Rated Capacity(H class)kVA	500	Displacement (L)	23.5
Motor efficiency (%)/(400V)	94.5	Compression ratio	11.5
Power factor	0.8	Rated output power (single)	450kW-1500rpm/1800rpm
Connection Methods	D/Y	Maximum lubricant consumption (g/kW.h)	＜0.3
Rotor insulation class	H class	Minimum air intake (kg/h)	2290
Rated temperature rise	F class	Ignition method	Electronically controlled single-cylinder independent high-energyignition
Excitation method	Brush-less	Fuel Control Method	Equivalent combustion, closed loop control
Rotation speed (min- 1)	1500/1800	Debugging method	Electronic commissioning
Shell protection grade	IP23	Cooling method	Forced water cooling

Applications

Agricultural Operations: Perfect for agricultural operations that generate biogas from organic waste such as manure and crop residues, providing a cost-effective and sustainable power source.
Industrial Applications: Ideal for small to medium-sized industrial facilities that need reliable, eco-friendly power, such as food processing or manufacturing plants.
Waste-to-Energy Projects: The 250KW Deutz Biogas Generator is perfect for converting organic waste into clean, renewable electricity, supporting waste-to-energy initiatives and reducing landfill waste.

Environmental Benefits

Reduction of Greenhouse Gas Emissions: By using biogas, the generator helps prevent methane from being released into the atmosphere, reducing the impact of greenhouse gas emissions and supporting climate change mitigation efforts.
Sustainable Power Generation: The biogas-powered generator provides a renewable energy solution that reduces reliance on fossil fuels, helping businesses achieve sustainability goals.
Low Emissions: The Deutz engine is designed to operate with low emissions, ensuring compliance with international environmental standards and contributing to a cleaner environment.

Energy Efficiency and Economic Benefits

Cost-Effective Operation: The 250KW HC8V132 Deutz Biogas Generator is highly fuel-efficient, reducing the overall cost of operation and ensuring an affordable energy source for small to medium-scale operations.
Long-Term Savings: With its durability and low maintenance requirements, this generator offers long-term savings, reducing the need for frequent repairs and service.
High ROI: Due to its fuel efficiency and the use of renewable biogas, the generator provides a strong return on investment, making it a smart choice for businesses looking to lower energy costs while adopting sustainable practices.

Frequently Asked Questions (FAQ)

Q: What types of biogas can be used with this generator?

A: The 250KW Deutz Biogas Generator can use various types of biogas, including methane from agricultural waste, landfill gas, and organic waste, offering flexibility in fuel sourcing.

Q: How efficient is the fuel consumption?

A: The generator is designed to be highly efficient, allowing for longer operation with minimal fuel consumption. Specific fuel consumption rates depend on the type of biogas used and the operating conditions.

Q: Can this generator operate in remote areas?

A: Yes, the 250KW Deutz Biogas Generator is well-suited for remote locations, such as off-grid agricultural facilities or industrial plants, where access to the power grid is limited.

Q: What is the maintenance schedule for the generator?

A: Routine maintenance is minimal, but we recommend regular inspections every six months to ensure the generator operates at peak efficiency and to extend its service life.
