160kW Steyr T12 Silent Biogas Generator | High-Efficiency Low-Noise Power Solution

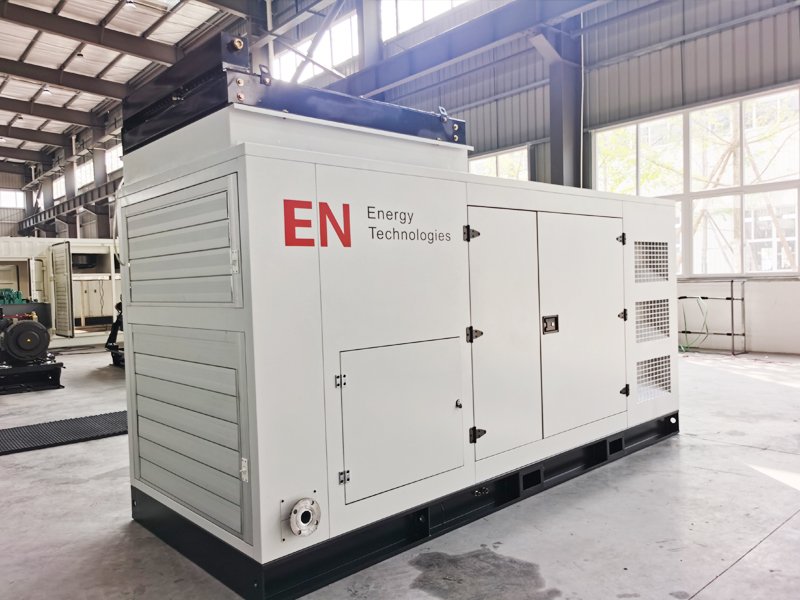

160kw T12 Steyr Biogas Generator silent type

Description

Rated power:160kw;

Rated current:200kVA;

Continuous power:160kw;

Frequency: 50Hz/60Hz;

Voltage: 0.4kV/0.6kV/10.5kV;

Operating noise:95dB(A)/7m;

Methane content:>50%;

Low heat value:Hu ≥ 21.3MJ/Nm;

Reference Weight: 2050kg;

Dimensions (L×W×H): 3280mm×1400mm×2000mm;

Inquiry Now Add to Cart

Description

Product Name:160kw Steyr Biogas generator set power plant

This series of products uses CNHTC-Steyr engines, which is Austrian brand.

All gas engines are designed and developed in conjunction with EN Company according to the use of various combustible gases.

The product power covers 50-1250KW. The product has the advantages of high power per unit, high reliability, low gas consumption, low noise, and strong applicability.

Features of Steyr units:

1.Highly efficient gas engine.

2.AC synchronous alternator. Gas safety train and gas protection device against leakage.

3.With cooler and Temperature Control System to make sure the unit can work normally at 50℃ environment temperature.

4.Strict shop test for all gensets. Industrial silencer with silencing ability of 12-20dB(A).

5.Advanced engine control system: ECI control system including: ignition system, speed control system , protection system，air/fuel ratio control system.

6.Independent electrical control cabinet for remote control.

7.Multi-functional control system with simple operation.

8.Data communication interfaces integrated into control system.

9.Monitoring battery voltage and charging automatically.

Noted:The product can provide special customization services. If you have any needs, please consult us.

Product Parameters:

AC Alternator data		Gas engine data
Generator Brand	Mecca	Engine Brand	CNHTC
Motor Model	ECO40 2S4C	Engine Model	T12
Rated Voltage(V)	400	Engine type	6 cylinders inline, Exhaust turbocharger with water-cooled turbine housing
Rated Power(H class)kW	160	Cylinder Bore x Stroke(mm)	126mm×115mm
Rated Capacity(H class)kVA	200	Displacement (L)	11.6
Motor efficiency (%)/(400V)	92,9	Compression ratio	11
Power factor	0.8	Rated output power (single)	280kW-1500rpm/1800rpm
Connection Methods	D/Y	Maximum lubricant consumption (g/kW.h)	＜0.3
Rotor insulation class	H class	Minimum air intake (kg/h)	1190
Rated temperature rise	F class	Ignition method	Electronically controlled single-cylinder independent high-energyignition
Excitation method	Brush-less	Fuel Control Method	Equivalent combustion, closed loop control
Rotation speed (min- 1)	1500/1800	Debugging method	Electronic governor
Shell protection grade	IP23

Remarks:

1.Engine Control System: ECI (American brand);

2.Throttle: Bosch (German brand);

3.Spark plug: NGK(Japanese brand);

4.Generator master controller: Comap (Czech brand); DEIF(Danish brand); DSE(England brnad);

5.Altermator: Mecca (Italian brand); Stamford (American brand); Leroy Somer (French brand);

6.Starting mode: electric start;

7.Overhaul period: 36000h~60000h;

8.Generator type: pure copper brushless, automatic voltage regulation;

9.Operation mode: grid-connected/parallel/isolated/automatic control, etc;
