Key Features
Shangchai Natural Gas Engine Technology
Built on Shangchai’s trusted gas engine platform, optimized for natural gas, ensuring high performance and long-lasting durability.
Offers lean-burn technology, resulting in reduced emissions and improved fuel efficiency.
The engine is equipped with advanced electronic controls for seamless performance and reduced operational costs.
Cleaner & More Cost-Effective Fuel
Natural gas burns cleaner than diesel, leading to lower CO₂ and NOx emissions.
Using natural gas results in lower fuel costs, making it a cost-effective solution for large facilities.
Meets global emission standards, including EU Stage V and China GB emissions requirements.
High Output Capacity (1000 kW)
Ideal for industrial power generation, commercial buildings, data centers, and backup power.
Offers continuous and stable 3-phase power at 400 V / 50 Hz (or 60 Hz optional).
Provides reliable power during grid outages, reducing operational downtime and protecting critical equipment.
Modular Design for Easy Installation

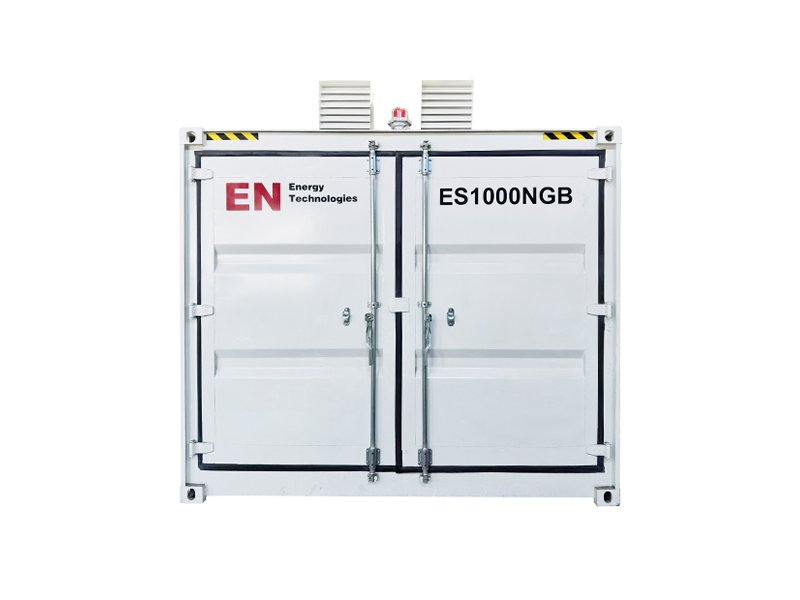

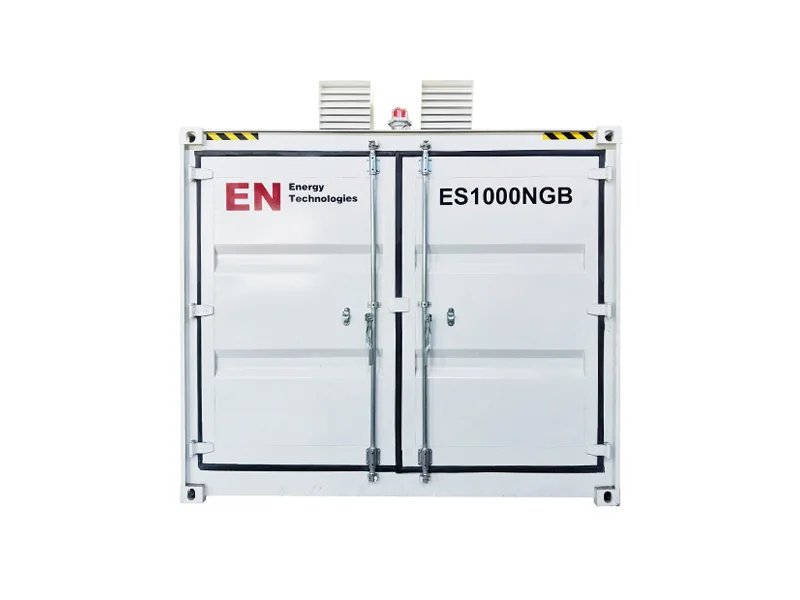

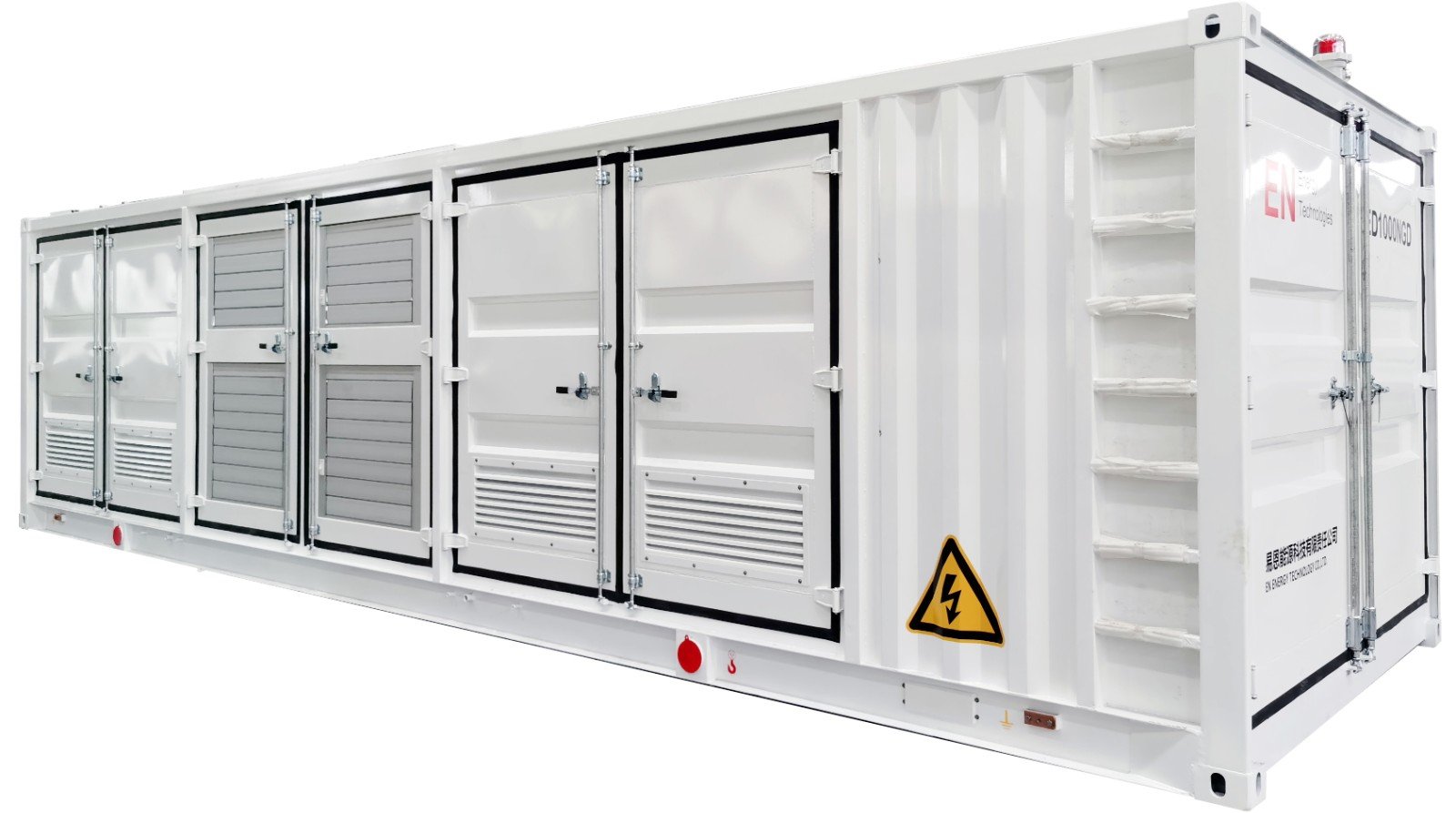

Containerized or open canopy design options for flexible installation in both indoor and outdoor environments.
The modular design allows for rapid installation and easy transport, particularly in remote areas or hard-to-access locations.
Outdoor installation options come with weatherproof and sound-insulated enclosures to protect the unit in harsh environments.
Smart Control & Remote Monitoring
Equipped with SmartGen, ComAp, or DeepSea controllers, providing real-time system monitoring, fault detection, and performance optimization.
Remote access allows for data transmission, enabling real-time alerts for maintenance, performance analytics, and fuel consumption.
Features automatic startup and shutdown for energy efficiency and reduced operational costs.
Applications
Industrial Power Generation — Provides continuous, stable power for factories, manufacturing plants, and production lines.
Commercial & Residential — Supplies backup power for office buildings, hotels, hospitals, and large residential complexes.
Data Centers — Ensures critical operations run smoothly by offering reliable, uninterrupted power.
Microgrids & Distributed Energy Systems — Ideal for remote or off-grid applications, offering energy independence and efficiency.
Emergency Power Supply — Guarantees reliable power during power outages, ensuring the safety and operation of essential systems.
Features of Shangchai units:
1.Highly efficient gas engine.
2.AC synchronous alternator. Gas safety train and gas protection device against leakage.
3.With cooler and Temperature Control System to make sure the unit can work normally at 50℃ environment temperature.
4.Strict shop test for all gensets. Industrial silencer with silencing ability of 12-20dB(A).
5.Advanced engine control system: ECI control system including: ignition system, speed control system , protection system，air/fuel ratio control system.
6.Independent electrical control cabinet for remote control.
7.Multi-functional control system with simple operation.
8.Data communication interfaces integrated into control system.
9.Monitoring battery voltage and charging automatically.
Noted:The product can provide special customization services. If you have any needs, please consult us.
| Item | Details |
| Rated Power | 1000kW |
| Rated Current | 1125kVA |
| Continuous Power | 800kW |
| Frequency | 50/60Hz |
| Voltage | 0.4kV/0.6kV/10.5kV |
| Operating Noise | 95dB(A)/7m |
| Methane Content | >85% |
| Low Heat Value | Hu ≥ 31.4MJ/Nm |
| Weight | 18000kg |
| Dimensions (L×W×H) | 10000mm×3000mm×3000mm |
Remarks:
1.Engine Control System: ECI (American brand);
2.Throttle: Bosch (German brand);
3.Spark plug: NGK(Japanese brand);
4.Generator master controller: Comap (Czech brand); DEIF(Danish brand); DSE(England brnad);
5.Altermator: Mecca (Italian brand); Stamford (American brand); Leroy Somer (French brand);
6.Starting mode: electric start;
7.Overhaul period: 36000h~60000h;
8.Generator type: pure copper brushless, automatic voltage regulation;
9.Operation mode: grid-connected/parallel/isolated/automatic control, etc;
Frequently Asked Questions (FAQ)
Q1: Can this unit be used outdoors?
A1: Yes, the Shangchai 1000 kW generator can be installed outdoors with a weatherproof and sound-insulated enclosure option.
Q2: Is the generator compliant with international emission standards?
A2: Yes, the Shangchai generator meets EU Stage V and China GB emissions standards, ensuring low environmental impact.
Q3: Can I monitor the generator remotely?
A3: Yes, the generator is equipped with smart controllers that enable remote monitoring, real-time data transmission, and fault alerts.
Q4: What are the advantages of using natural gas over diesel?
A4: Natural gas offers lower CO₂ emissions, cost-effective fuel, and longer service intervals, compared to traditional diesel generators.
