Key Features
Power Output: 500kW
Fuel Type: Biogas (renewable energy source)
Efficiency: Optimized fuel consumption for reduced operating costs
Emission Reduction: Low carbon emissions for eco-friendly power generation

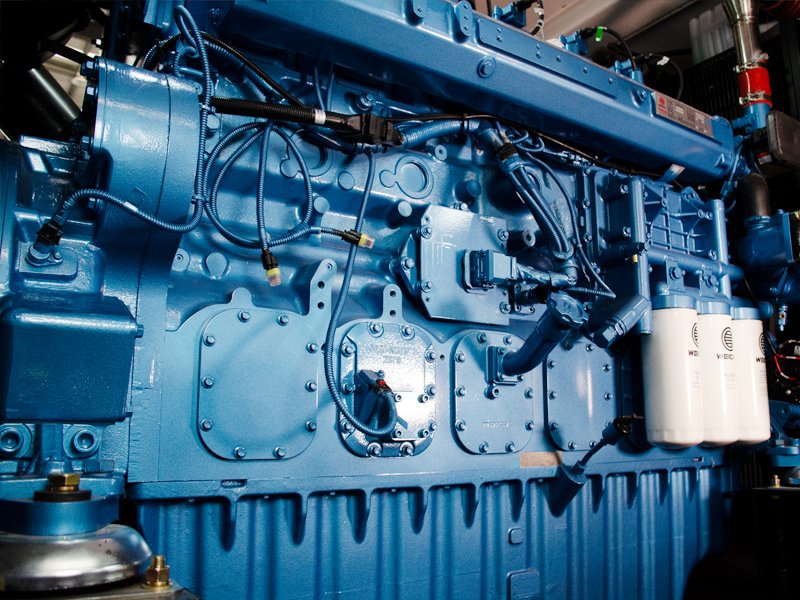

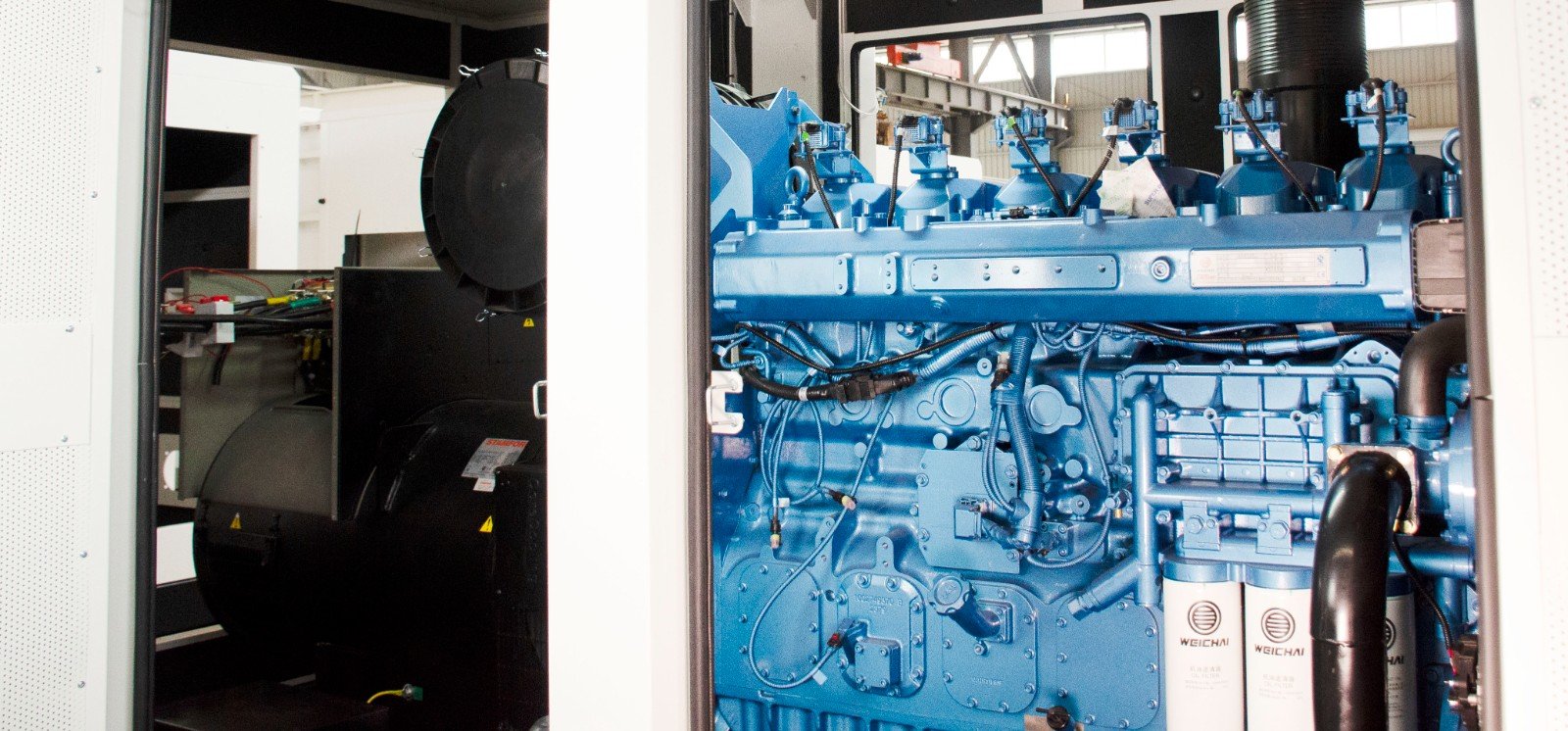

Engine: Powered by Weichai Baudouin's advanced engine technology, ensuring long-term durability and reduced maintenance
Features of Weichai units
1. High-efficiency gas engine;
2. AC synchronous generator;
3. Safety gas valve group, optional gas leakage protection device;
4. Cooling system suitable for ambient temperature up to 50℃;
5. Strict factory testing for all generator sets;
6. The muffler adopts an industrial muffler with a noise reduction capacity of 12-20dB (A);
7. Advanced engine control system: ECI control system includes: ignition system, detonation control system, speed control system, protection system, air-fuel ratio control system and cylinder temperature;
8. Equipped with cooler and temperature control system to ensure the normal operation of the unit at an ambient temperature of 50℃;
9. Independent electrical control cabinet, remote monitoring system can be configured;
10. Multi-function control system, simple operation;
11. Data communication interface integrated in the control system to meet data acquisition;
12. Monitor battery voltage and charge automatically.
Noted:The product can provide special customization services. If you have any needs, please consult the manufacturer;
Product Parameters
AC Alternator data | Gas engine data |
Generator Brand | Mecc Alte | Engine Brand | Baudouin |
Motor Model | ECO40-1.5L4B | Engine Model | 12M26D690 |
Rated Voltage(V) | 400 | Engine type | V-12Cylinder-Turbocharged |
Rated Power(H class)kW | 500 | Cylinder Bore x Stroke(mm) | 150mm×150mm |
Rated Capacity(H class)kVA | 625 | Displacement (L) | 31.8 |
Motor efficiency (%)/(400V) | 96.8% | Compression ratio | 11 |
Power factor | 0.8 | Rated output power (single) | 690kW/1500rpm |
Connection Methods | D/Y | Maximum lubricant consumption (g/kW.h) | ＜0.3 |
Rotor insulation class | H class | Minimum air intake (kg/h) | 3012 |
Rated temperature rise | F class | Ignition method | O-Electronically controlled single-cylinder independent high-energy ignition |
Excitation method | Brush-less | Fuel Control Method | Equivalent combustion, closed loop control |
Rotation speed (min- 1) | 1500 | Debugging method | Electronic commissioning |
Shell protection grade | IP23 | Cooling method | Forced water cooling |
Why Choose the Weichai Baudouin 500kW Biogas Generator?
Reliable Performance: Proven track record in various industries for dependable and consistent energy production.
Environmentally Friendly: Help your business or community reduce its environmental impact with sustainable energy solutions.
Cost-Effective: Maximize energy production while minimizing operating and maintenance costs.
Applications
Agricultural Operations: Power for farms using waste to generate energy.
Municipal Waste Treatment: Ideal for waste-to-energy facilities.
Industrial Plants: Generate electricity for factories or manufacturing units.
Remarks
1.Engine Control System: ECI (American brand);
2.Throttle: Bosch (German brand);
3.Spark plug: NGK(Japanese brand);
4.Generator master controller: Comap (Czech brand); DEIF(Danish brand); DSE(England brnad);
5.Starting mode: electric start;
6.Overhaul period: 30000h;
7.Generator type: pure copper brushless, automatic voltage regulation;
8.Operation mode: grid-connected/parallel/isolated/automatic control, etc;
