Key Features of the 750 kW Steyr T12 Parallel Natural Gas Generator

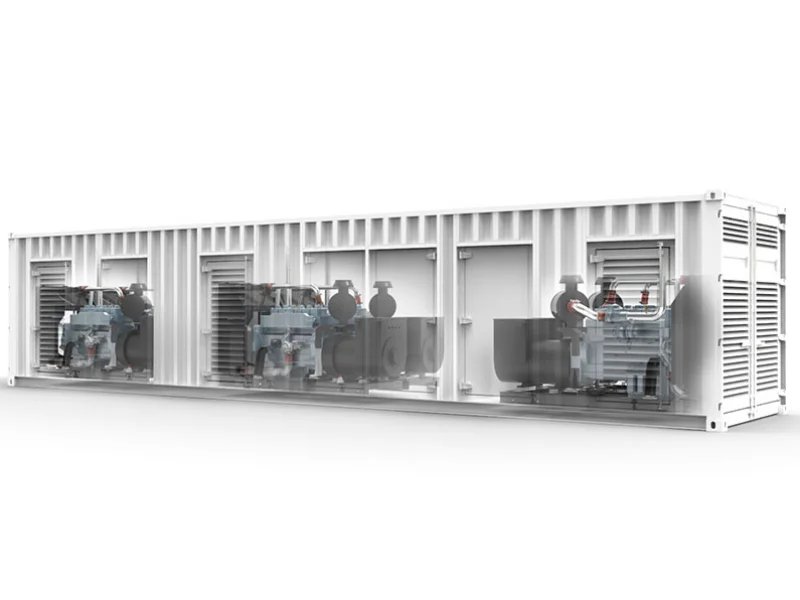

Parallel configuration (3× units): Three identical generator units running in parallel to allow load sharing, redundancy, and flexible capacity up to ~2 200 kW (depending on configuration).
Rated power per unit approx. 250 kW (×3) or a combined figure of ~750 kW for prime power mode. Example spec for T12 ×3 shows 750 kW/937.5 kVA at 1500 rpm.

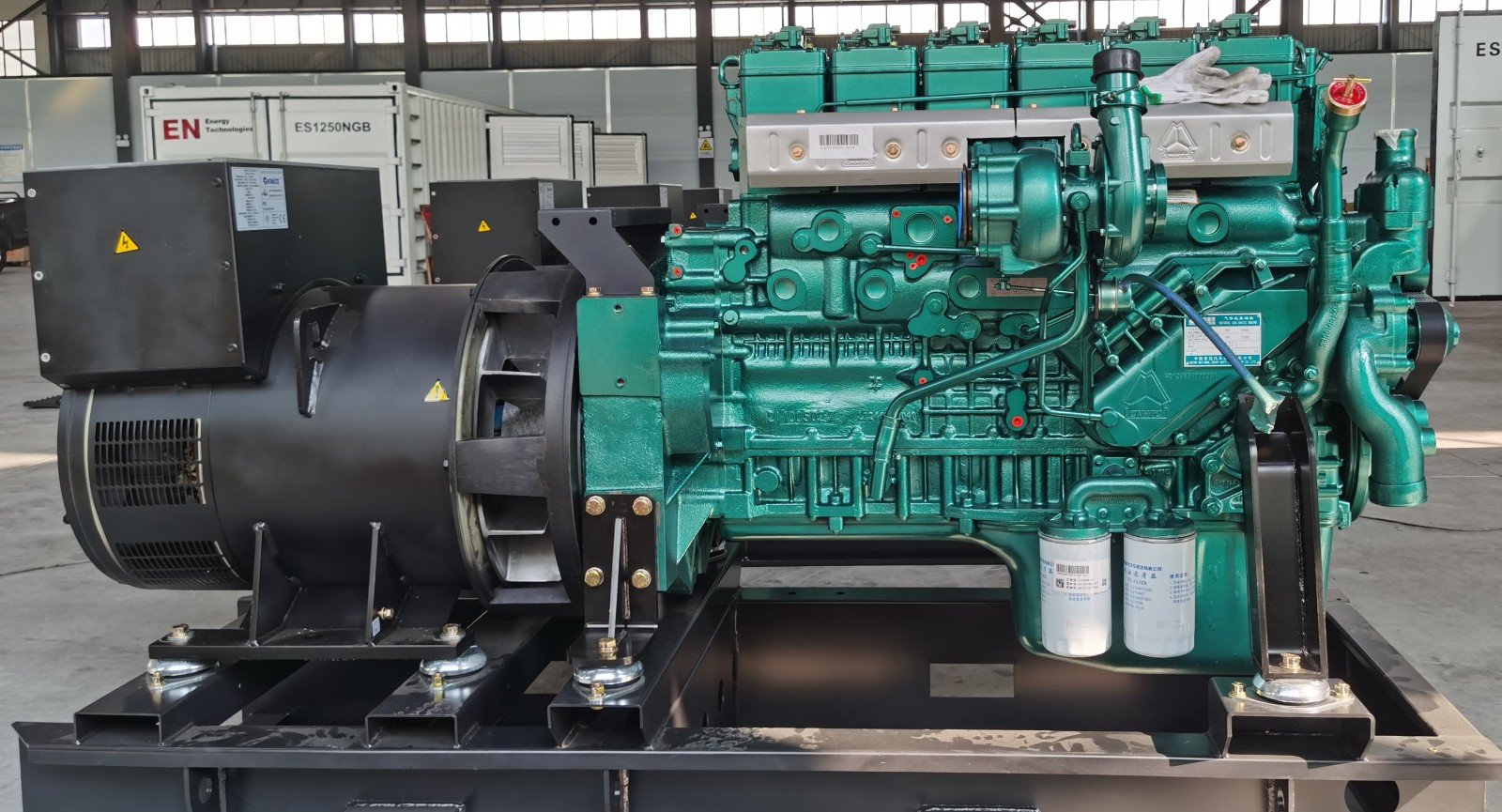

Engine model Steyr T12: Recognised for lean‑burn and turbocharged natural gas performance.
Fuel type: Natural Gas: Offers lower emissions, cleaner combustion, and often lower fuel cost than diesel gensets.
High reliability & scalability: Parallel setup allows one unit to be taken offline for maintenance while others continue supplying load, enhancing uptime.
Industrial‑grade alternator & control system: Suitable for 50 Hz/60 Hz operation, custom voltages, and designed for heavy‑duty use.
Eco‑friendly & future‑proof: Natural gas genset is a strong transitional solution for lower‑carbon power systems.
Applications of the 750 kW Steyr T12 Parallel Generator
Large‑scale industrial plants: Manufacturing, processing, mining sites where reliable continuous or backup power is critical.
Commercial complexes / data centres / mixed‑use buildings: Where high reliability, redundancy and flexible capacity are needed.
Oil & gas / remote installations / microgrid systems: Where natural gas (or associated gas) is available and multiple units in parallel provide adaptability.
Combined heat & power (CHP) or distributed generation: With natural gas fuel and parallel modules, suitable for cogeneration or island‑mode operations.
Green transition projects: Businesses looking to reduce emissions and move from diesel to cleaner fuel systems.
Why Choose the Steyr T12 Solution ?
Proven Natural Gas Engine Platform: The Steyr T12 series is widely adopted for natural gas generator sets, boasting demonstrated reliability and extensive real-world market application experience.
Flexible Parallel Architecture: Features a modular parallel design that allows for scalable capacity, simplifies maintenance, and enables service continuity during upkeep.
Exceptional Fuel Economy: Utilizes sophisticated techniques like optimized gas injection and closed-loop control to maximize fuel efficiency, thereby significantly reducing operating costs.
Adaptable to Complex Environments: Ideal for deployment in challenging locations such as oil and gas fields, remote areas, factory settings, or for use as dependable standby or primary power.
High Customization Capability: Offers extensive configuration options, including open-set frames, silent/soundproof enclosures, customized parallel control systems, and integrated remote monitoring solutions.
Parameters
Gas Data |
Fuel |
| Natural gas [1] |
Gas intake pressure |
| 3.5Kpa~650Kpa (configure according to project requirements) |
Methane volume content |
| ≥85% |
Low hear value (LHV) |
| Hu≥31.4MJ/Nm3 |
Gas consumption per hour | at 50% load | 156 m3 |
| at 75% load | 220 m3 |
| at 100% load | 292 m3 |
[1] After the Natural gas components need to be provided by users, the relevant data of the technical manual will be revised. Gas hoses are ECER1 10 approved. Components in the gas train meet directive 90/356/EWG. |
Installation, Operation, and Maintenance Guidelines
Installation Recommendations
Foundation & Cooling: Establish a solid, stable foundation for each unit, ensuring appropriate ventilation and heat dissipation for the entire system.
Gas & Power Systems: Verify a compliant and reliable gas supply system, and install suitable electrical cabling and protection systems.
Synchronization Equipment: Install and verify the synchronous parallel control equipment necessary for multi-unit operation.
Parallel System Commissioning
Integrated Testing: Ensure all three (or more) units are properly configured via the control system to perform synchronized startup, precise load sharing, seamless parallel switching, and integrated protection functionality.
Load Scenarios: Conduct thorough testing across various load scenarios, including load shedding and restoration, to confirm system stability and response.
Routine Maintenance
System Checks: Regularly inspect the gas supply system, filters, coolant, lubricating oil, and continuously monitor vibration and temperature across all units.
Control Integrity: Routinely check the status of the control panels and verify the function of the synchronization and parallel system components.
Spare Parts and Service Assurance
Critical Spares: Maintain an inventory of critical replacement parts such as gas valves, control modules, synchronization boards, and routine filters.
Maintenance Contract: Enter into an annual maintenance and service agreement with the supplier to ensure long-term stability and significantly reduce the risk of unplanned downtime.
Safety and Environmental Considerations
Gas Safety: Ensure the gas piping system is explosion-proof and leak-free, and that the exhaust system meets necessary standards.
Compliance: Equip the facility with noise reduction/dampening infrastructure and verify that all emissions comply with local regulatory standards.
Ready to scale your power infrastructure with a robust natural gas genset solution?
Contact us today to explore the 750 kW Steyr T12 Natural Gas Generator – 3 Units in Parallel. We’ll assist you with customised configuration, installation & commissioning support, pricing details, and long‑term service options. Let’s design a high‑performance, low‑emission solution tailored to your operational needs and site conditions.
