The engine control system and generator set control system are two critical control systems in a gas generator set. Although both systems work together to ensure reliable operation, they have different control objectives and responsibilities.
The engine control system focuses on managing engine performance, combustion efficiency, and operating stability, while the generator set control system manages the entire power generation system, including electrical output, protection functions, grid connection, and automatic operation.
Understanding the difference between these two systems is essential for selecting, operating, and maintaining natural gas generators, biogas generator sets, and CHP power generation systems.
The engine control system is responsible for controlling and monitoring the internal combustion engine. Its primary goal is to ensure that the gas engine operates efficiently, safely, and reliably.
Simply put:
Engine Control System = Controls the engine
The engine control system manages key engine operating conditions, including:
l Ignition control
l Fuel gas supply control
l Air-fuel ratio adjustment
l Engine speed control
l Engine start and stop control
For gas engines, accurate control of fuel supply and air-fuel ratio is especially important because it directly affects combustion efficiency, fuel consumption, emissions, and engine performance.
The engine control unit (ECU) continuously monitors important engine parameters, including:
l Coolant temperature
l Lubricating oil pressure
l Engine speed
l Exhaust temperature
l Knock detection
l Gas pressure
By collecting real-time data from sensors, the ECU can adjust engine operation and maintain optimal performance.
When abnormal operating conditions occur, the engine control system provides warning and protection functions.
Typical protection conditions include:
l High coolant temperature
l Low oil pressure
l Overspeed
l Severe knocking
Depending on the severity of the fault, the system can issue alarms or automatically shut down the engine to prevent major damage.
The main components include:
l ECU (Engine Control Unit)
l Sensors
l Actuators
l Ignition system
l Speed governor system
These components work together to achieve precise engine control.

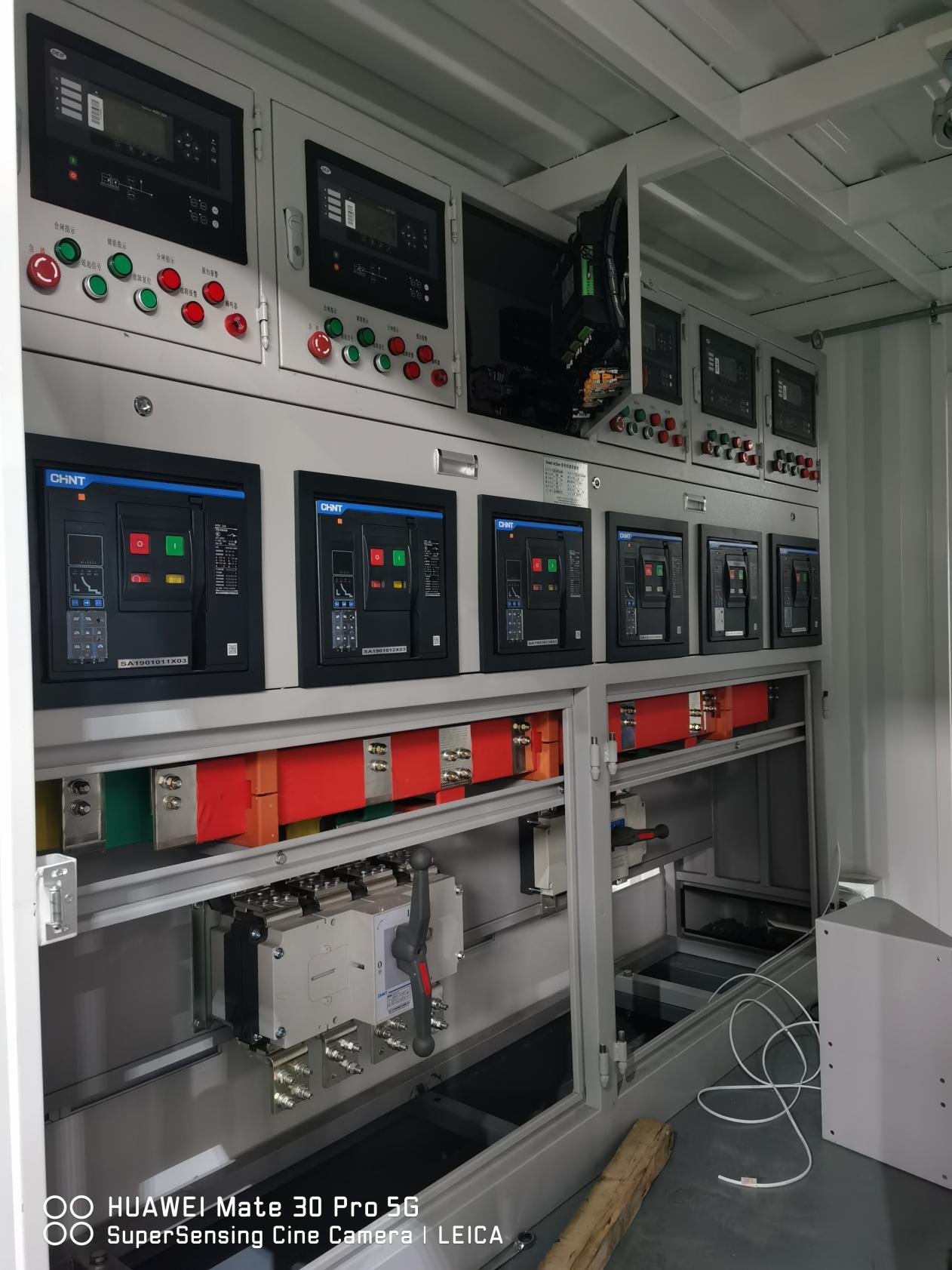

The generator set control system controls the operation of the entire gas generator set, not only the engine.
It manages engine operation, generator output, electrical protection, and interaction with the power system.
Simply put:
Generator Set Control System = Controls the complete generator system
The generator controller monitors and manages electrical output parameters, including:
l Voltage
l Frequency
l Current
l Power output
l Power factor
Maintaining stable electrical parameters ensures that connected loads receive reliable power.

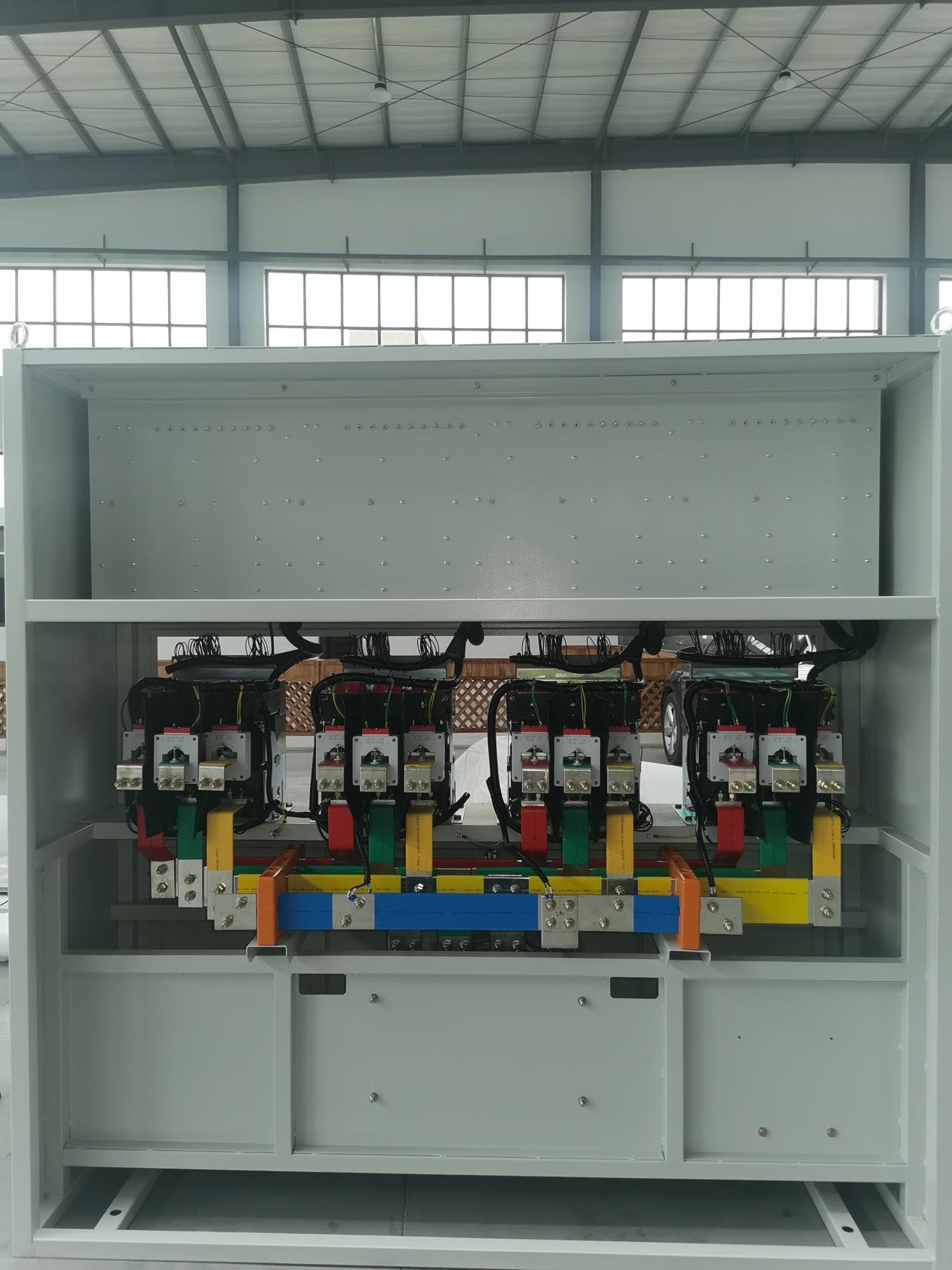

The generator set control system provides comprehensive electrical protection, including:
l Overload protection
l Short circuit protection
l Under-voltage protection
l Over-voltage protection
l Phase loss protection
These functions protect both the generator equipment and connected electrical systems.
Modern generator control systems support advanced automation functions, such as:
l Automatic start and stop
l ATS (Automatic Transfer Switch) control
l Generator paralleling control
l Grid synchronization
l Remote monitoring
For distributed energy projects and CHP systems, these functions are essential for stable and intelligent operation.

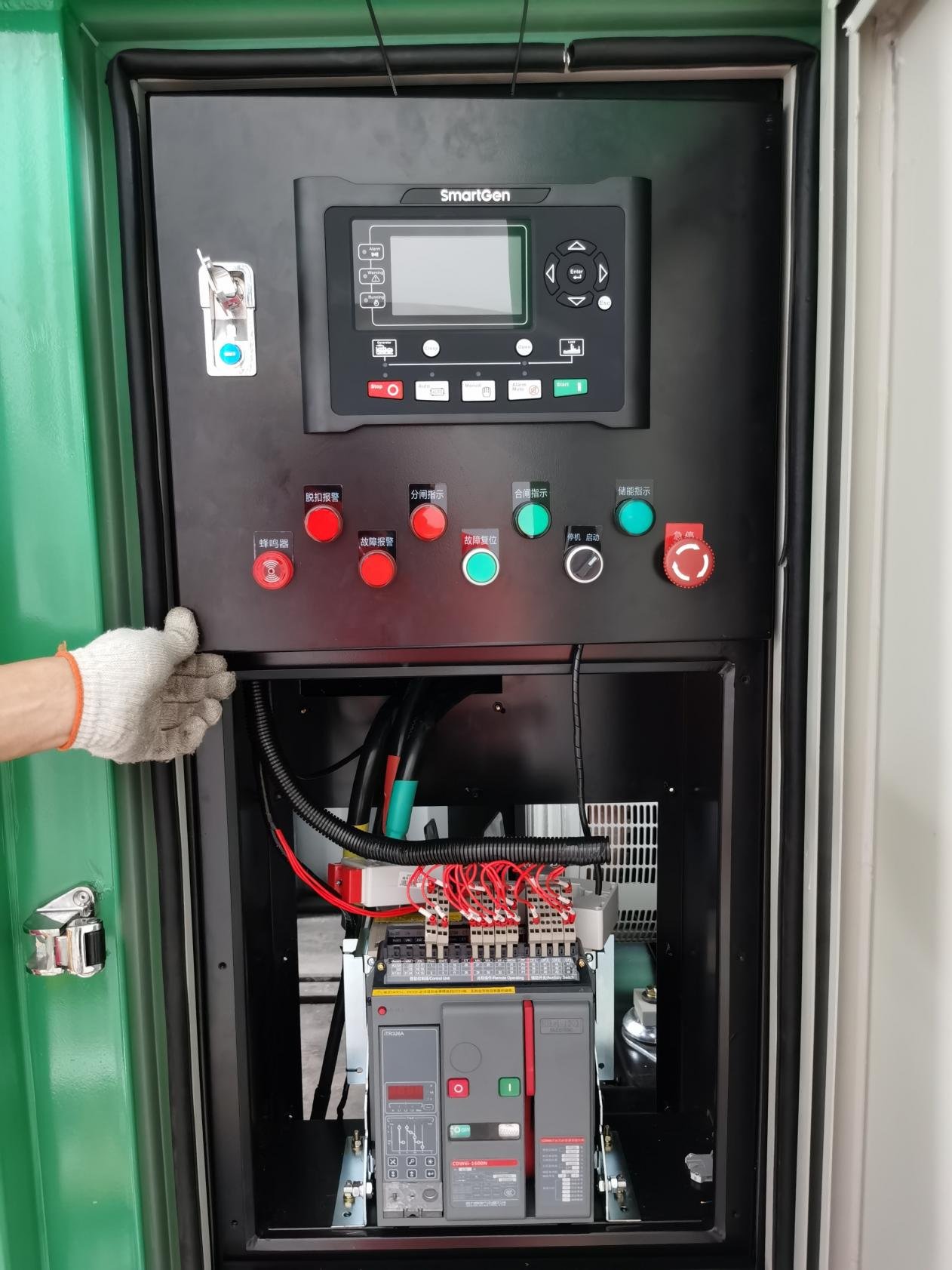

The HMI control panel allows operators to monitor and control the generator set.
Typical functions include:
l Start/stop buttons
l Operating parameter display
l Alarm history records
l Operating data storage
The HMI provides a user-friendly interface between operators and the generator control system.
Comparison | Engine Control System | Generator Set Control System |
Control target | Engine | Complete generator set |
Main purpose | Ensure stable combustion and engine operation | Ensure stable power generation |
Main focus | Speed, combustion, temperature | Voltage, frequency, load management |
Core unit | ECU | Control panel / PLC / Generator controller |
Electrical grid interaction | Usually not involved | Frequently involved |
Parallel operation control | Not responsible | Responsible |
Assume a natural gas generator is operating normally.
The engine control system manages:
l How much natural gas enters the engine
l Ignition timing
l Engine speed stability
l Coolant temperature monitoring
l Combustion condition
Its main question is:
"How can the engine run efficiently and reliably?"
The generator set control system manages:
l Whether output voltage is stable
l Whether frequency meets requirements
l Whether the generator needs to synchronize with another unit
l Whether the system should switch from grid power
l Whether remote alarms should be activated
Its main question is:
"How can the entire power generation system supply electricity safely and continuously?"
The engine control system and generator set control system have different responsibilities but work together as an integrated control platform.
The engine control system focuses on:
How to keep the engine running efficiently and stably.
The generator set control system focuses on:
How to ensure the complete generator system delivers safe and reliable power.
For modern gas generator sets, especially in natural gas power generation, biogas power generation, and CHP projects, advanced control systems are essential for improving efficiency, reducing downtime, and achieving intelligent operation.
EN Energy Technologies provide professional gas generator set solutions, including advanced engine control systems, generator control systems, and customized CHP power generation solutions for industrial and commercial applications.
With reliable control technology, optimized system integration, and professional technical support, we help customers achieve stable, efficient, and intelligent energy generation.
If you are planning a gas power generation project or looking for a reliable gas generator manufacturer, please contact our engineering team for technical consultation and customized solutions.
”
